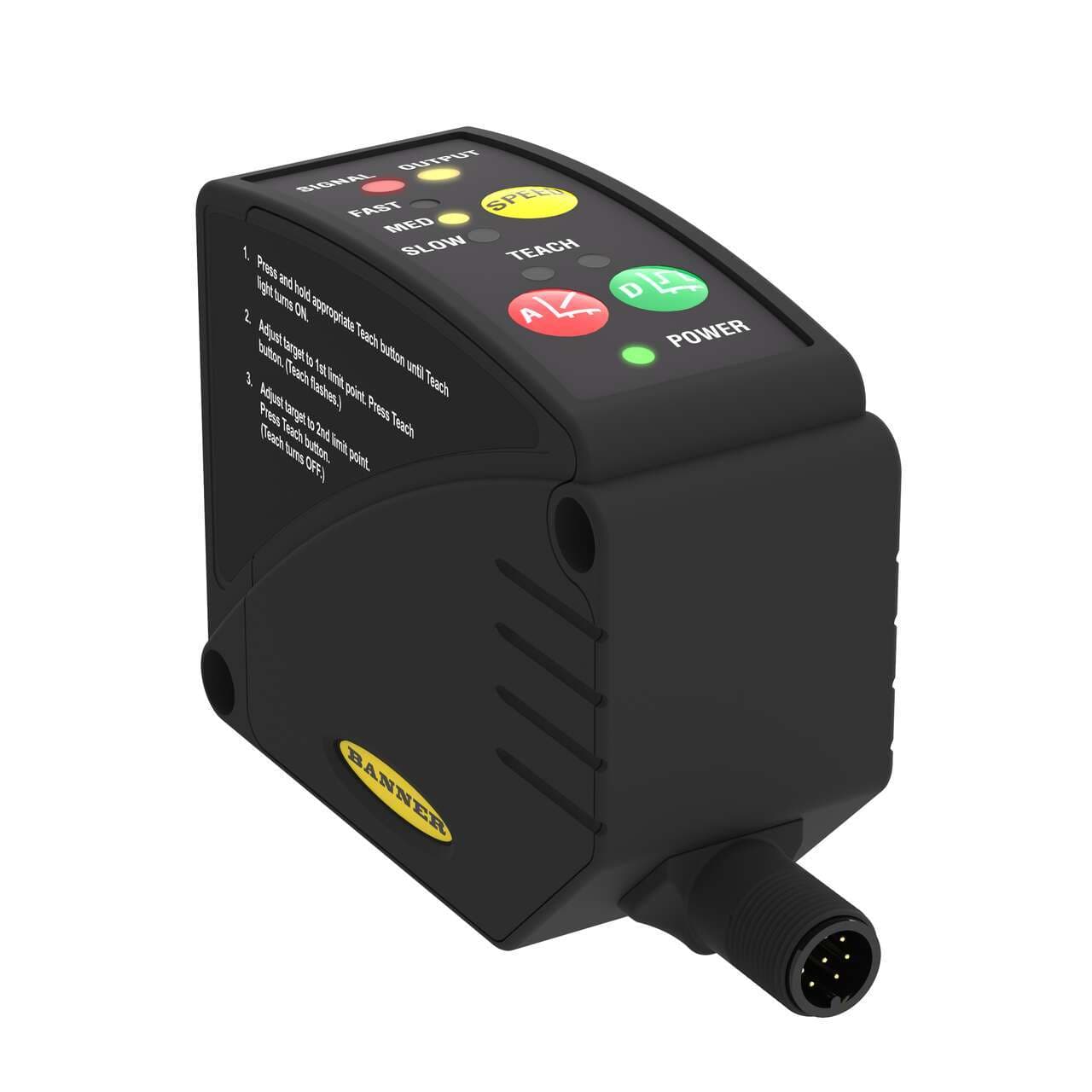

LT3NILVQ Banner Optical Sensors

Product Details

• Weight
  308.44256 g
• Country Of Origin
  US
• RS-422
  No
• 1-wire Serial Interface
  No
• SSI
  No
• Profibus
  No
• Wireless
  No
• RS-485
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Timing (Hold/Delay)
  No
• Common Ethernet Protocol
  No
• Feature: Remote Teach
  Yes
• PROFINET
  No
• Power/Current Consumption (exclusive of load)
  108 mA max @ 24 V dc
• IO Link
  No
• RS-232
  No
• Feature: Chemical Resistant
  No
• Laser Control
  Yes
• Max Ambient Light (Lux)
  5000
• Max Off-state Leakage Current (µA)
  5
Minimum Window Size (mm)
40
Discrete Output Hysteresis (mm)
6
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Warm-up Time (minutes)
30
NEMA Rating
NEMA 6
Window Material
Acrylic
Spot Size (@ Reference Distance)
6 mm
Minimum Response Time (ms)
1
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Max Operating Temperature (°C)
50
IP Rating
IP67
Discrete (Switched) Outputs
1 NPN
Sensing Beam Wavelength (nm)
658
Adjustments
Push Button; Remote Teach
Number of Pins
8
Delay at Power-up (ms)
1000
Temperature Effect (mm/°C)
3 mm/°C
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Minimum Sensing Distance (mm)
500
Power Supply
12-24 V dc
Analog Resolution/Discrete Repeatability
5 to 6 at slow response speed
Max Sensing Distance (mm)
50000
Sensing Beam
Visible Red Laser
Connection
Integral QD
Input/Output
Analog & Discrete
Quick Disconnect Type
M12 (Euro)
Indicator
LED(s)
Power
DC
Sensing Mode (Detailed)
Time of Flight
Laser Classification
Class 1
PC Configurable
No
Housing Style
Rectangular
Typical Laser Lifetime (Hours)
75000
Analog Linearity (mm)
+/- 60 mm from 0.5 to 50 m
Output Protection
Protected against short circuit conditions
Max Discrete (Switched) Output (mA)
100
Analog Output Configuration
4-20 mA
Sensing Mode (General)
Retroreflective
Max Measurement Range
>20 m
Primary Housing Material
ABS
Device Type
Sensor
Product series / family name
L-GAGE series
Supply voltage (DC)
12Vdc-24Vdc
Wavelength
658 nm
Shape
Rectangular
Ambient air temperature for operation
+50 °C
Sub-range name
L3 Retro Time-of-Flight
Sensing distance
50cm...50m
Degree of protection
IP67 NEMA 6
Primary brand
Banner Engineering
Design
retro-reflective time-of-flight system
Connection type
Pre-equipped with 8-pin Euro-style M12 connector
Protection functions
Short-circuit
Main function
Sensor (Distance)
Functions
Class 1 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
Digital outputs
1 x digital output (NPN transistor)
Analog outputs
1 x analog output (4-20mA)
Order code / Manufacturer SKU
67283
Light Color
Visible red
Material
ABS housing Acrylic window
