LEDWA80X80M Banner Vision Accessories

Banner LEDWA80X80M PresencePLUS 80 x 80 mm Area Light; Visible White LED 24 V dc; 2 m (6.5 ft) cable with 3-pin male Connector; Connects to P4
Banner

Part#:LEDWA80X80M

Manufacturer:Banner

Alt. Part#:72269

Product Lifecycle:Active

Get a quick Quote!

PresencePLUS 80 x 80 mm Area Light; Visible White LED 24 V dc; 2 m (6.5 ft) cable with 3-pin male Connector; Connects to P4

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWA80X80M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    362.8736 g
  • Country Of Origin
    MX
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V dc
  • Physical Dimensions (LxWxH or DxH mm)
    92.6 x 110.4 x 25.4
  • Number of Input Pins/Conductors
    3
  • Feature: Quick Disconnect
    Yes
  • Max Current Color (mA)
    250
  • QD Type/Cable Length
    2 m; M8 (Pico)
  • Window Material
    Acrylic
  • Connection Type
    Pigtail QD
  • Housing Style
    Rectangular
  • Color
    White
  • Device Type
    Area Light
  • Primary Housing Material
    Low-Carbon Steel
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWA80X80M Description

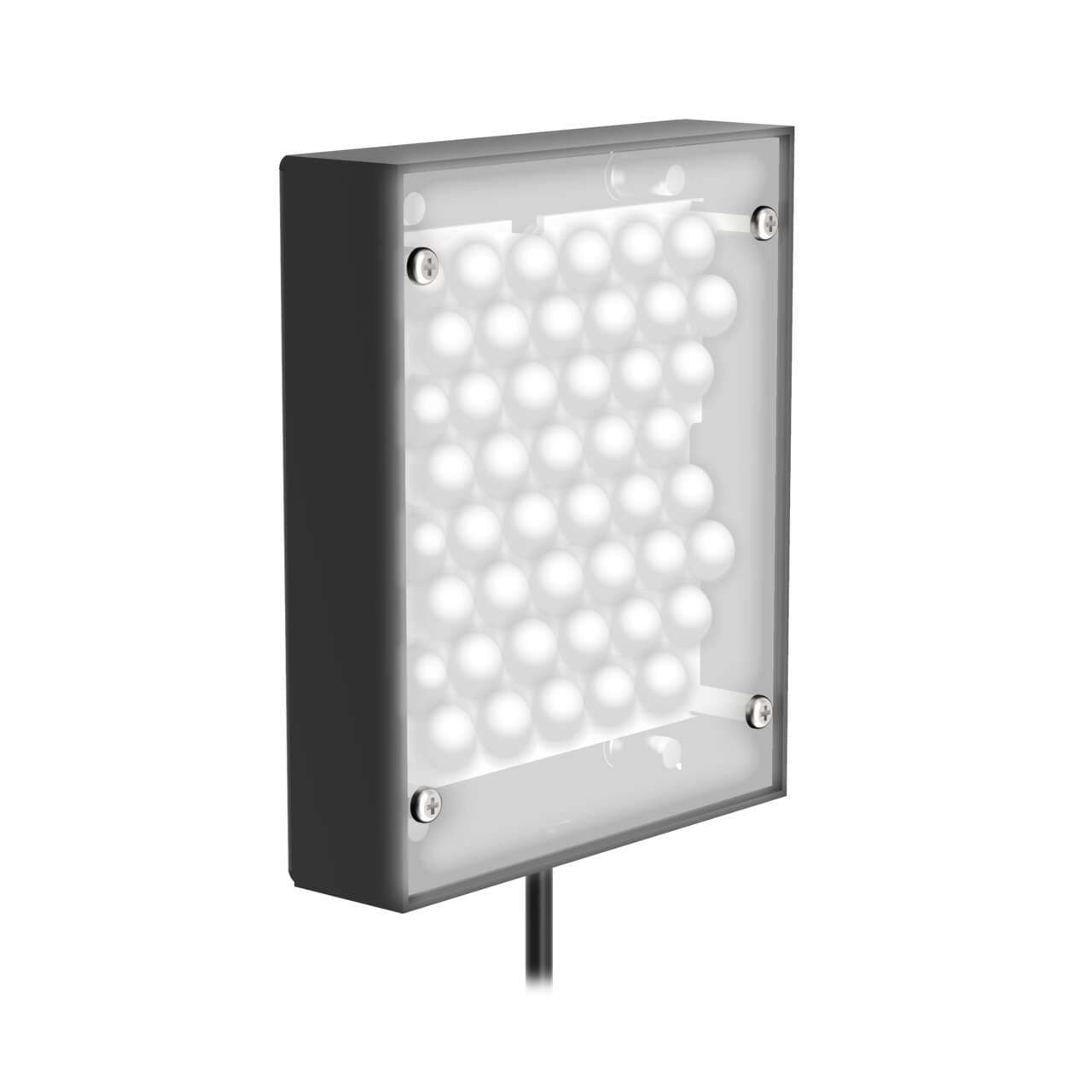

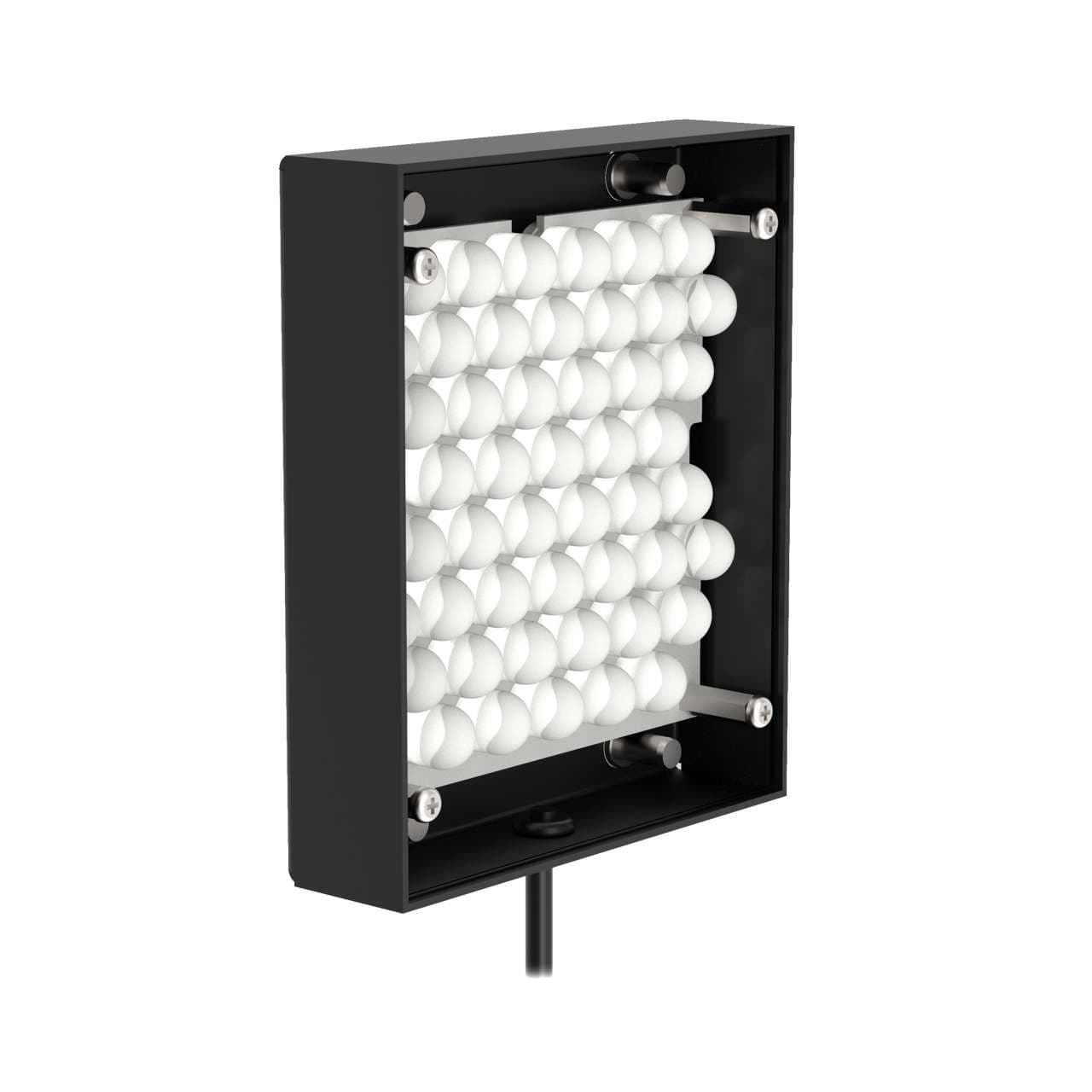

Banner Engineering LEDWA80X80M is an illumination unit designed for area lighting applications. It features a square shape with dimensions of 80x80mm and produces visible white light. The construction includes a low-carbon steel housing and an acrylic window for durability and clear light transmission. This unit is pre-wired with a 6-foot (approximately 2 meters) pigtail that terminates in a 3-pin Pico-style M8 connector for easy installation. It operates on a 24Vdc supply voltage, making it suitable for a wide range of industrial automation lighting tasks.

Related documents LEDWA80X80M Specs

LEDWA80X80M 116949.pdf
