LEDWA70XD5-PQ Banner Vision Accessories

LEDWA70XD5-PQ on Powermatic Associates
Banner

Part#:LEDWA70XD5-PQ

Manufacturer:Banner

Alt. Part#:16051

Product Lifecycle:Active

Get a quick Quote!

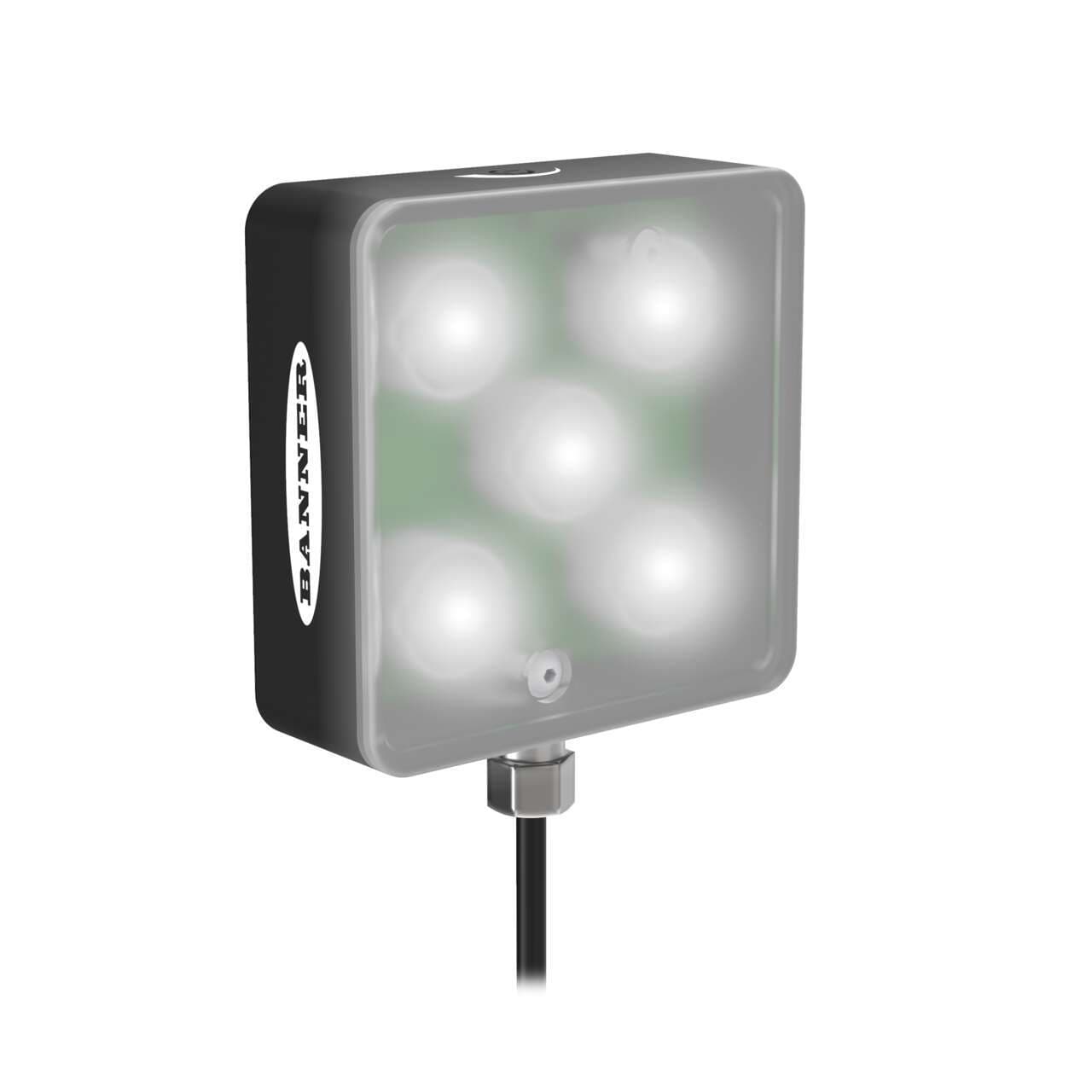

Vision Light - 70 mm Area with Potentiometer; 5 High Intensity White LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWA70XD5-PQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    27.669112 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • Max Current Color (mA)
    500
  • Supply Voltage
    24 V DC
  • Color Technology
    Standard LED
  • Window Material
    Diffuse Acrylic
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Primary Housing Material
    Low-Carbon Steel
  • Connection Type
    Integral QD
  • Power
    DC
  • Intensity Adjustment
    Potentiometer
  • Housing Style
    Rectangular
  • Device Type
    Area Light
  • Color
    White

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWA70XD5-PQ Description

Banner Engineering LEDWA70XD5-PQ is an illumination unit designed for area lighting applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer to achieve high-intensity visible white light. The unit has a square shape with dimensions of 70x70mm and is constructed from low-carbon steel housing with a diffused acrylic window. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector. The LEDWA70XD5-PQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50.

Related documents LEDWA70XD5-PQ Specs

LEDWA70XD5-PQ 153956.pdf
