LEDWLA290XD6-PHQ Banner Vision Accessories

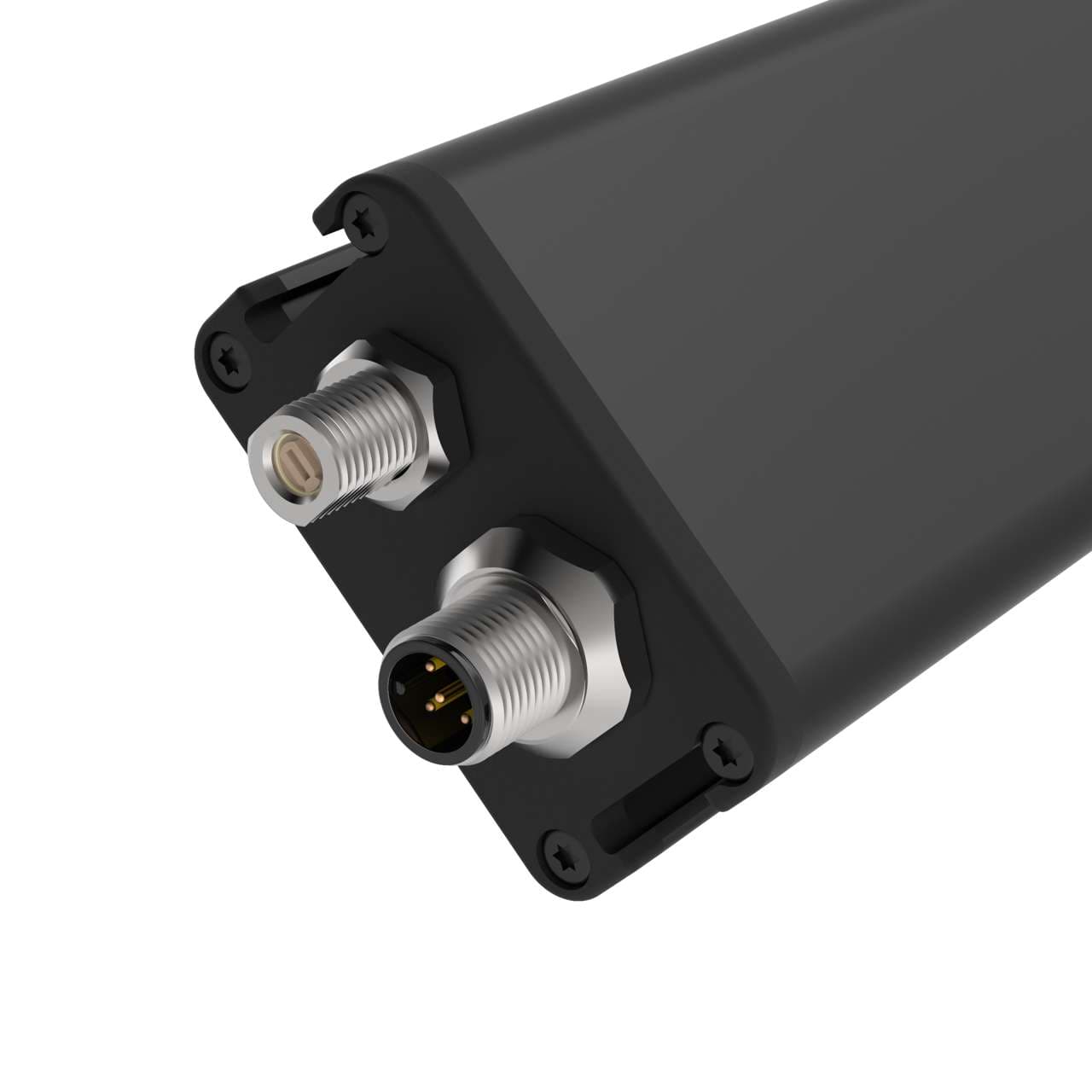

LEDWLA290XD6-PHQ on Powermatic Associates
Banner

Part#:LEDWLA290XD6-PHQ

Manufacturer:Banner

Alt. Part#:81800

Product Lifecycle:Active

Get a quick Quote!

LINEAR ARRAY WHITE ACRYLIC 1 FT DIMMABLE ACT. HIGH

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA290XD6-PHQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    807.39376 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    1000
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    50
  • Power
    DC
  • Window Material
    Acrylic
  • Color
    White
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Connection Type
    Integral QD
  • Intensity Adjustment
    Potentiometer and Analog
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Linear Strip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA290XD6-PHQ Description

Banner Engineering LEDWLA290XD6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer or analog input, and delivers high-intensity visible white light. The unit measures 290mm in array length and is housed in a black anodized aluminum casing with a diffused acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDWLA290XD6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. For control, it includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.

Related documents LEDWLA290XD6-PHQ Specs

LEDWLA290XD6-PHQ 150944.pdf

Manufacturer warranty

$1,076.00
