LE250U

Banner

Product Lifecycle: Active

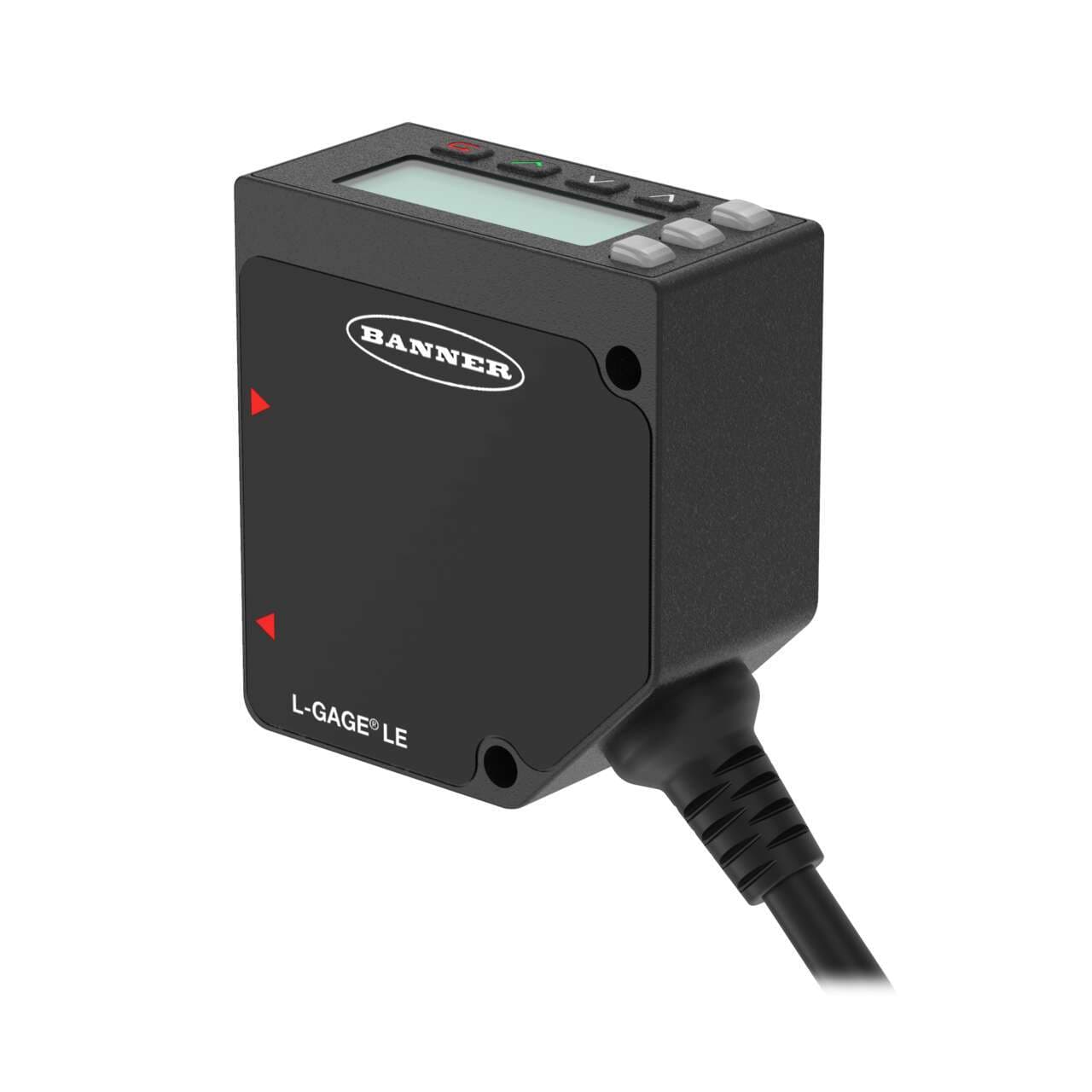

Banner Engineering LE250U is a Class 2 laser displacement sensor/transmitter belonging to the LE series. It features a triangulation system with an LCD display and TEACH mode for easy setup. This sensor emits a visible class 2 red laser with a wavelength of 650 nm for displacement measurement. It is designed with a rectangular shape and constructed from a die-cast zinc alloy housing with an acrylic window. The LE250U is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connection. It offers protection functions against overload and short-circuit. The sensor operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. It is capable of operating in ambient air temperatures ranging from -20 to +55 °C. The LE250U is designed with a degree of protection rated at IP67 and NEMA 6, making it suitable for harsh environments. It features 1 x analog output (0-10Vdc) and 1 x digital output (PNP/NPN transistor), with a sensing distance of 100...400mm.

LE250U

Banner Engineering LE250U is a Class 2 laser displacement sensor/transmitter belonging to the LE series. It features a triangulation system with an LCD display and TEACH mode for easy setup. This sensor emits a visible class 2 red laser with a wavelength of 650 nm for displacement measurement. It is designed with a rectangular shape and constructed from a die-cast zinc alloy housing with an acrylic window. The LE250U is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connection. It offers protection functions against overload and short-circuit. The sensor operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. It is capable of operating in ambient air temperatures ranging from -20 to +55 °C. The LE250U is designed with a degree of protection rated at IP67 and NEMA 6, making it suitable for harsh environments. It features 1 x analog output (0-10Vdc) and 1 x digital output (PNP/NPN transistor), with a sensing distance of 100...400mm.

  • ProfibusNo
  • SSINo
  • RS-485No
  • Feature: Timing (Hold/Delay)Yes
  • IO LinkNo
  • Power/Current Consumption (exclusive of load)70 mA @ 24 V dc
  • 1-wire Serial InterfaceNo
  • WirelessNo
  • RS-422No
  • PROFINETNo
  • RS-232No
  • Common Ethernet ProtocolNo
  • Feature: Remote TeachYes
  • Feature: Health/ Marginal Signal OutputYes
  • Feature: Chemical ResistantNo
  • Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
  • Alarm Output (mA)100
  • Max Ambient Light (Lux)10000
  • Laser ControlYes
  • Discrete Output Hysteresis (mm)Automatically adjusted
  • Remote Teach and Laser Control Input Impedence18 kΩ min. (65 kΩ min at 5 V dc)
  • Max Off-state Leakage Current (µA)NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
  • Minimum Response Time (ms)2
  • Analog Linearity (mm)Linearity is the lesser of Accuracy or 0.3% of full scale range (± 0.9 mm) at any given distance
  • Minimum Window Size (mm)1
  • Spot Size (@ Reference Distance)0.9 mm x 1.2 mm @ 400 mm
  • Warm-up Time (minutes)10
  • Window MaterialAcrylic
  • Max Op. Relative Humidity Non-Condensing (%)90 at 55°C
  • Min Operating Temperature (°C)-20
  • Max Operating Temperature (°C)55
  • Storage Temperature (°C)-30 to 65
  • IP RatingIP67
  • NEMA RatingNEMA 6
  • Output ProtectionProtected against continuous overload and short circuit
  • Discrete (Switched) Outputs1 NPN/PNP Configurable
  • Max Discrete (Switched) Output (mA)100
  • Output Saturation Voltage NPN Outputs< 1.6 V at 100 mA
  • Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • VibrationMIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Number of Pins5
  • Analog Voltage Output Rating2.5 kΩ min. load impedance
  • Output Saturation Voltage PNP Outputs< 3 V at 100 mA
  • Temperature Effect (mm/°C)+/- 0.03 mm/°C from 100 to 250 mm, +/- 0.15 mm /°C at 1000 mm
  • AdjustmentsPush Button; Remote Teach
  • Sensing Beam Wavelength (nm)650
  • Power Supply12-30 V dc
  • Minimum Sensing Distance (mm)100
  • Delay at Power-up (ms)2000
  • Analog Resolution/Discrete Repeatability100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
  • Max Sensing Distance (mm)400
  • Quick Disconnect TypeNo QD
  • ConnectionFlying Leads
  • Analog Output Configuration0-10 V dc
  • IndicatorLCD; LED(s)
  • Primary Housing MaterialZinc Alloy Die-Cast
  • Input/OutputAnalog & Discrete
  • Laser ClassificationClass 2
  • Housing StyleRectangular
  • Device TypeSensor
  • Sensing Mode (Detailed)Triangulation
  • Sensing Mode (General)Proximity
  • PC ConfigurableNo
  • Cable Length (m)2
  • PowerDC
  • Max Measurement Range>100 mm - <=500 mm
  • Sensing BeamVisible Red Laser
  • Main functionSensor (Displacement)
  • Primary brandBanner Engineering
  • Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)
  • ShapeRectangular
  • Order code / Manufacturer SKU91691
  • Light ColorVisible class 2 red Laser
  • Wavelength650 nm
  • Protection functionsOverload Short-circuit
  • Ambient air temperature for operation-20...+55 °C
  • Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • MaterialDie-cast Zinc alloy housing Acrylic window
  • Digital outputs1 x digital output (PNP/NPN transistor)
  • Degree of protectionIP67 NEMA 6
  • Sub-range nameLE
  • Sensing distance100...400mm
  • Designtriangulation system LCD display teach mode
  • Compliant with standard(s)cULus CE
  • Product series / family nameL-GAGE series
  • FunctionsTriangulation class 2 Laser displacement sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
  • DisplayLCD 2 lines x 8 characters
  • Analog outputs1 x analog output (0-10Vdc)
