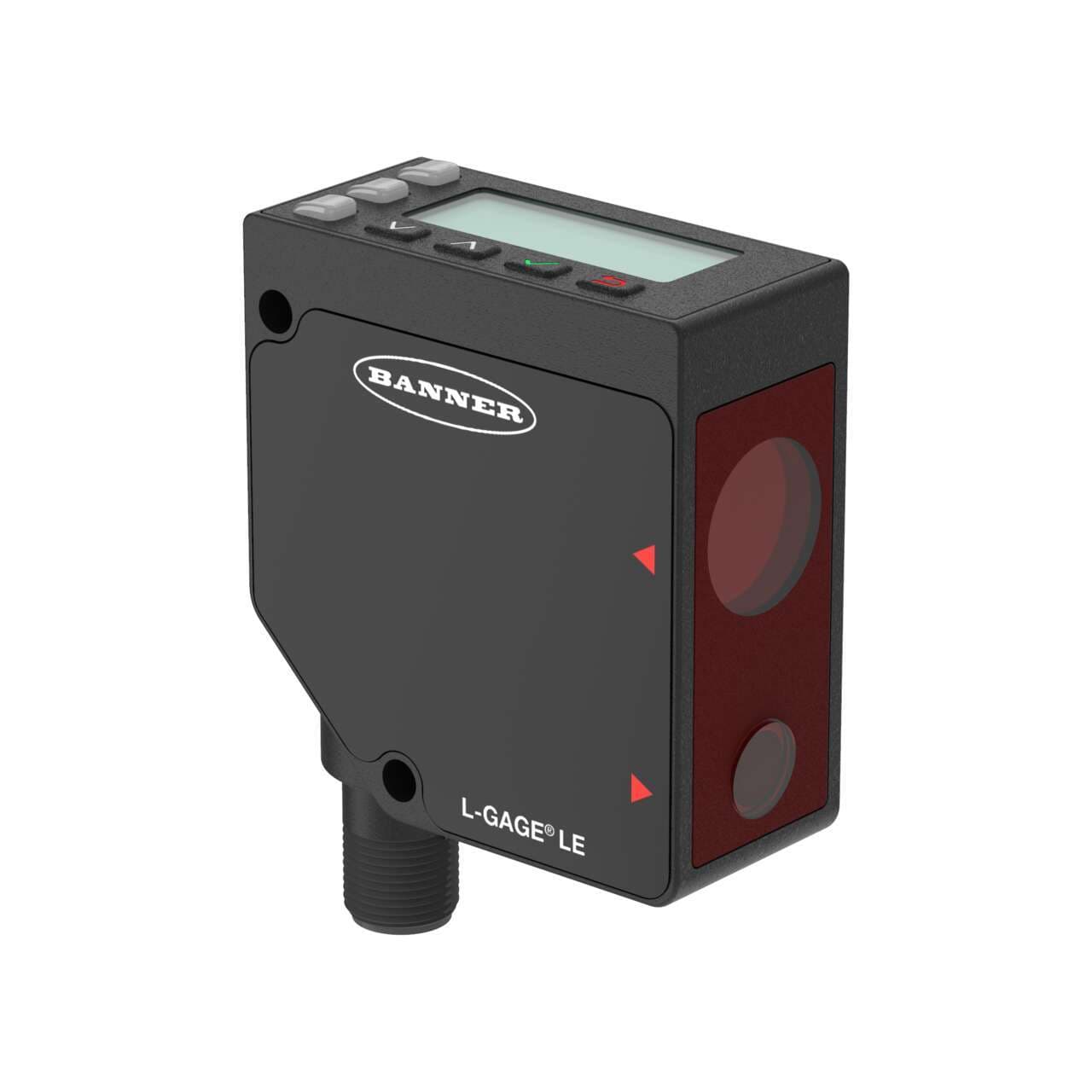

LE250DQ Banner Measurement Sensors

Product Details

• Weight
  249.4756 g
• Country Of Origin
  US
• Output Protection
  Protected against continuous overload and short circuit
• Vibration
  MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• RS-485
  No
• SSI
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• IO Link
  No
• Feature: Health/ Marginal Signal Output
  Yes
• Common Ethernet Protocol
  No
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  Yes
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  70 mA @ 24 V dc
Max Ambient Light (Lux)
10000
Max Off-state Leakage Current (µA)
NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
Laser Control
Yes
Alarm Output (mA)
100
Discrete Output Hysteresis (mm)
Automatically adjusted
Minimum Window Size (mm)
1
Minimum Response Time (ms)
2
Spot Size (@ Reference Distance)
0.9 mm x 1.2 mm @ 400 mm
Warm-up Time (minutes)
10
Window Material
Acrylic
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Min Operating Temperature (°C)
-20
IP Rating
IP67
Max Operating Temperature (°C)
55
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Storage Temperature (°C)
-30 to 65
NEMA Rating
NEMA 6
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Output Saturation Voltage PNP Outputs
< 3 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Number of Pins
5
Delay at Power-up (ms)
1000
Temperature Effect (mm/°C)
+/- 0.03 mm/°C from 100 to 250 mm, +/- 0.15 mm /°C at 1000 mm
Sensing Beam Wavelength (nm)
650
Power Supply
12-30 V dc
Adjustments
Push Button; Remote Teach
Quick Disconnect Type
M12 (Euro)
Minimum Sensing Distance (mm)
100
Max Sensing Distance (mm)
400
Analog Resolution/Discrete Repeatability
100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
Connection
Integral QD
Input/Output
Discrete
Indicator
LCD; LED(s)
Laser Classification
Class 2
Housing Style
Rectangular
Power
DC
PC Configurable
No
Sensing Mode (Detailed)
Triangulation
Primary Housing Material
Zinc Alloy Die-Cast
Device Type
Sensor
Sensing Mode (General)
Proximity
Sensing Beam
Visible Red Laser
Max Measurement Range
>100 mm - <=500 mm
Main function
Sensor (Displacement)
Design
triangulation system LCD display teach mode
Sensing distance
100...400mm
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Ambient air temperature for operation
-20...+55 °C
Product series / family name
L-GAGE series
Functions
Triangulation class 2 Laser displacement sensor green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
Shape
Rectangular
Material
Die-cast Zinc alloy housing Acrylic window
Order code / Manufacturer SKU
94200
Sub-range name
LE
Wavelength
650 nm
Degree of protection
IP67 NEMA 6
Compliant with standard(s)
cULus CE
Display
LCD 2 lines x 8 characters
Light Color
Visible class 2 red Laser
Digital outputs
2 x digital outputs (PNP/NPN transistors)
Protection functions
Overload Short-circuit
