Powermatic Associates Logo

K90FDLBN Banner Electronic Components

K90FDLBN on Powermatic Associates
Banner

Part#:K90FDLBN

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

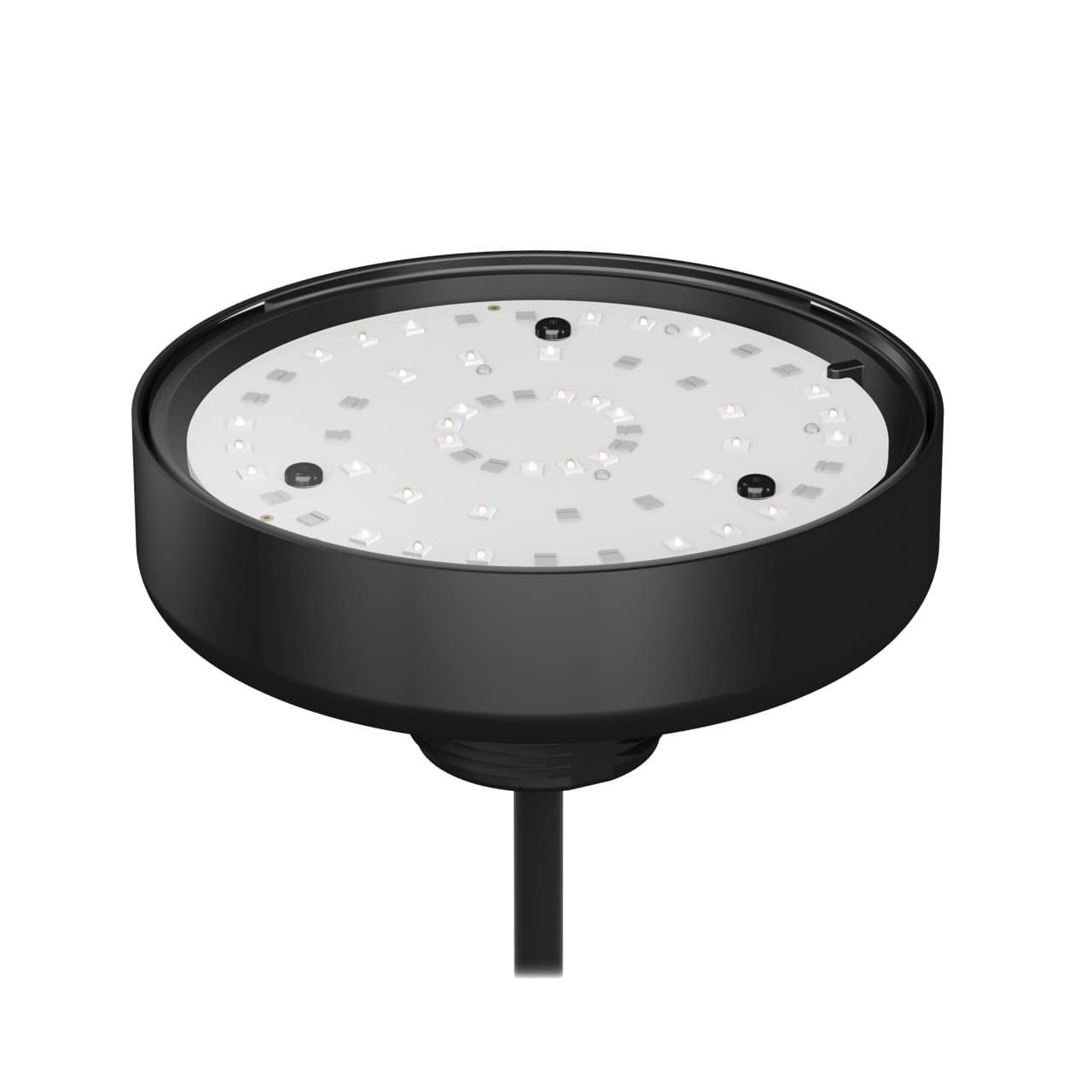

K90F Series EZ-LIGHT; 1-Color Daylight Visible Indicator, Voltage: 12-30 V dc; Environmental Rating: IP67, Input: NPN; Colors: Blue, 2 m (6.5 ft) Cable

Product Details

  • Wireless
    No
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Clear
  • Max Op. Temperature (°C)
    50
  • Min Op. Temperature (°C)
    -40
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 42.0
  • Supply Voltage
    12-30 V dc
  • Max Input Response Time (ms)
    75
  • Input Type
    NPN
  • Environmental Rating
    IP67
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    475
  • Connection
    Cable
  • Wire Selectable Function
    Flashing
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Lumens Color 1
    55.0
  • Color Option 1
    Blue
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Indication
    Yes
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Flat Window
  • Number of Colors / Segments
    1
  • Product Size (mm)
    90
  • Power
    DC
  • Feature: Hazardous Area
    No
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Animation Option 1
    Solid On
  • Primary Housing Material
    Polycarbonate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K90FDLBN Related Documents

K90FDL Daylight Visible -- Datasheet-1630952227871.pdf
