K90FDLGPQ Banner Signal Beacons
Part#:K90FDLGPQ
Manufacturer:Banner
Alt. Part#:96139
Product Lifecycle:Active
Get a quick Quote!
K90F Series EZ-LIGHT; 1-Color Daylight Visible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90FDLGPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 217.72416 g
- Country Of Origin MX
- IO Link No
- Feature: Quick Disconnect Yes
- Wireless No
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Indication Intensity High Brightness & Daylight Visible
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Clear
- Feature: Audible No
- Environmental Rating IP67
- Input Type PNP
- Lumens Color 1 175
- Connection Integral QD
- Housing Style Base Mount - Flat Window
- Feature: Chemical Resistant No
- Max Op. Temperature (°C) 50
- Min Op. Temperature (°C) -40
- NEMA Type and UL Type Rating NEMA 4X, 13
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 42.0
- Max Input Response Time (ms) 75
- Supply Voltage 12-30 V dc
- Number of Input Pins/Conductors 5
- Max Current Color (mA) 475
- Quick Disconnect Type M12 (Euro)
- Wire Selectable Function Flashing
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color Option 1 Green
- Animation Option 1 Solid On
- Color Technology Standard LED
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Indication Yes
- Mounting Thread M30 x 1.5
- Power DC
- Power Source DC
- Number of Colors / Segments 1
- Product Size (mm) 90
- Primary Housing Material Polycarbonate
- Cable Length (m) 0.15
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
K90FDLGPQ Description

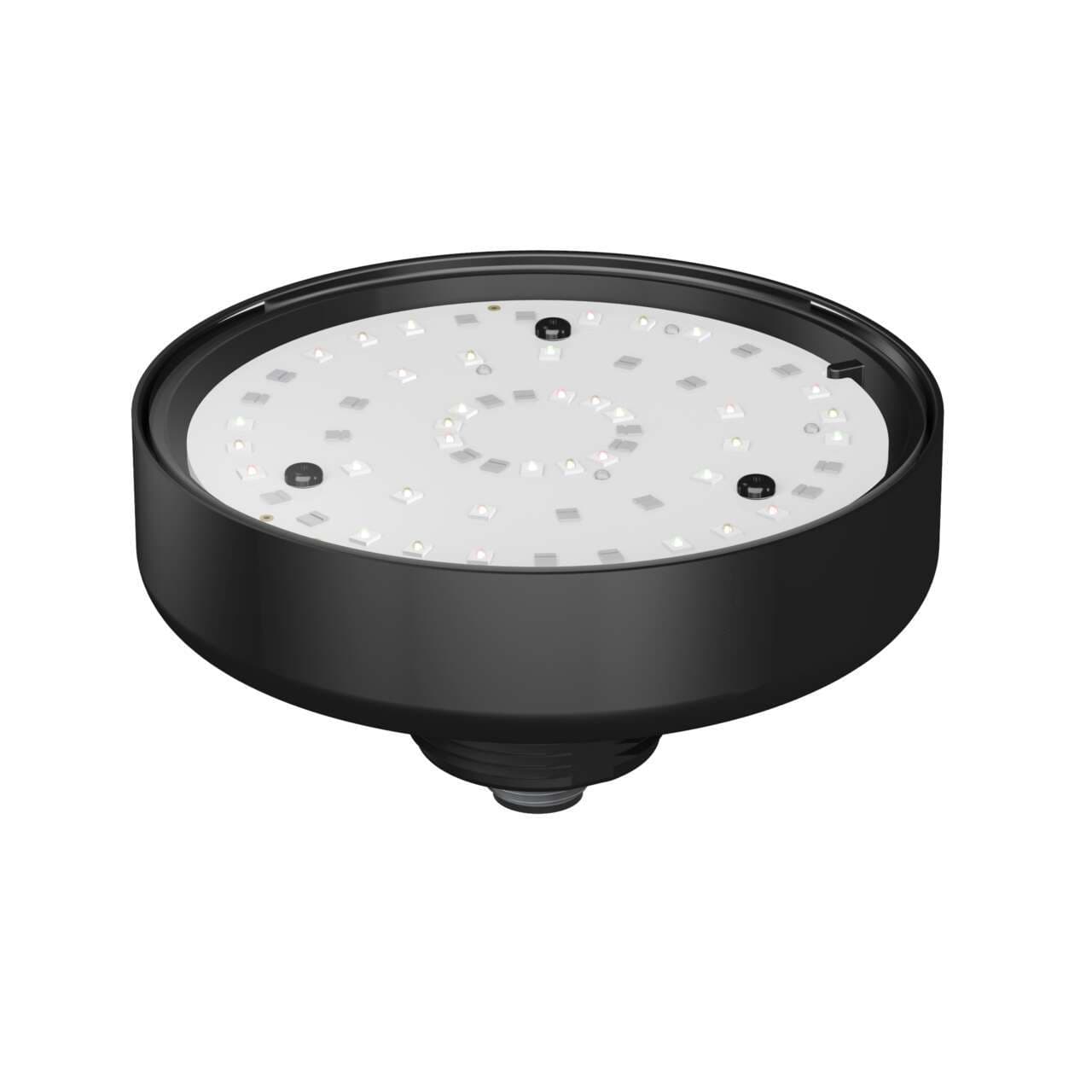

Banner Engineering K90FDLGPQ is a pilot light from the EZ-LIGHT series designed for signaling applications. It features a flat LED pilot light indicator with flashing input control and is equipped with daylight-visible 1-color green LED illumination. The housing is black, and it has a round flat window made from clear Polycarbonate (PC), with a base also constructed from Polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 5-wire cable that terminates with bare end flying leads, supporting a supply voltage range of 12Vdc to 30Vdc (24Vdc nominal). It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The light area has a diameter of 90mm. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and boasts a degree of protection rated at IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it features 1 x digital input (12-30Vdc; PNP) for color control.
Related documents K90FDLGPQ Specs
