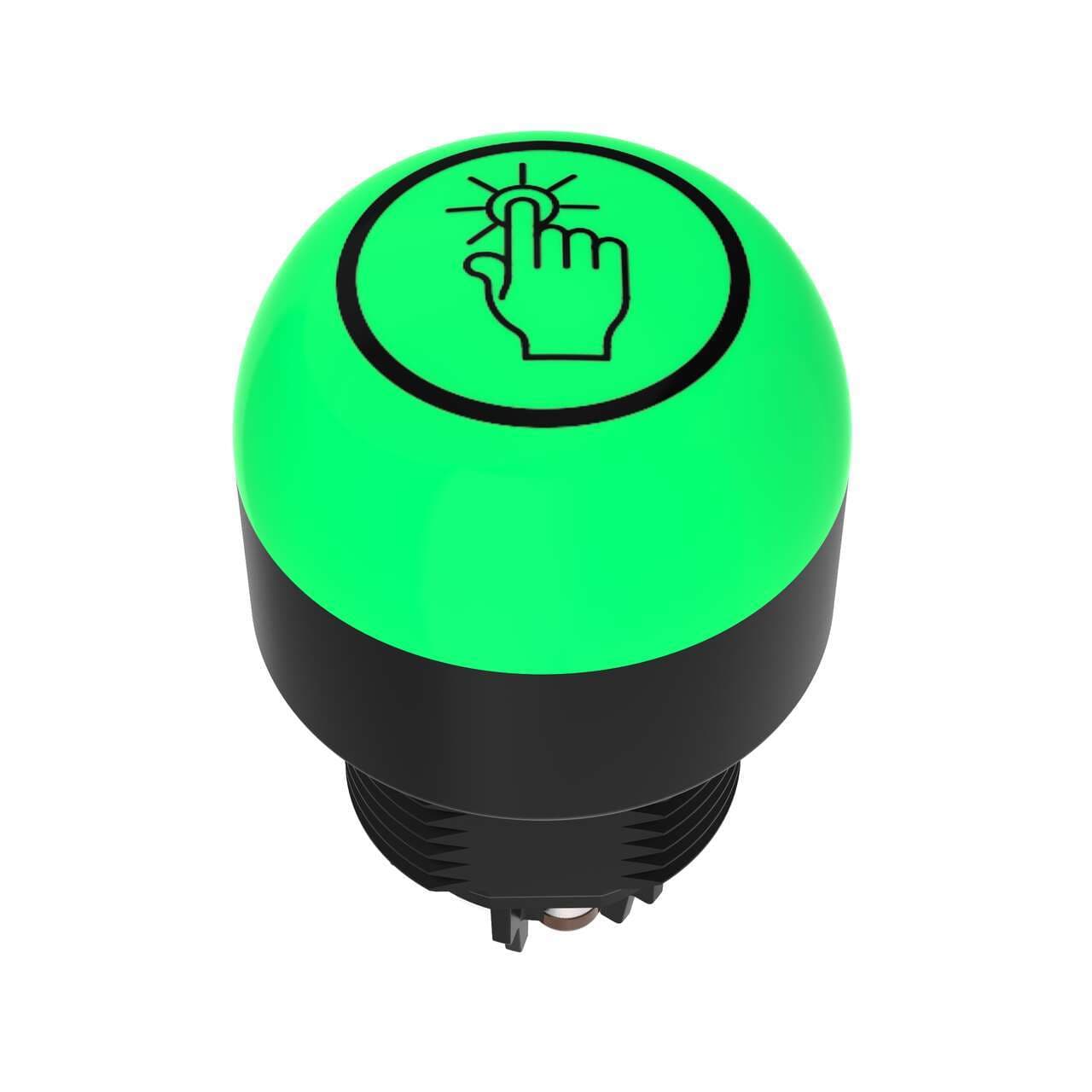

K30RPT2XRF2T Banner Pick-to-Light Sensors

Name: K30RPT2XRF2T
Brand: Banner
Price: 127 USD
Availability: BackOrder

Part#:K30RPT2XRF2T

Alt. Part#:810965

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series EZ-LIGHT: 1-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NC); Colors: None - power applied, Red - input active; 5-screw Terminal Wiring

Product Details

Weight
6.80388 g
Country Of Origin
US
IO Link
No
Pro-Editor Compatible (Discrete)
No
Wireless
No
Modbus RTU
No
Feature: Quick Disconnect
No
Multi-Color Device
Single Color On
Feature: Washdown Rated
Yes
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Primary Window Material
Polycarbonate Diffused
Button Operation
Momentary
Primary Housing Color
Black
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Max Op. Temperature (°C)
50
Max Output Response Time (ms)
150

NEMA Type and UL Type Rating

NEMA and UL 4X, 13

Physical Dimensions (LxWxH or DxH mm)

30.0 x 48.9

Environmental Rating

IP67; IP69

Max Input Response Time (ms)

300

Input Type

PNP

Supply Voltage

12-30 V dc

Output Type

PNP

Number of Input Pins/Conductors

Operation

Normally Closed

Max Current Color (mA)

Pick-to-Light Function

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Color Option 2

Red

Connection

Terminal

Color Technology

Standard LED

Lumens Color 2

1.7

Product Size (mm)

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Primary Housing Material

Polycarbonate

Mounting Thread

M22 x 1.5

Activation Function

Capacitive Touch

Power

Power Source

Actuation

Yes

Housing Style

Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30RPT2XRF2T on Powermatic Associates is $127.00. Order now.

About the product

Banner Engineering K30RPT2XRF2T, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. The connection is facilitated through a screw-clamp terminal, and it operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. This part offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter measures 30mm or approximately 1-3/16 inches. It is designed to operate within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode includes a momentary job light (R; Red) that is ON when the input is active, and touch activates the output only with a Normally Closed (NC) touch output. It also features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functions.
