K30RBT2XRH Banner Pick-to-Light Sensors

Name: K30RBT2XRH
Brand: Banner
Price: 127 USD
Availability: BackOrder

Part#:K30RBT2XRH

Alt. Part#:803588

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NC); Colors: None - Not Activated, Red - Activated; 2 m (6.5 ft) PVC Cable

Product Details

Weight
58.96696 g
Country Of Origin
US
Pro-Editor Compatible (Discrete)
No
Wireless
No
Modbus RTU
No
Multi-Color Device
Single Color On
IO Link
No
Feature: Quick Disconnect
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Feature: Chemical Resistant
No
Primary Window Material
Polycarbonate Diffused
Button Operation
Momentary
Primary Housing Color
Black
Storage Temp (°C)
-40 to 70
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
NEMA Type and UL Type Rating
NEMA and UL 4X, 13

Environmental Rating

IP67; IP69

Physical Dimensions (LxWxH or DxH mm)

30.0 x 41.0

Max Output Response Time (ms)

150

Max Input Response Time (ms)

300

Input Type

Bimodal (PNP/NPN)

Output Type

Bipolar (NPN & PNP)

Supply Voltage

12-30 V dc

Operation

Normally Closed

Number of Input Pins/Conductors

Max Current Color (mA)

Product Size (mm)

Color Option 2

Red

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Connection

Cable

Lumens Color 2

1.7

Color Technology

Standard LED

Number of Colors / Segments

Actuation

Yes

Primary Housing Material

Polycarbonate

Power Source

Housing Style

Base Mount - Dome Window

Power

Mounting Thread

M22 x 1.5

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Activation Function

Capacitive Touch

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30RBT2XRH on Powermatic Associates is $127.00. Order now.

About the product

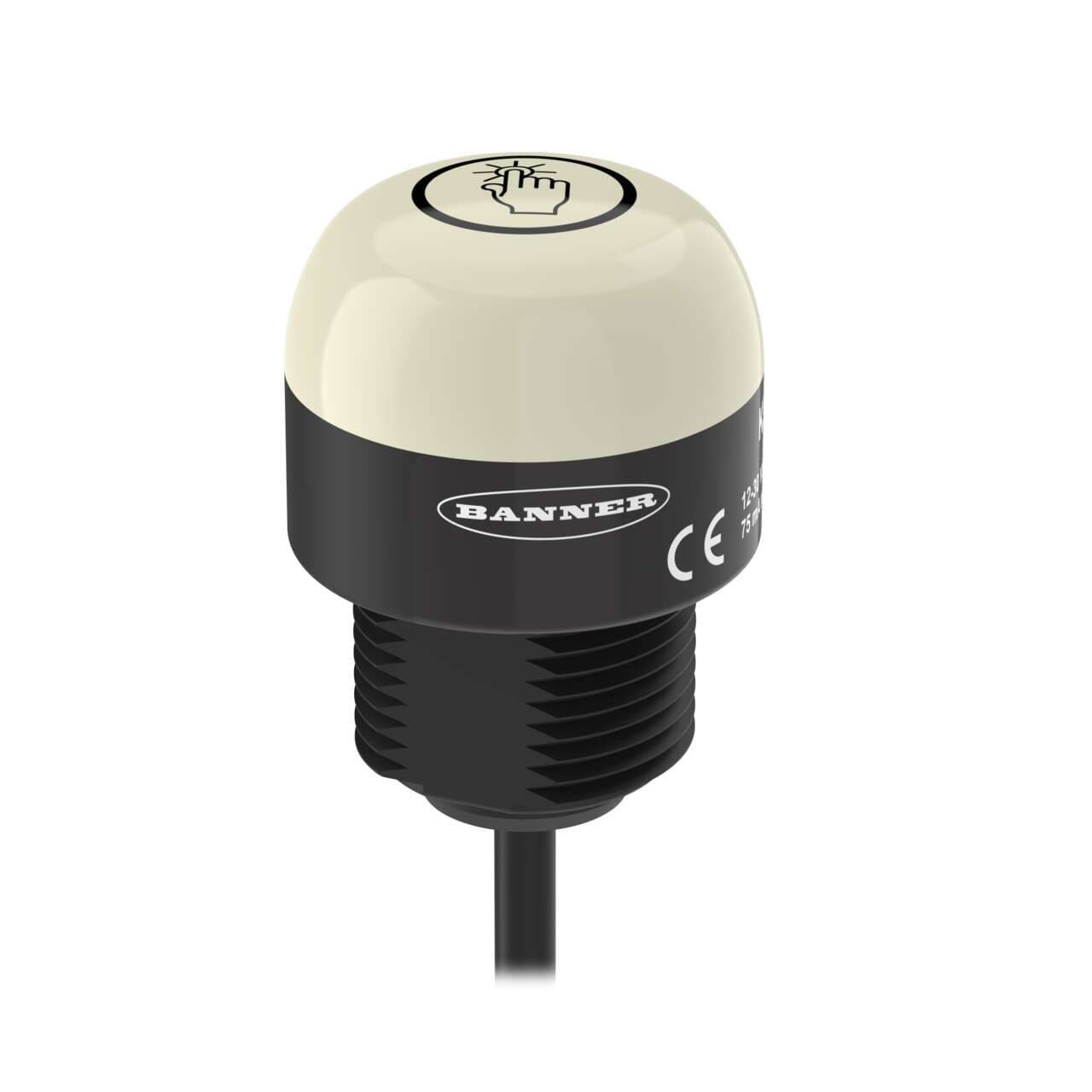

Banner Engineering K30RBT2XRH is an illuminated capacitive touch-sensitive button designed with a Gen.2 1-color LED illumination that displays no color when not activated and red when activated. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from PC. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It offers versatile mounting options including surface or base pole with an M22 thread and has a 30mm / 1-3/16" dome diameter. The K30RBT2XRH operates within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K, ensuring durability in various environmental conditions. It operates in a momentary NC (Normally Closed) touch output mode and includes 1 x digital input (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
