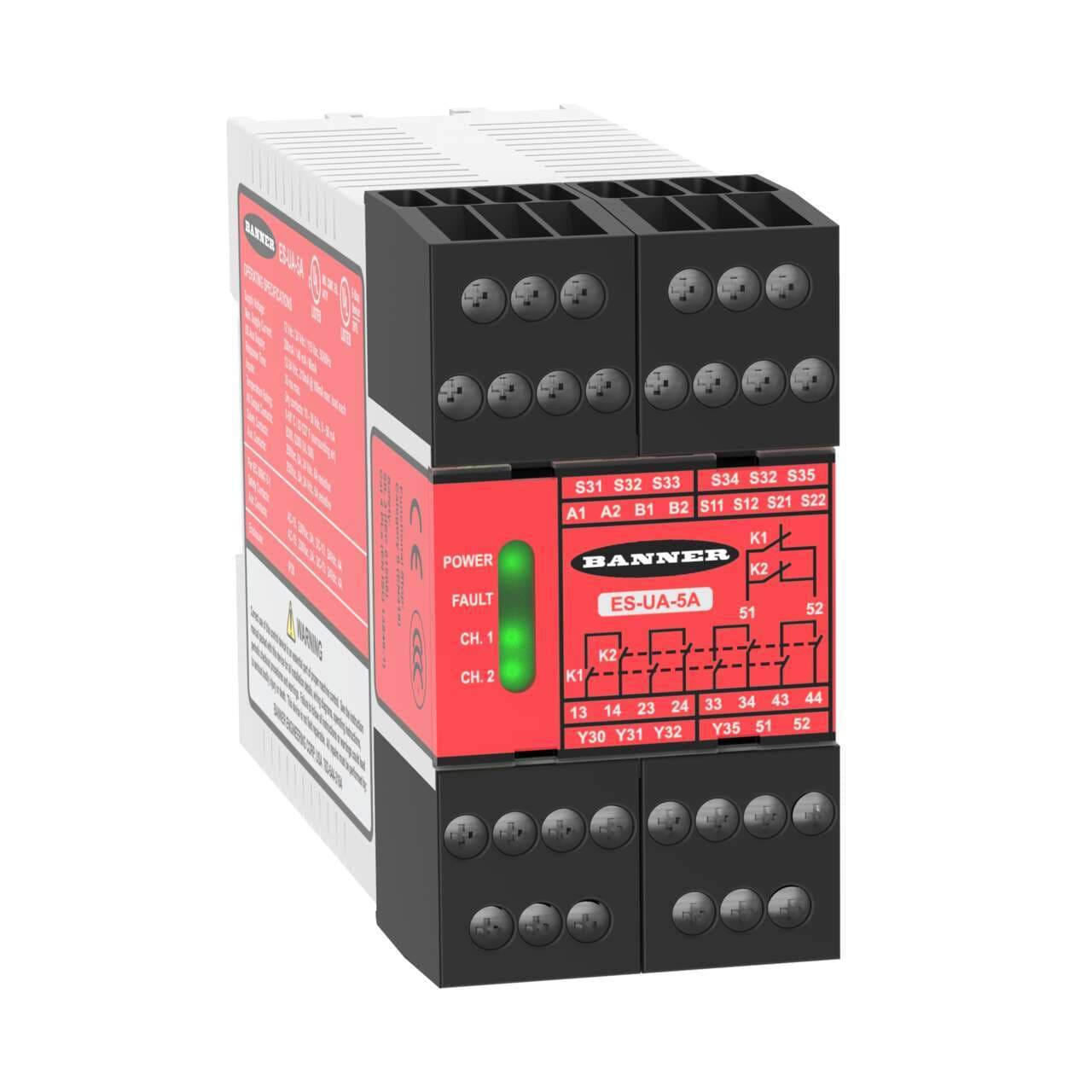

ES-UA-5A Banner Safety Relays
Part#:ES-UA-5A
Manufacturer:Banner
Alt. Part#:66091
Product Lifecycle:Active
Get a quick Quote!

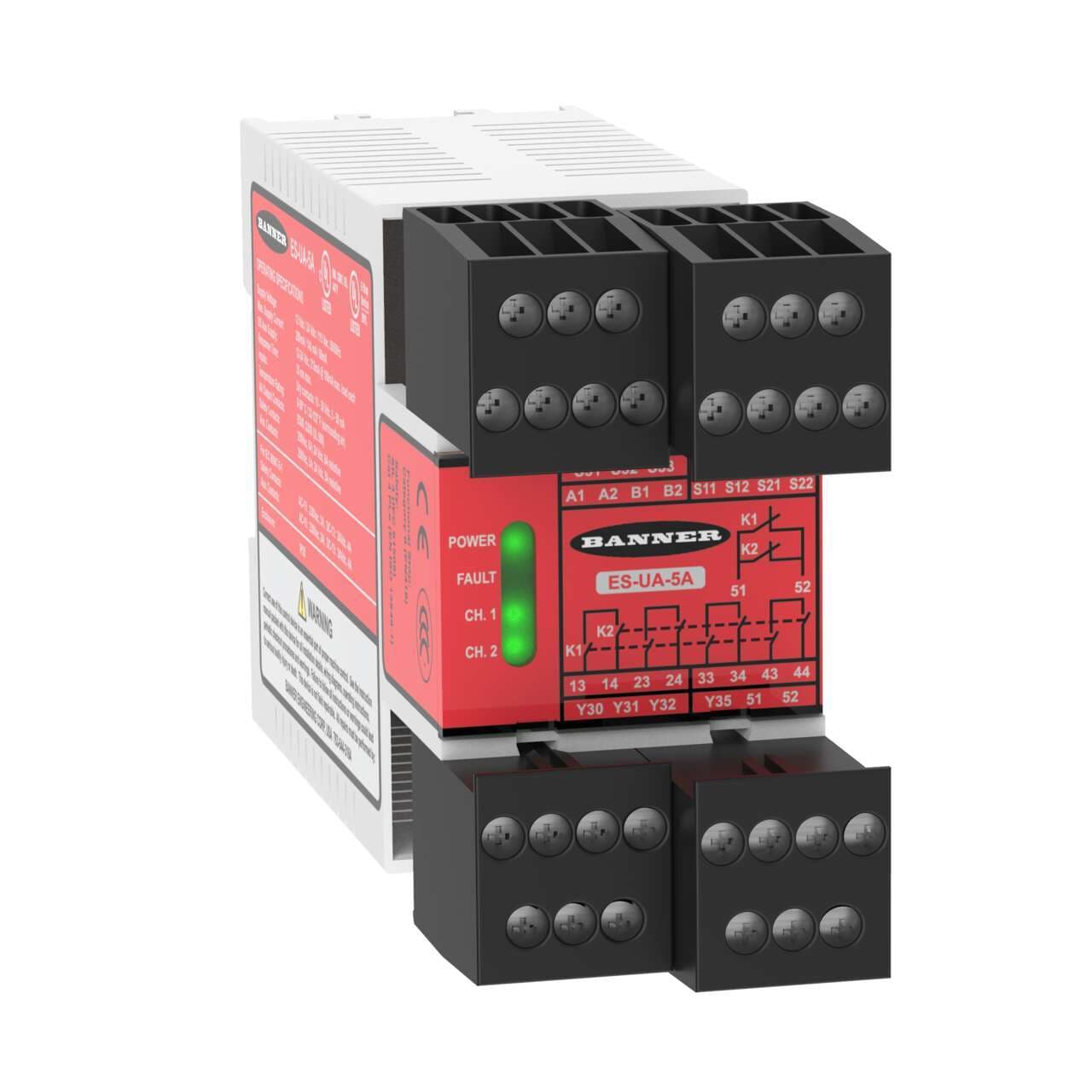

Safety Relay Module for E-Stop/Rope Pull/Interlock; Supply Voltage: 115 V ac or 12-24 V dc; Safety Input: 1 Dual/Single Channel; Safety Output: 4 NO, 6 A; Aux Output: 1 NC, 5 A and 2 Solid-State 0.1 A; Terminal Block: Removable; Width: 45 mm; Self-Checking Circuitry, Auto/Manual Reset
About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the ES-UA-5A Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 553.38224 g
- Country Of Origin US
- EPLAN Cabinet Installable Yes
- PCCC No
- Light Curtains/Scanner without EDM Input No
- Gate Switch (OSSD) Input No
- Recovery Time 350
- In-Series Diagnostics No
- PROFINET No
- Modbus/TCP No
- Common Ethernet Protocol No
- EtherNet/IP No
- Light Curtains/Scanner with EDM Input No
- Gate Switch (NC/NO) Input No
- Motor Speed No
- Gate Switch (NC/NC) Input Yes
- Muting No
- Safety Category Rating 4
- SIL Rating 3
- PL Rating e
- Safety Mat No
- E-Stops/Rope Pulls Yes
- Input Resistance 250 Ω max. per channel
- SISTEMA PFHd = 5.8 x 10-8
- IP Rating IP20
- Electrical Life (Cycles @ VA) 1,000,000 @ 450 VA
- Vibration 10-55 Hz at 0.35 mm; 60 - 150 Hz at 5 g max.
- Removable Terminals Yes
- Terminal Type Screw
- Response Time (ms) 25 (typical)
- Supply Voltage 115 V ac +/- 15% (A1-A2); 11 - 27.6 V dc (B1-B2)
- Recovery Time (ms) 350
- Power Consumption 4 W / 7 VA
- Power AC/DC Universal
- Output Configuration 4 NO
- Mechanical Life (Operations in Millions) 50
- Non Safe Output Configuration 1 NC, 2 PNP
- Relative Humidity 90% @ 50° C
- Splittable Safe Output No
- Safe Output Rating Relay - 6 A
- Non Safe Output Rating Relay - 5 A
- Safety Input - Reset 20-50 mA @ 12-30 V dc (dry contact only)
- Max Operating Temperature ( °C) 50
- Dimension (H x W x D in mm) 84 x 45 x 118
- Independently Controlled Safe Outputs 1
- Input Operation Simultaneous or Concurrent
- Safety Input - Dual Channel (Dry Contact) 20-50 mA @ 12-30 V dc
- Input Configuration 2 NC or 1 NC
- Number of Safe Inputs 1
- LCD Display No
- Expandable No
- Safety Module Type Emergency Stop Module
- Device Type Safety Relay
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
ES-UA-5A Description
Banner Engineering ES-UA-5A is a safety relay designed for DIN rail mounting. It features a net width of 45 mm, operates within an ambient air temperature of up to +50°C, and offers a degree of protection rated at IP20. This safety relay module is equipped with 4 safety outputs (4NO / 4xSPST-NO, each consisting of 2 N.O. contacts in series; 6A), 1 auxiliary output (1NC / SPST-NC, made of 2 N.C. contacts in parallel; 5A), and 2 digital outputs (PNP transistor). It supports screw connections for secure installation. The ES-UA-5A operates on a supply voltage range of 11Vdc to 27.6Vdc (with 12Vdc and 24Vdc as nominal values) and can also be powered by 115Vac. The device measures 118 mm in depth and 84 mm in height.
