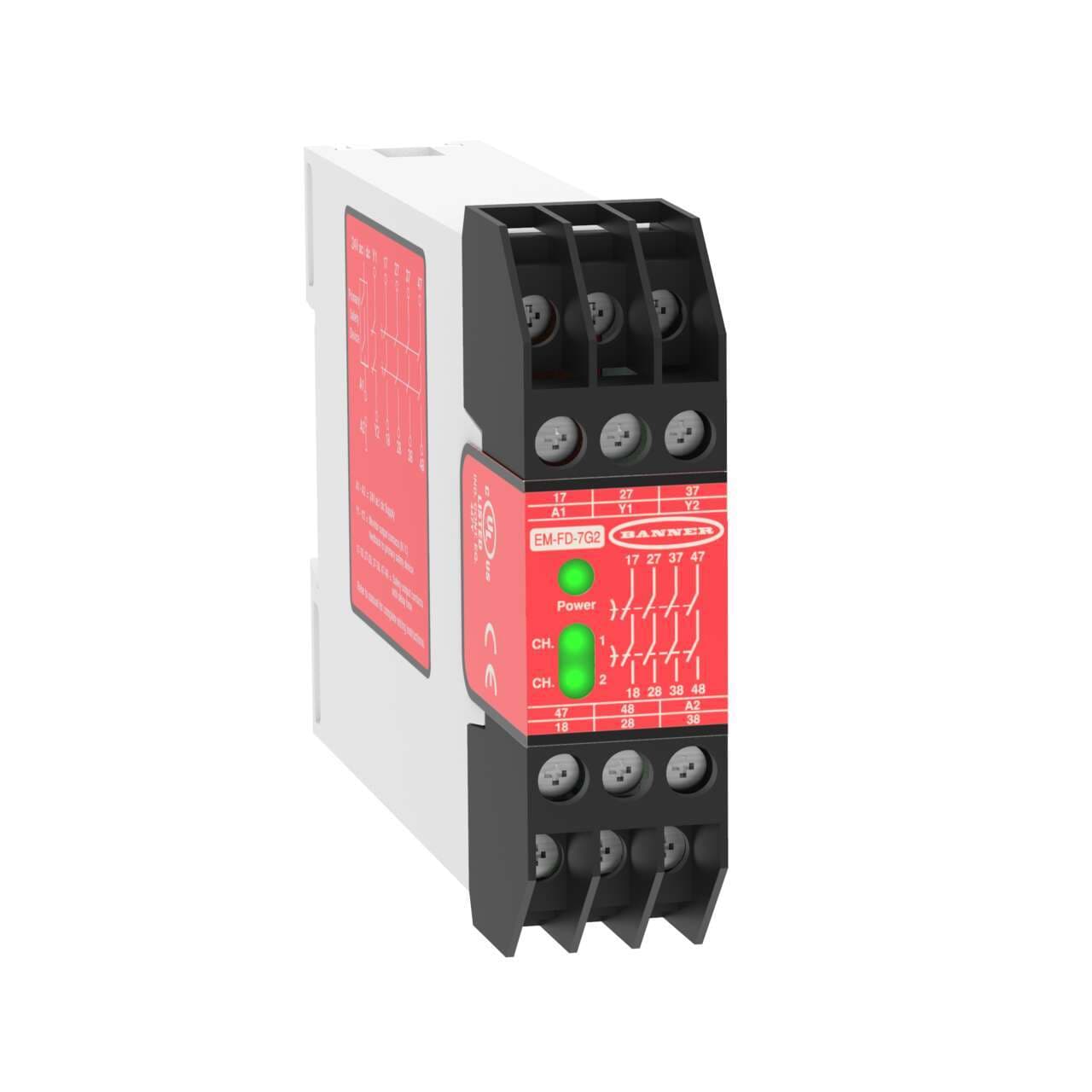

EM-FD-7G2 Banner Safety Relays

Product Details

• Weight
  235.86784 g
• Country Of Origin
  US
• EtherNet/IP
  No
• Safety Input - Single Channel
  40-100 mA @ 13-27 V ac/dc
• Recovery Time (ms)
  30
• Relative Humidity
  90% @ 50° C
• PCCC
  No
• In-Series Diagnostics
  No
• Modbus/TCP
  No
• PROFINET
  No
• Common Ethernet Protocol
  No
• Light Curtains/Scanner without EDM Input
  No
• Light Curtains/Scanner with EDM Input
  No
• Motor Speed
  No
• Gate Switch (NC/NC) Input
  No
• Muting
  No
• Gate Switch (OSSD) Input
  No
• Gate Switch (NC/NO) Input
  No
• Safety Mat
  No
• E-Stops/Rope Pulls
  No
IP Rating
IP20
Electrical Life (Cycles @ VA)
100,000 @ 1500 VA
Removable Terminals
No
Vibration
10-55 Hz at 0.35 mm
Terminal Type
Screw
Supply Voltage
24 V ac/dc +/- 10%
Response Time (ms)
35 (typical)
Power Consumption
0.1 A
Mechanical Life (Operations in Millions)
10
Non Safe Output Rating
N/A
Splittable Safe Output
No
Safe Output Rating
Relay - 6 A
Input Configuration
1 NC
Independently Controlled Safe Outputs
1
Output Configuration
4 NO
Number of Safe Inputs
1
Max Operating Temperature ( °C)
50
Expandable
No
Dimension (H x W x D in mm)
82 x 22.5 x 118
LCD Display
No
Device Type
Safety Relay
Safety Module Type
Relay Extension Module
Power
AC/DC Universal

Related documents EM-FD-7G2 Specs
