EA5R750XKQ Banner Measurement Sensors

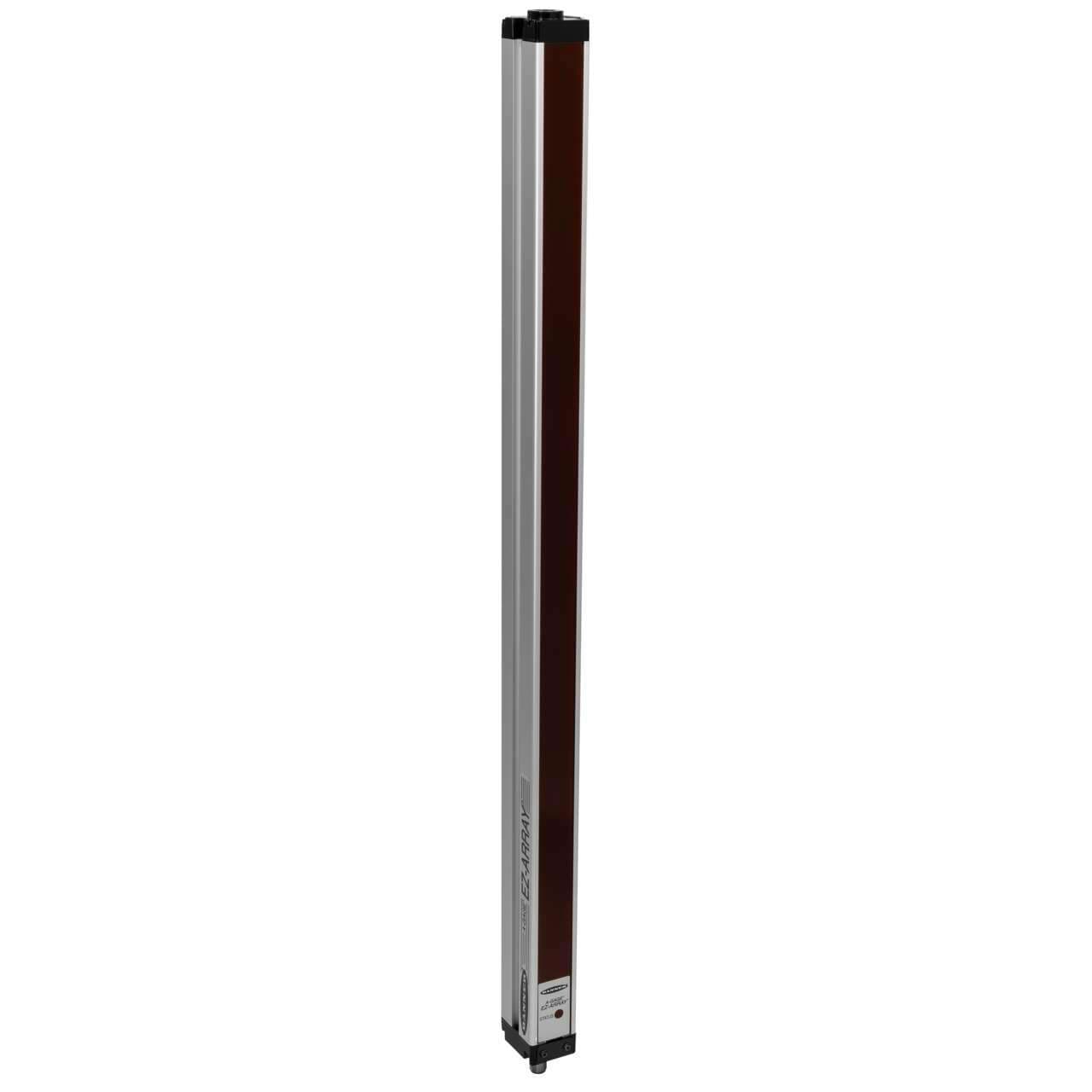

Banner EA5R750XKQ EA5R750XKQ EZ-ARRAY 5 mm Optical Spacing x 750 mm RECVR with IO-Link Integral 8-pin M12
Banner

Part#:EA5R750XKQ

Manufacturer:Banner

Alt. Part#:15157

Product Lifecycle:Active

Get a quick Quote!

EA5R750XKQ EZ-ARRAY 5 mm Optical Spacing x 750 mm RECVR with IO-Link Integral 8-pin M12

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the EA5R750XKQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2576.40256 g
  • Country Of Origin
    MX
  • Sub-range name
    EZ-ARRAY
  • Main function
    Sensor (Edge)
  • Primary brand
    Banner Engineering
  • Product series / family name
    A-GAGE series
  • Display
    LCD 3 digits display
  • Distance
    150 beams / 5mm beam spacing/pitch
  • Sensing distance
    40cm...4m
  • Digital outputs
    2 x digital outputs (PNP transistors)
  • Dimensions
    750mm array length
  • Detectable object size
    5-10mm
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Communication protocol
    IO-Link
  • Material
    Aluminium housing
  • Order code / Manufacturer SKU
    15157
  • Functions
    Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
  • Resolution
    5mm
  • Analog outputs
    2 x analog outputs (0-10Vdc)
  • Compliant with standard(s)
    CE
  • Connection type
    Pre-equipped with 8-pin Euro-style M12 connector
  • Degree of protection
    IP65
  • Ambient air temperature for operation
    -40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5R750XKQ Description

Banner Engineering EA5R750XKQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series, with a main function as a measuring light curtain array edge/profile sensor (receiver alone). It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers 2 analog outputs (0-10Vdc) and 2 digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. It is equipped with a pre-equipped 8-pin Euro-style M12 connector for easy installation. The EA5R750XKQ has a degree of protection rated at IP65, making it suitable for various industrial environments. Its dimensions include a 750mm array length, with a resolution of 5mm and a sensing distance ranging from 40cm to 4m. The sensor can detect objects sized between 5-10mm, featuring 150 beams with a 5mm beam spacing/pitch. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and supports the IO-Link communication protocol for efficient data exchange.

Related documents EA5R750XKQ Specs

EA5R750XKQ 157954.pdf
