EA5R150XKQ
Banner
Product Lifecycle: Active

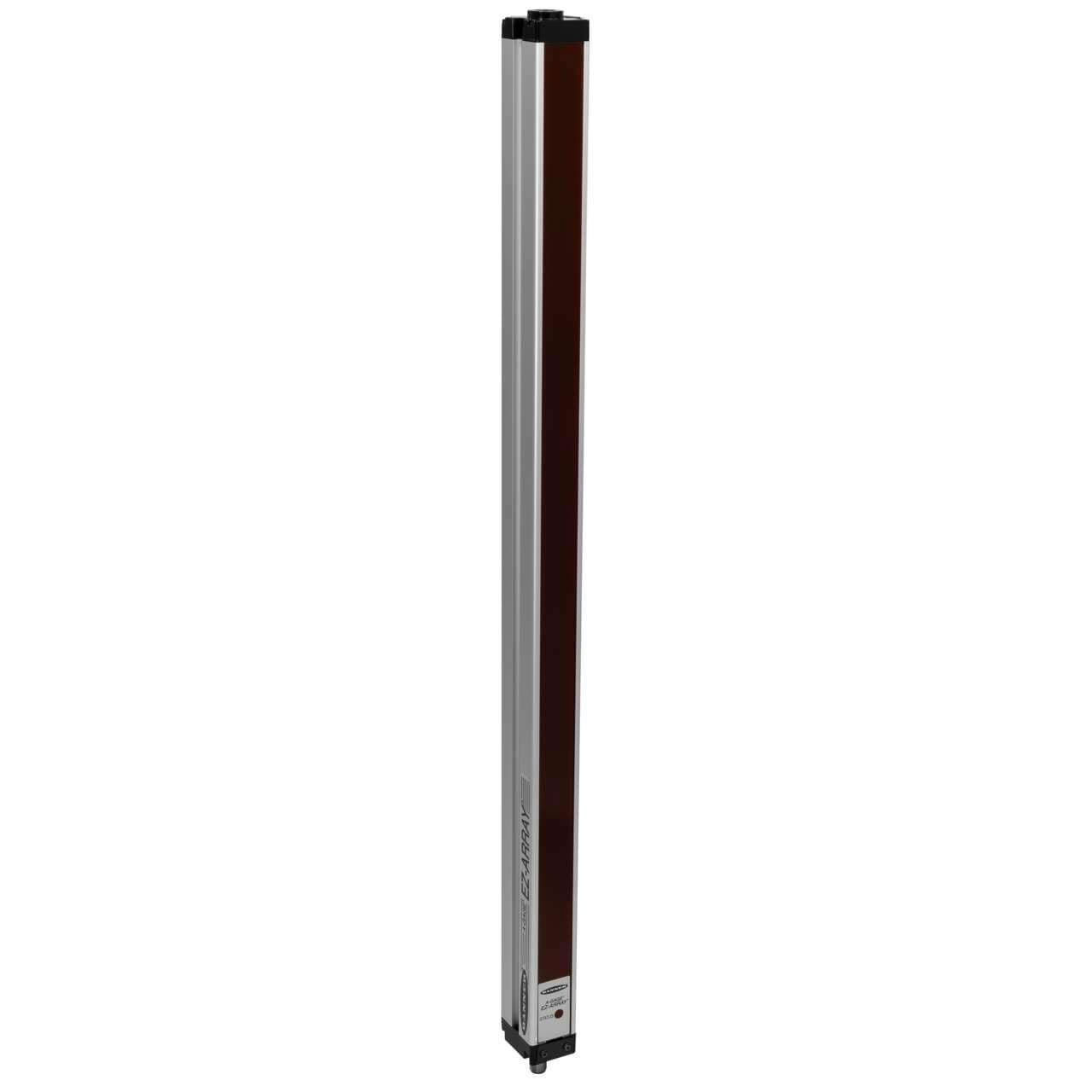

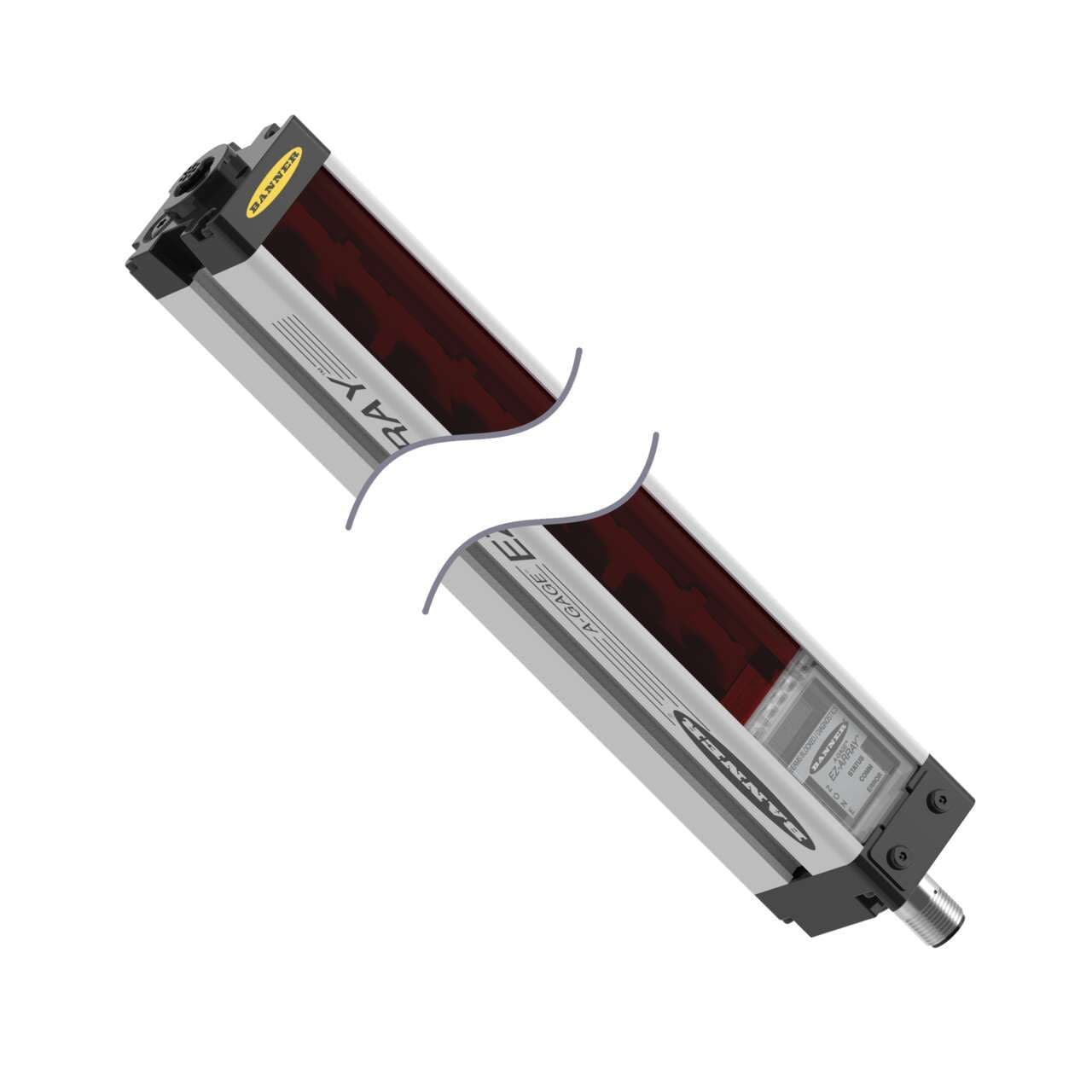

Banner Engineering EA5R150XKQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series, with a focus on measuring light curtain array edge/profile sensing as a receiver alone. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers 2 analog outputs (0-10Vdc) and 2 digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. It is characterized by a rectangular shape, a 150mm array length, and is capable of detecting object sizes between 5-10mm with a resolution of 5mm. The sensing distance of this unit ranges from 40cm to 4m, and it includes 30 beams with a 5mm beam spacing/pitch. The EA5R150XKQ is equipped with an 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It supports the IO-Link communication protocol and is protected to a degree of IP65, making it suitable for a variety of industrial applications.
![EA5R150XKQ](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F60e0b5a3-26f9-417d-8dcf-9e89b482717d.jpg&w=3840&q=75)
Banner Engineering EA5R150XKQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series, with a focus on measuring light curtain array edge/profile sensing as a receiver alone. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers 2 analog outputs (0-10Vdc) and 2 digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. It is characterized by a rectangular shape, a 150mm array length, and is capable of detecting object sizes between 5-10mm with a resolution of 5mm. The sensing distance of this unit ranges from 40cm to 4m, and it includes 30 beams with a 5mm beam spacing/pitch. The EA5R150XKQ is equipped with an 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It supports the IO-Link communication protocol and is protected to a degree of IP65, making it suitable for a variety of industrial applications.
Product details
- Communication protocolIO-Link
- Dimensions150mm array length
- Digital outputs2 x digital outputs (PNP transistors)
- Analog outputs2 x analog outputs (0-10Vdc)
- Connection typePre-equipped with 8-pin Euro-style M12 connector
- MaterialAluminium housing
- Primary brandBanner Engineering
- Degree of protectionIP65
- Resolution5mm
- Ambient air temperature for operation-40...+70 °C
- Detectable object size5-10mm
- Compliant with standard(s)CE
- DisplayLCD 3 digits display
- Order code / Manufacturer SKU15151
- Distance30 beams / 5mm beam spacing/pitch
- Main functionSensor (Edge)
- Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)
- Sensing distance40cm...4m
- Sub-range nameEZ-ARRAY
- Product series / family nameA-GAGE series
- FunctionsMeasuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
