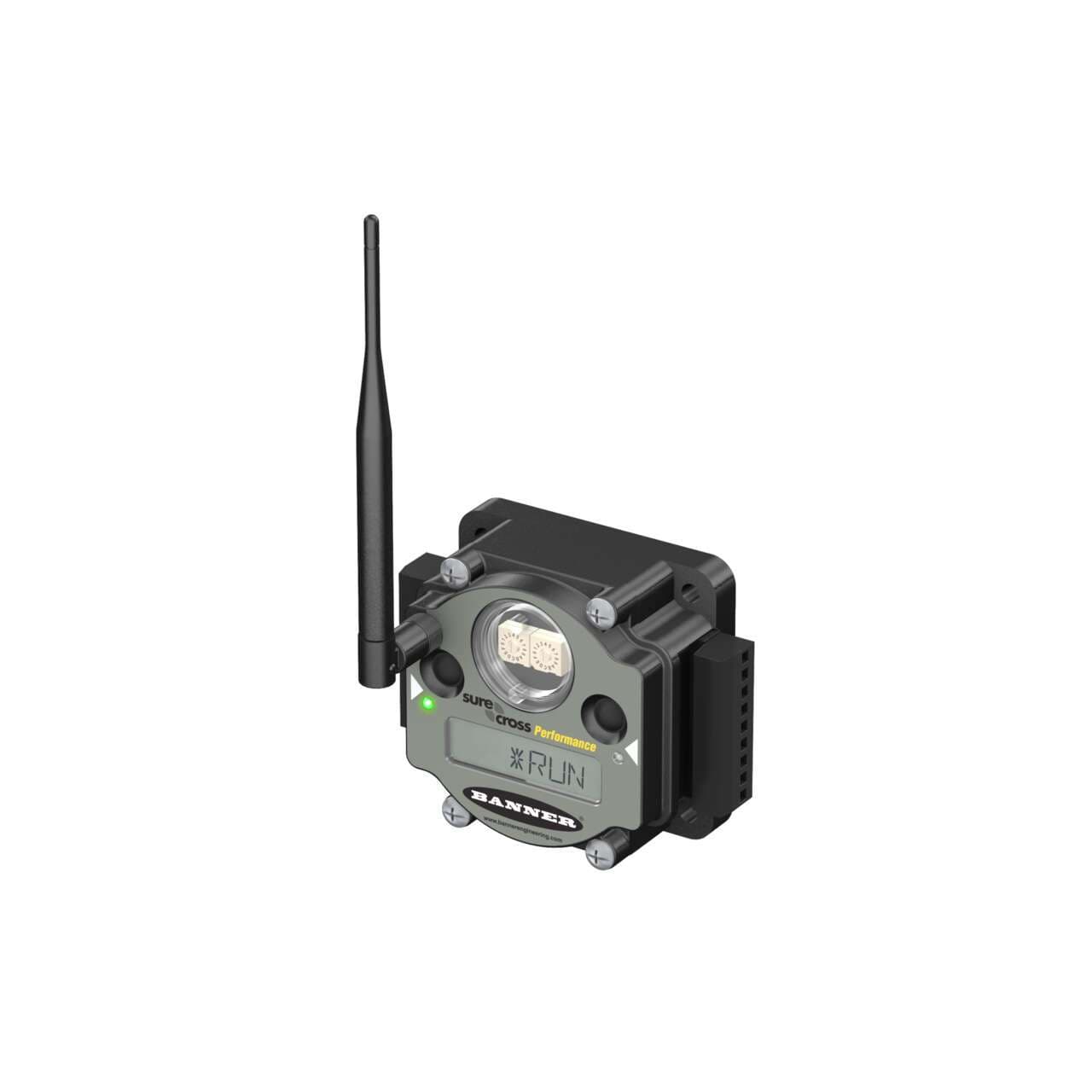

DX80N2X6S-P2C Banner I/O Modules

DX80N2X6S-P2C on Powermatic Associates
Banner

Part#:DX80N2X6S-P2C

Manufacturer:Banner

Alt. Part#:18798

Product Lifecycle:Active

Get a quick Quote!

DX80 Performance 2.4 GHz Node 65 mW IP20; 10-30 V dc External Antenna; Input: 4 Discrete 2 Analog; Output: 4 Discrete 2 Analog 0-20 mA; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N2X6S-P2C Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    612.3492 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    2.4 GHz
  • RS-485
    No
  • Wireless
    Yes
  • RS-232
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • Modbus RTU
    No
  • EtherNet/IP
    No
  • Feature: Hazardous Area
    Yes
  • Tree Topology
    No
  • Point-to-Point Topology
    Yes
  • Star Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Environmental Rating (NEMA)
    NEMA 1
  • Relative Humidity
    95%
  • Power Supply
    10-30 V dc
  • Max Operating Temperature ( °C)
    80
  • Max Temp Operating Conditions
    80
  • Min Operating Temperature ( °C)
    -20
  • LCD Display
    Yes
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Environmental Rating (IP)
    IP20
  • Min Temp Operating Conditions
    -20
  • Output Details
    4 PNP Discrete, 2 0-20 mA analog
  • Analog Outputs
    Yes
  • Discrete Outputs
    Yes
  • Housing Style
    External Terminals
  • Device Type
    Node
  • Input/Output
    Analog & Discrete
  • Power
    DC
  • Analog Inputs
    Yes
  • Input Details
    4 Selectable Discrete, 2 0-20 mA
  • Discrete Inputs
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80N2X6S-P2C Description

Banner Engineering DX80N2X6S-P2C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. It measures H44.5mm x W103.3mm x D80.1mm and has a rectangular shape. The DX80N2X6S-P2C is equipped with 2 analog outputs (0-20mA; 12-bit), 4 digital outputs (30Vdc; Sourcing; 100mA), 2 analog inputs (0-20mA / 0-10Vdc; 12-bit), and 4 digital inputs (30Vdc 3mA; PNP/NPN). It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication, operates on a 2.4GHz ISM band frequency with a 65mW power, and can achieve a maximum transmission distance of 3.2km at nominal emission power. The design includes 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.).

Related documents DX80N2X6S-P2C Specs

DX80N2X6S-P2C 155862.pdf
