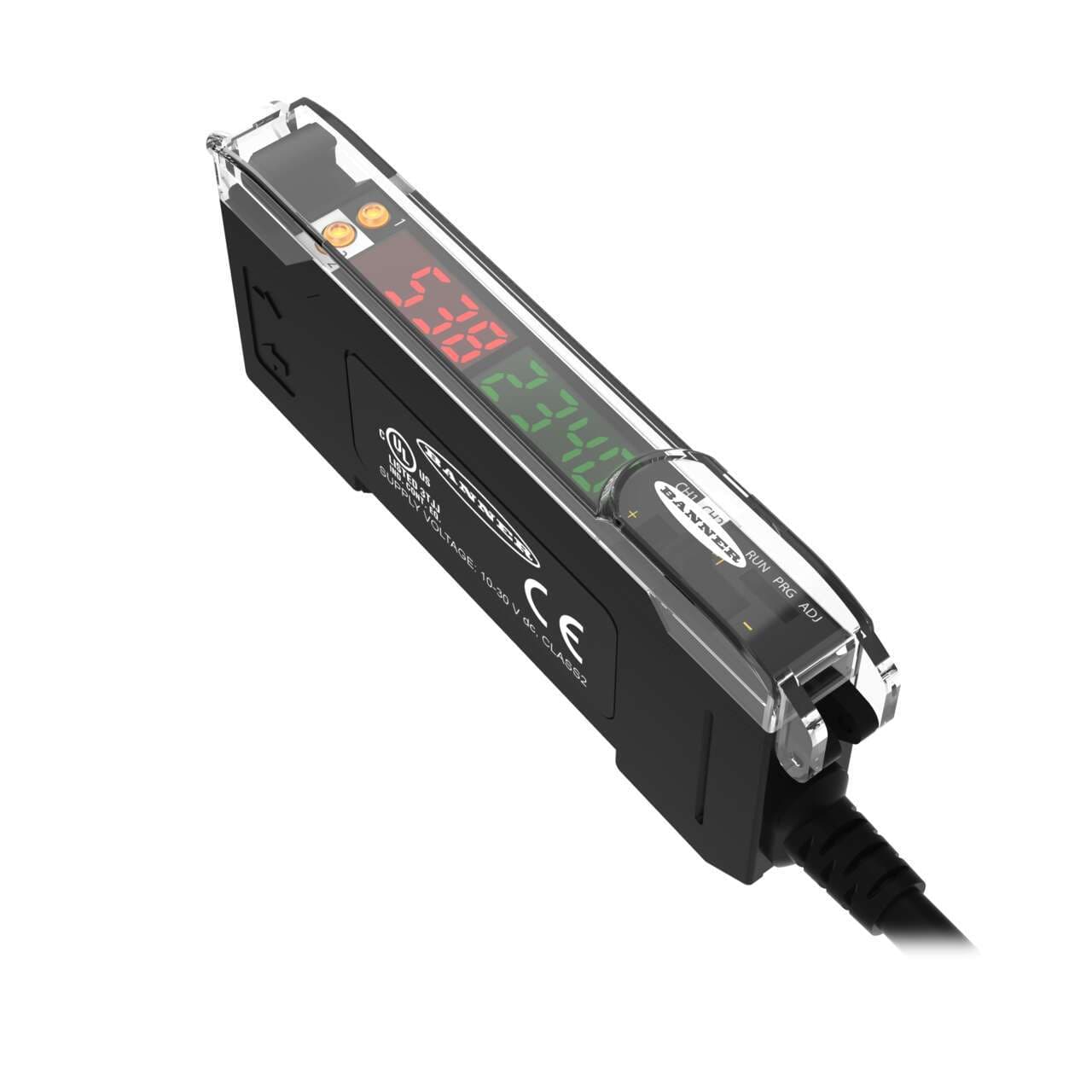

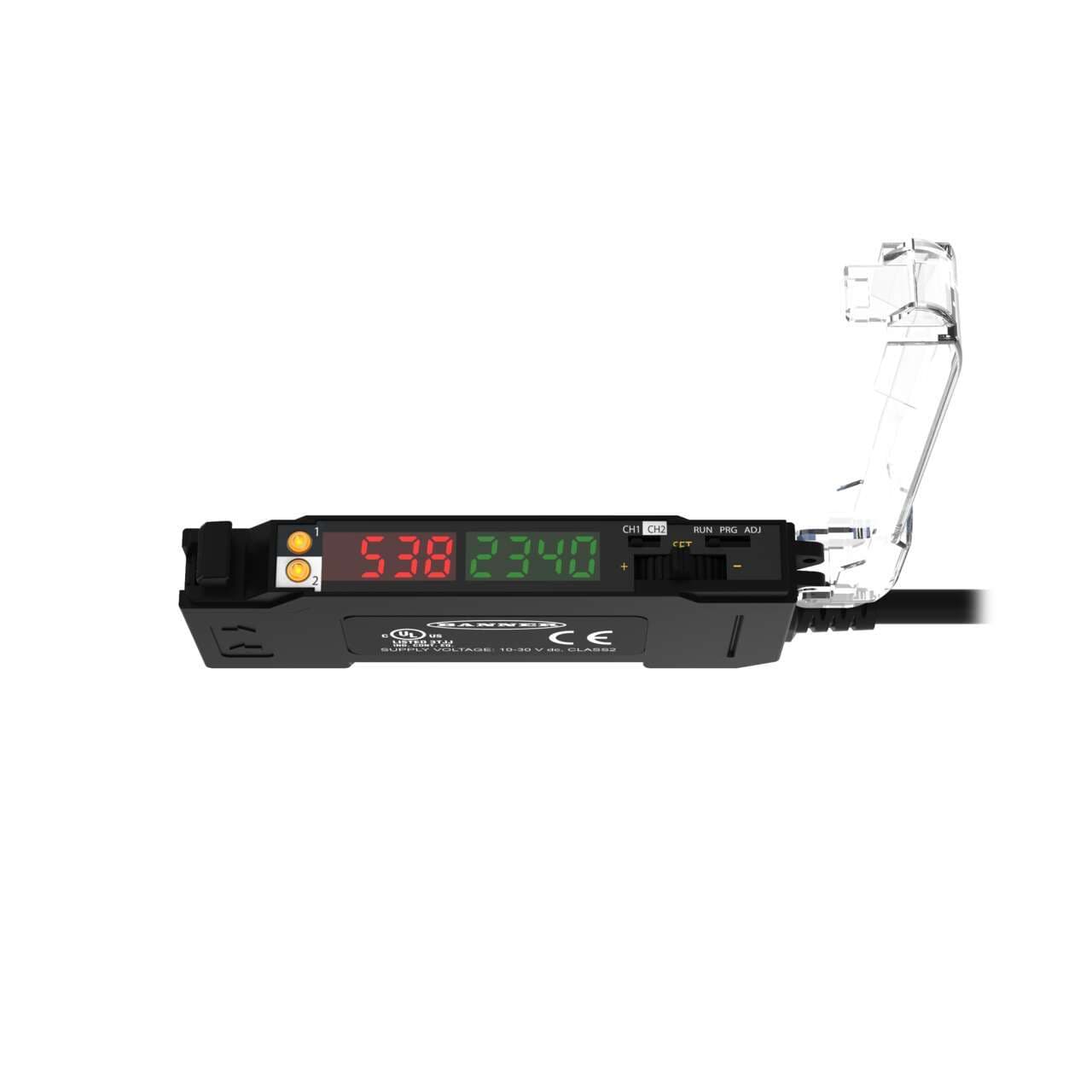

DF-G3LIR-PS-2M Banner Sensor Accessories

Product Details

• Weight
  90.7184 g
• Country Of Origin
  CN
• Sub-range name
  DF-G3 Expert series
• Light Color
  Infrared (IR)
• Degree of protection
  IP50 NEMA 1
• Product series / family name
  Fiber optic amplifiers
• Functions
  Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
• Primary brand
  Banner Engineering
• Design
  for water detection
• Digital outputs
  1 x digital output (PNP transistor)
• Main function
  Amplifier for sensor
• Wavelength
  1450 nm
• Material
  thermoplastic housing Glass fiber
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Mounting mode
  DIN rail mounting
• Shape
  Rectangular
• Compliant with standard(s)
  cULus CE
• Display
  LED 4 digits x 2 (red + green)
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Ambient air temperature for operation
  -10...+55 °C
Equivalent to
DFG3LIRPS2M
Order code / Manufacturer SKU
87686
Power
DC
Intrinsically Safe
No
Housing Style
DIN Rail
Max Op. Temperature (°C)
55
Quick Disconnect Type
No QD
Indicator Display Type
Dual Digital Displays
Fiber Type
Glass Only
Min Op. Temperature (°C)
-10
Minimum response time (ms)
.5
IO Link
No
Primary Housing Material
Thermoplastic
Repeatability (µs)
100 to 180
Power Supply/Supply Voltage
10-30 V dc
Housing Material
Thermoplastic
Cable Length (m)
2
Output Type (Specific)
Single Discrete
Adjustments
Teach Button
Feature: Audible
No
NEMA Rating
NEMA 1
Special Feature: Bussable Power
No
Input/Output
Discrete
Max Op. Relative Humidity (%)
90% @ 60°C
Feature: Timing (Hold/Delay)
Yes
Connection
Cable
IP Rating
IP50
Delay at Power-up (ms)
500
Color LED - Amplifiers
Long Infrared (Water Detection)
Special Feature: Remote Teach
Yes
Feature: Hazardous Area
No
Output
PNP
Number of Pins
4
Crosstalk Avoidance
Yes
Feature: Health/ Marginal Signal Output
Yes
