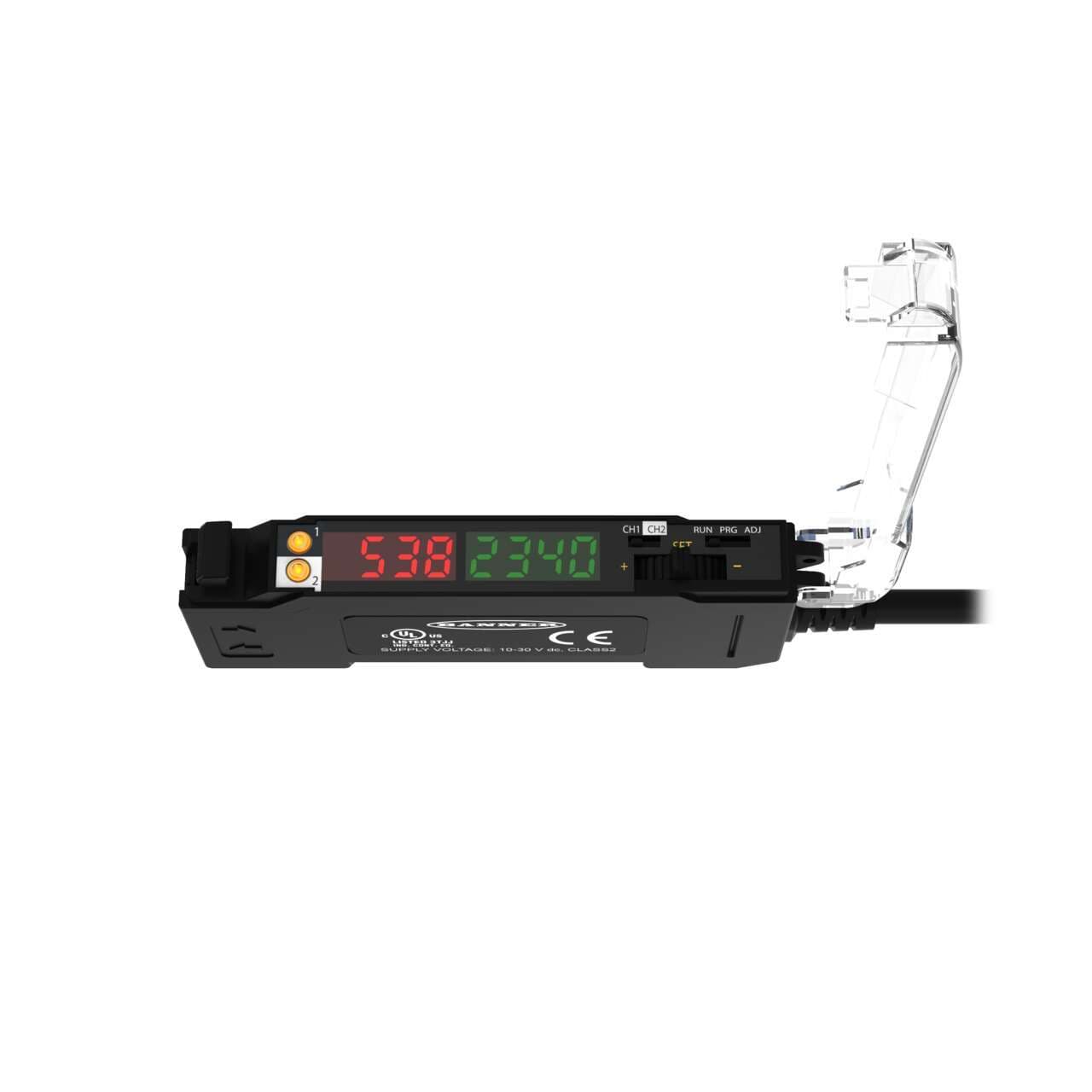

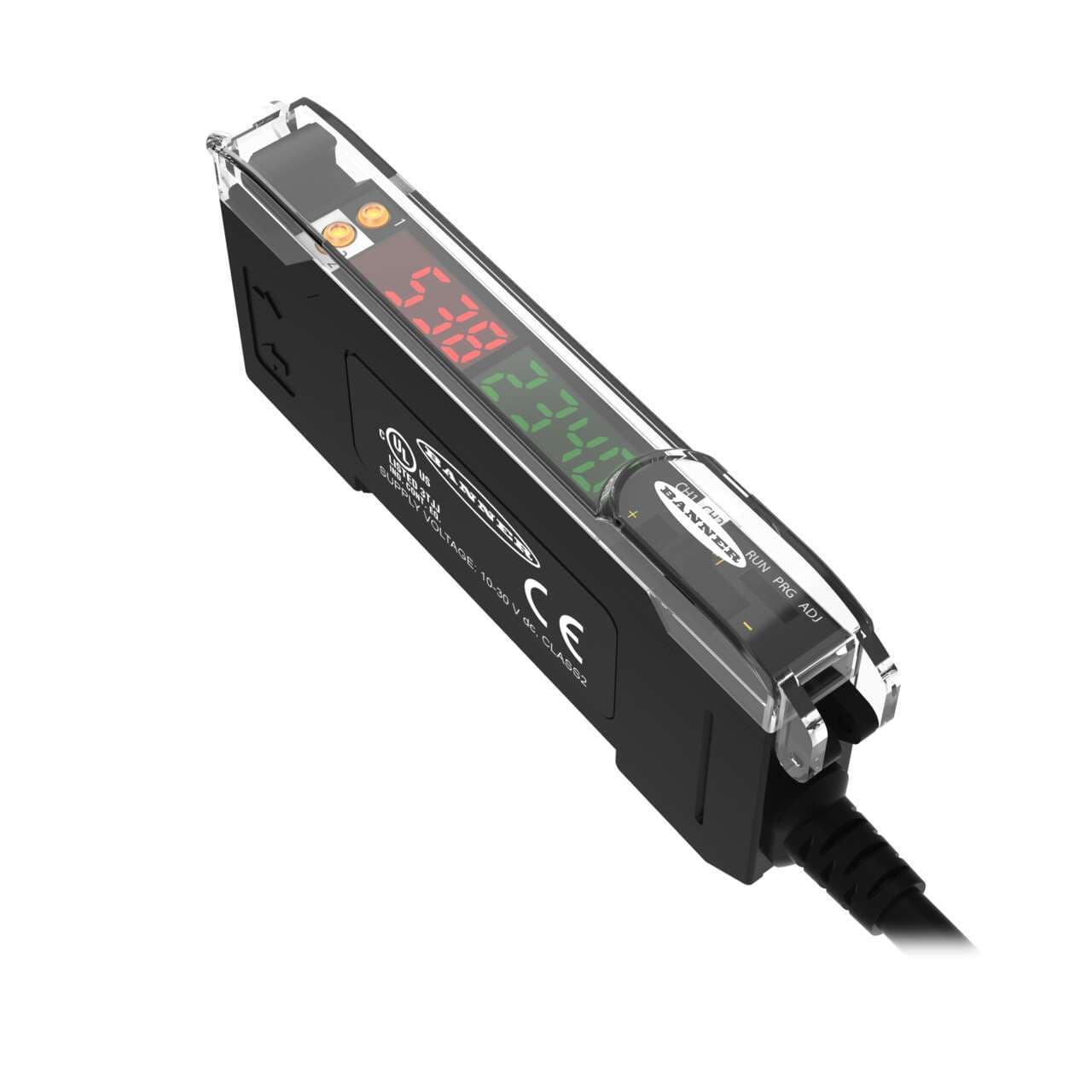

DF-G3-ND-2M Banner Sensor Accessories
Part#:DF-G3-ND-2M
Alt. Part#:87581
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 2 NPN; 2 m 5-conductor PVC Cable
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Feature: Health/ Marginal Signal Output Yes
- Housing Material Thermoplastic
- IO Link No
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) Yes
- Special Feature: Bussable Power No
- Minimum response time (ms) .5
- Delay at Power-up (ms) 500
- Indicator Display Type Dual Digital Displays
- Intrinsically Safe No
- Adjustments Teach Button
- Crosstalk Avoidance Yes
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach Yes
- Max Op. Temperature (°C) 55
- IP Rating IP50
- Min Op. Temperature (°C) -10
- Max Op. Relative Humidity (%) 90% @ 60°C
- NEMA Rating NEMA 1
- Number of Pins 5
- Quick Disconnect Type No QD
- Repeatability (µs) 50 to 250
- Output NPN
- Output Type (Specific) Dual Discrete
- Connection Cable
- Fiber Type Plastic and Glass
- Color LED - Amplifiers Red
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Housing Style DIN Rail
- Power DC
- Cable Length (m) 2
- Degree of protection IP50 NEMA 1
- Material thermoplastic housing
- Light Color Visible red
- Equivalent to DFG3ND2M
- Compliant with standard(s) cULus CE
- Order code / Manufacturer SKU 87581
- Product series / family name Fiber optic amplifiers
- Sub-range name DF-G3 Expert series
- Shape Rectangular
- Ambient air temperature for operation -10...+55 °C
- Primary brand Banner Engineering
- Functions Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Mounting mode DIN rail mounting
- Main function Amplifier for sensor
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Display LED 4 digits x 2 (red + green)
- Wavelength 635 nm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Digital outputs 2 x digital outputs (NPN transistors)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3-ND-2M on Powermatic Associates is $238.00. Order now.
About the product
Banner Engineering DF-G3-ND-2M is an amplifier for sensors, specifically designed for long-range fiber optic sensor applications. It features a DIN rail mount and is housed in thermoplastic material. This part operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. It emits a visible red light with a wavelength of 635 nm and boasts a rapid response time of 0.5ms. The DF-G3-ND-2M is equipped with two digital outputs (NPN transistor; complementary NO/NC) and is characterized by its rectangular shape. Part of the DF-G3 Expert series, it incorporates a TEACH mode high-power design for enhanced performance. Connection is facilitated through a pre-wired 6.5ft / 2m cable terminated with bare end flying leads, and it requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
