DF-G1-NS-Q3 Banner Sensor Accessories

DF-G1-NS-Q3 on Powermatic Associates
Banner

Part#:DF-G1-NS-Q3

Manufacturer:Banner

Category:Sensor Accessories

Alt. Part#:19352

Product Lifecycle:Active

Get a quick Quote!

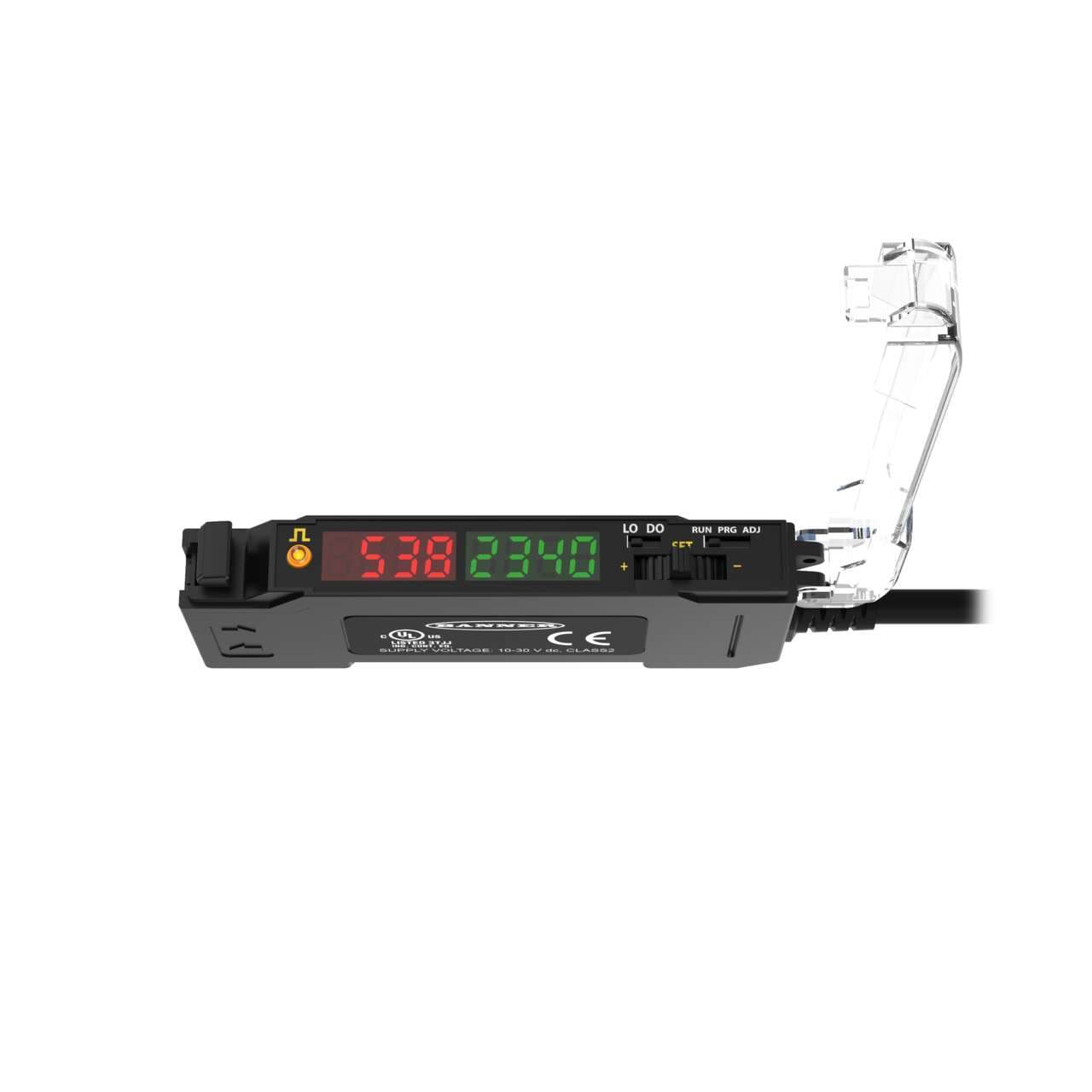

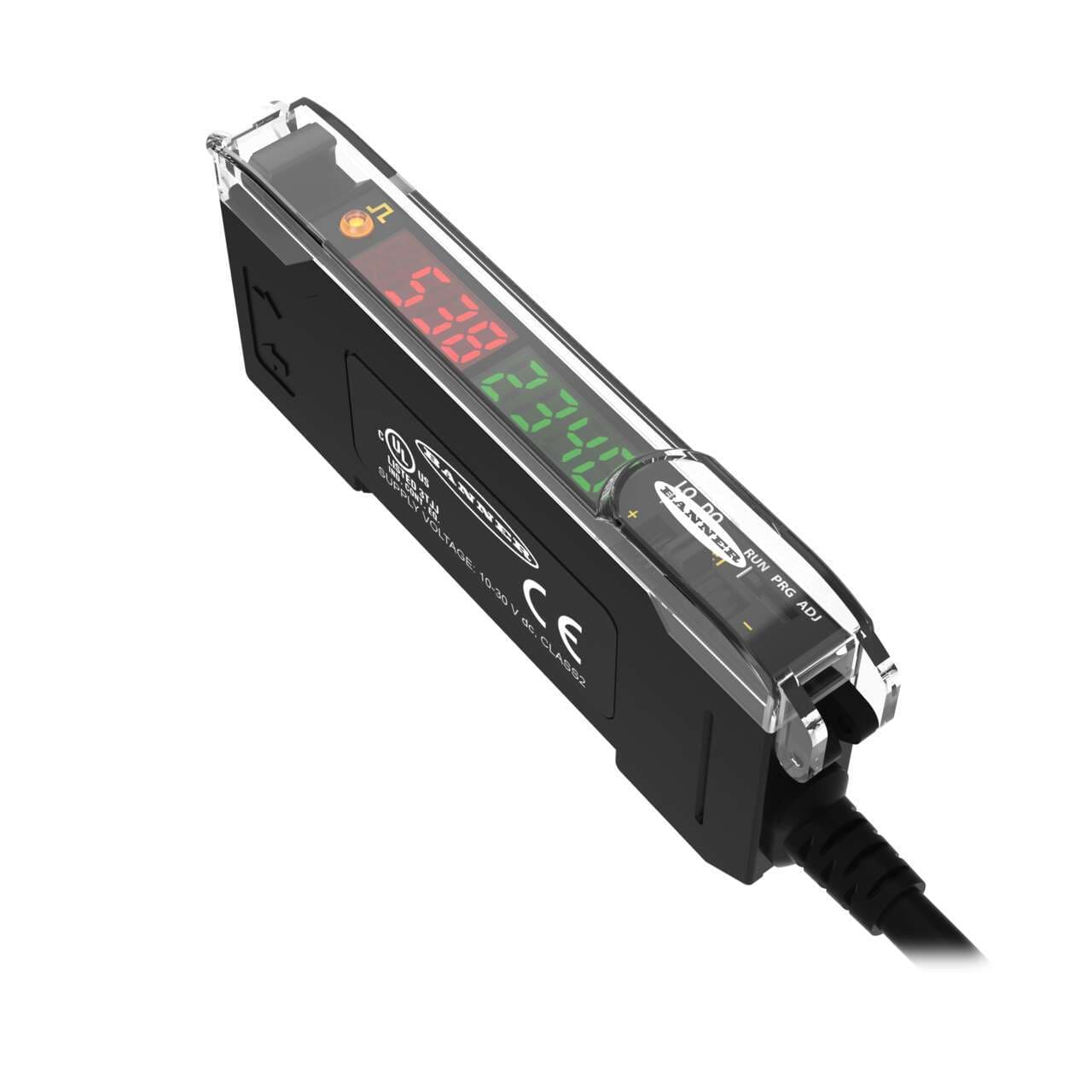

DF-G1 Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output: 1 NPN; 150 mm (6 in) 4-pin M8 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G1-NS-Q3 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    81.7826376 g
  • Country Of Origin
    CN
  • Housing Material
    Thermoplastic
  • IO Link
    No
  • Feature: Audible
    No
  • Special Feature: Bussable Power
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Minimum response time (ms)
    .2
  • Delay at Power-up (ms)
    500
  • Indicator Display Type
    Dual Digital Displays
  • Intrinsically Safe
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Adjustments
    Teach Button
  • Crosstalk Avoidance
    Yes
  • Special Feature: Remote Teach
    Yes
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • Min Op. Temperature (°C)
    -10
  • Max Op. Temperature (°C)
    55
  • NEMA Rating
    NEMA 1
  • Number of Pins
    4
  • IP Rating
    IP50
  • Repeatability (µs)
    66 to 100
  • Output Type (Specific)
    Single Discrete
  • Quick Disconnect Type
    M8 (Pico)
  • Cable Length (m)
    0.15
  • Primary Housing Material
    Thermoplastic
  • Fiber Type
    Plastic and Glass
  • Power
    DC
  • Connection
    Pigtail QD
  • Output
    NPN
  • Color LED - Amplifiers
    Red
  • Input/Output
    Discrete
  • Housing Style
    DIN Rail
  • Main function
    Amplifier for sensor
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    660 nm
  • Primary brand
    Banner Engineering
  • Light Color
    Visible red
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Equivalent to
    DFG1NSQ3
  • Functions
    Dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
  • Digital outputs
    1 x digital output (NPN transistor)
  • Material
    thermoplastic housing PVC connector
  • Design
    light-intensity receiver
  • Degree of protection
    IP50 NEMA 1
  • Compliant with standard(s)
    cULus CE
  • Shape
    Rectangular
  • Ambient air temperature for operation
    -10...+55 °C
  • Order code / Manufacturer SKU
    19352
  • Mounting mode
    DIN rail mounting
  • Product series / family name
    Fiber optic amplifiers
  • Sub-range name
    DF-G1 Expert series
  • Display
    LED 4 digits x 2 (red + green)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


DF-G1-NS-Q3 Description

Banner Engineering DF-G1-NS-Q3 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 660 nm. It has a rapid response time of 0.2ms / 0.0002 s and includes 1 x digital output (NPN transistor). The DF-G1-NS-Q3, part of the DF-G1 Expert series, is rectangular in shape and incorporates dual-display fiber optic sensor amplifier functions. It is designed with TEACH mode for ease of use and connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. The supply voltage required is 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
