CSS-M12F41M12M41M12F41 Banner Splitters

CSS-M12F41M12M41M12F41 on Powermatic Associates
Banner

Part#:CSS-M12F41M12M41M12F41

Manufacturer:Banner

Alt. Part#:20578

Product Lifecycle:Active

Get a quick Quote!

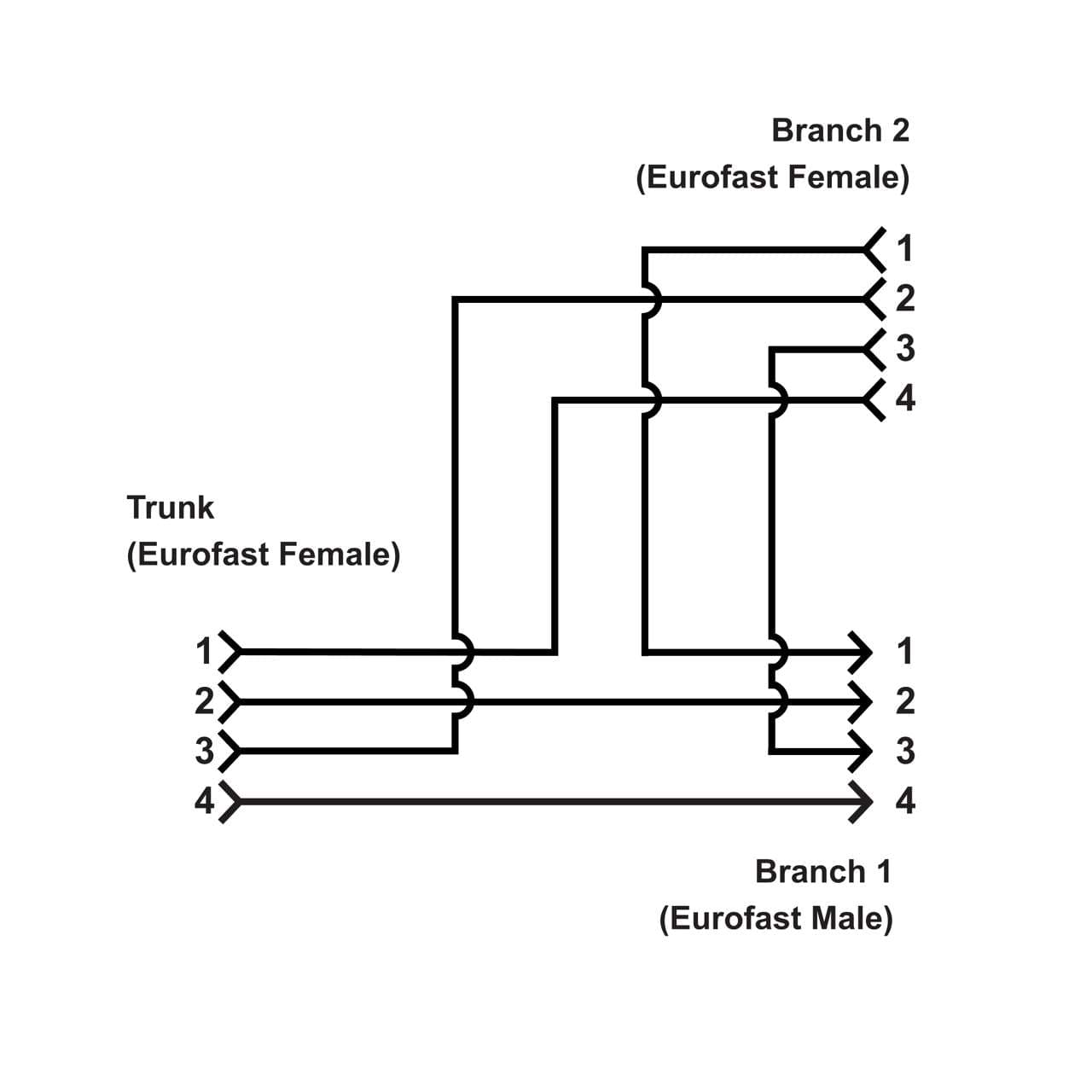

M12 QD Splitter Cable; M12 QD Female 0.3 m Trunk_4-pin; M12 QD Male 0.3 m Branch 1_4-pin; M12 QD Female 0.3 m Branch 2_4-pin

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSS-M12F41M12M41M12F41 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Splitter Function
    Custom
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Number of Conductors
    4, 4
  • Splitter Cable Diameter
    6, 6
  • Splitter Branches: Connector Type
    M12F, M12F
  • Primary AWG
    22
  • Splitter Branches Length (m)
    0.3, 0.3
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Primary Orientation
    Straight
  • Primary Number of Conductors
    4
  • Primary Gender
    Female
  • Primary Coupling Method
    M12 Single Key
  • Current Rating (A)
    2.0
  • Primary Connector Type
    EURO
  • IP Rating
    IP68
  • Maximum Temp. (°C)
    105
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Minimum Temp. (°C)
    -40
  • Outside Cable Diameter (mm)
    6
  • Coupling Material/Color
    Nickel Plated Brass
  • Cable Jacket Material
    PVC
  • Trunk Length (m)
    0.3
  • Number of Contacts
    4
  • Cordset Length (m)
    0.6
  • Shield/No Shield
    No Shield
  • Cable Jacket Color
    Yellow
  • Connector Body Material/Color
    PUR Black
  • Number of Connectors
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSS-M12F41M12M41M12F41 Description

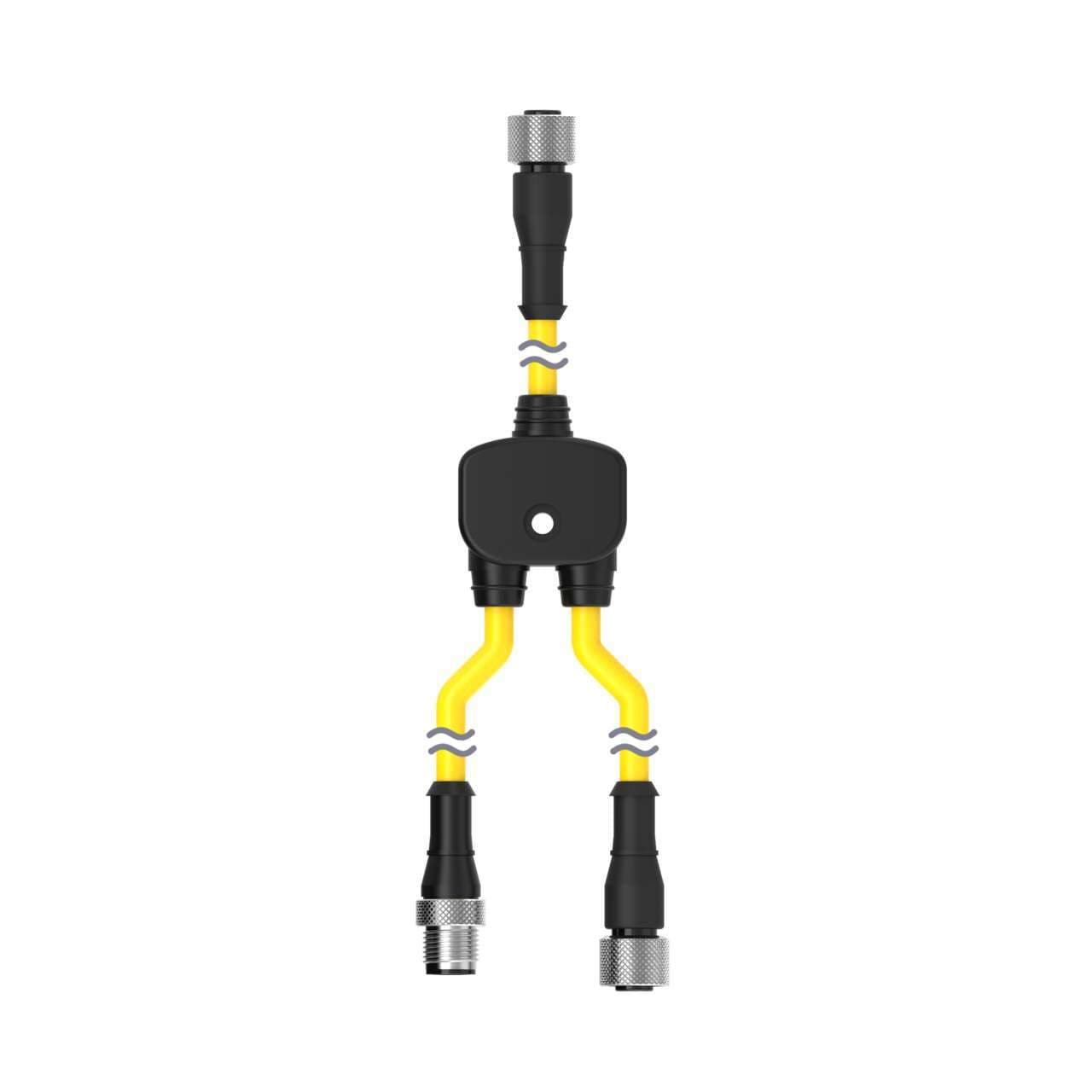

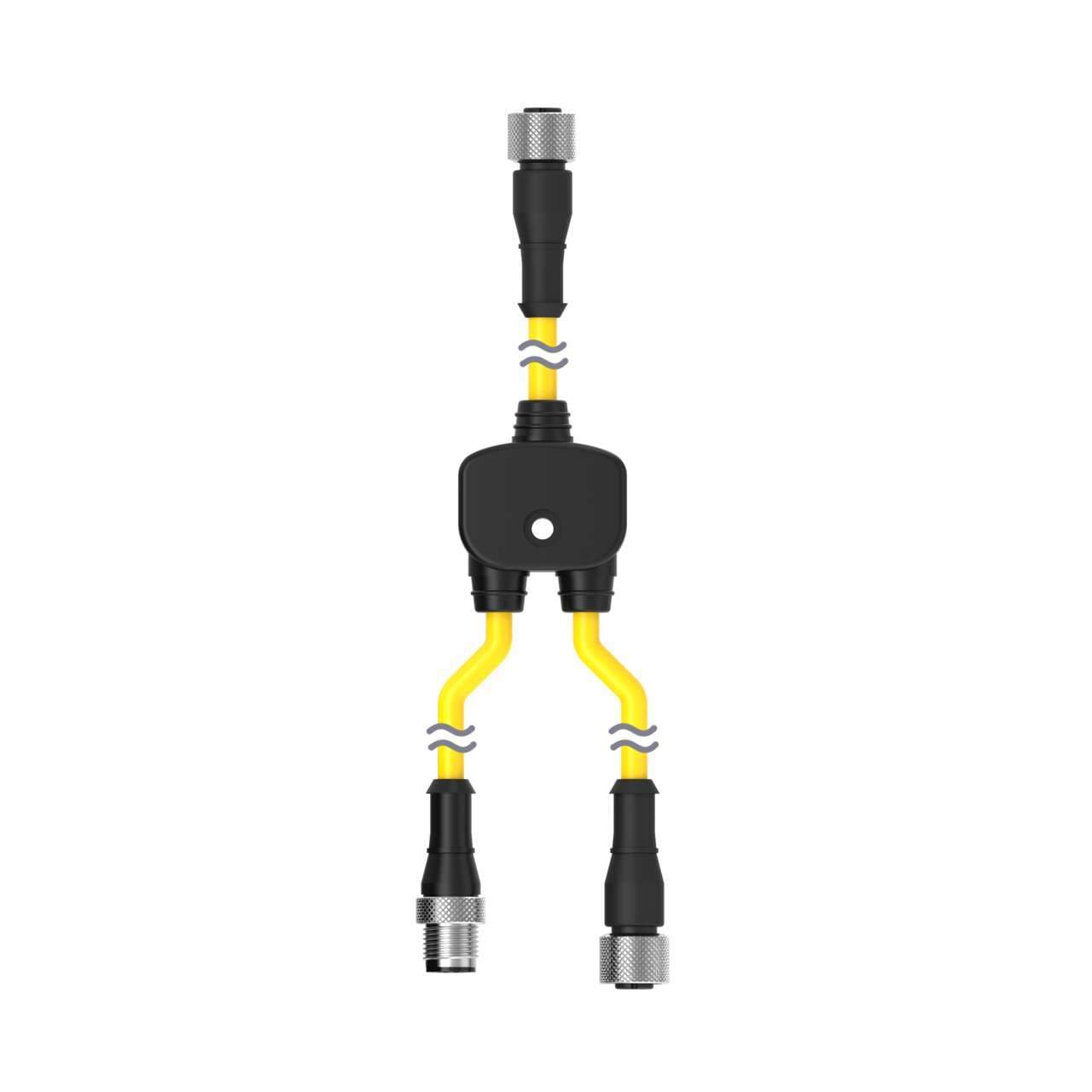

Banner Engineering CSS-M12F41M12M41M12F41 is a Y-shaped splitter cable designed for various automation applications. It features a PVC cable with a yellow housing and is equipped with a 4-pin female Euro-style M12 quick disconnect (QD) connector on a 1ft / 30cm trunk, and two 4-pin Euro-style M12 male QD connectors on 1ft / 30cm branches. The cable diameter is 6mm. This splitter operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68. It is rated for a voltage of 60Vac and 75Vdc.

Related documents CSS-M12F41M12M41M12F41 Specs

CSS-M12F41M12M41M12F41 CSS-M12F4xM12M41M12F41-1630955499996.stp

Manufacturer warranty

$92.00

Request a quote, and we will send availability within minutes.

Select Qty:

$92.00

$92.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
