Powermatic Associates Logo

CSS-M12F81M12M81M12F81 Banner Splitters

CSS-M12F81M12M81M12F81 on Powermatic Associates
Banner
  • CSS-M12F81M12M81M12F81
  • CSS-M12F81M12M81M12F81

Part#:CSS-M12F81M12M81M12F81

Alt. Part#:20606

Manufacturer:Banner

Category:Splitters

Product Lifecycle:Active

Product description

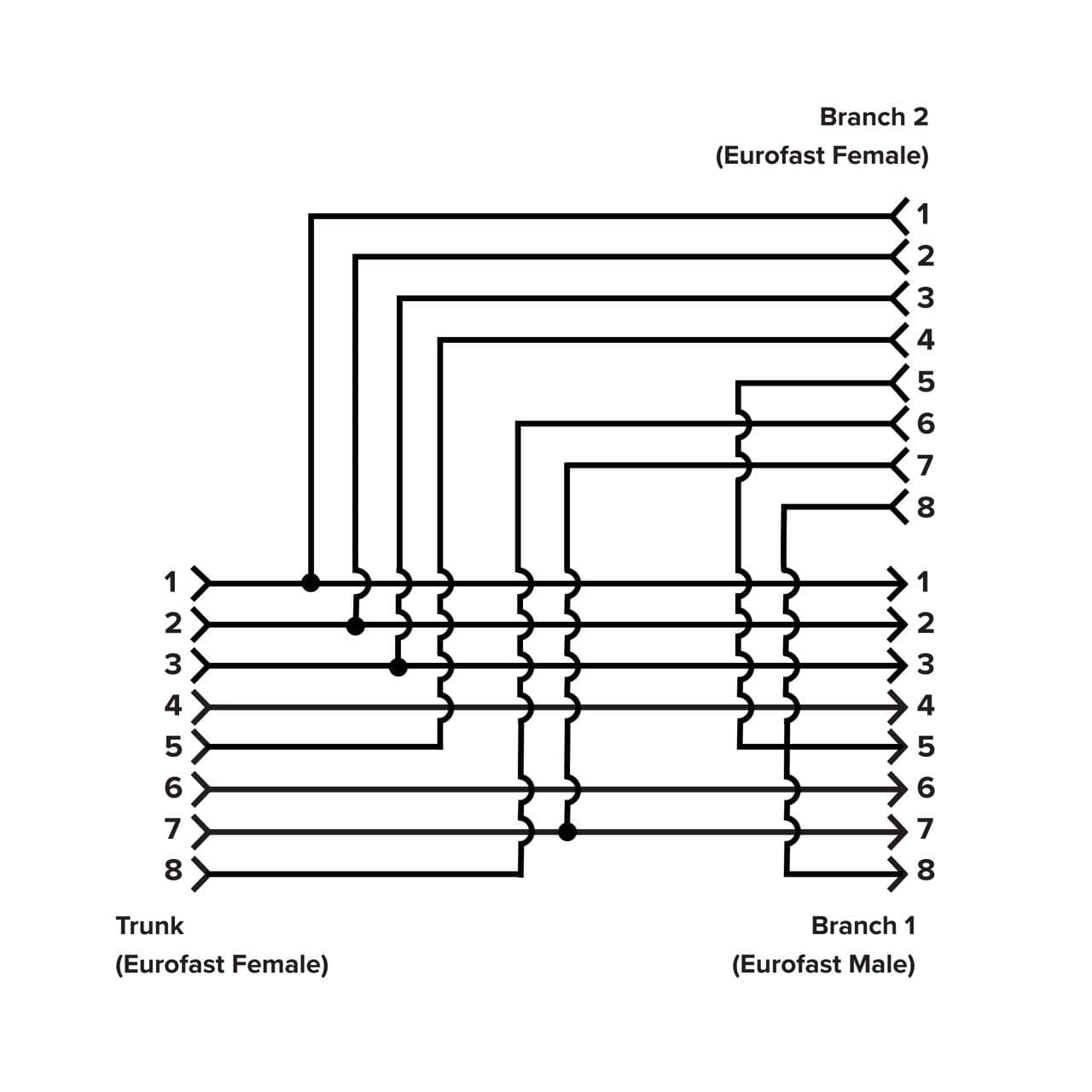

M12 QD Splitter Cable; M12 QD Female 0.3 m Trunk_8-pin; M12 QD Male 0.3 m Branch 1_8-pin; M12 QD Female 0.3 m Branch 2_8-pin

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    TW
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Splitter Function
    Custom
  • Splitter Branches Length (m)
    0.3, 0.3
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Splitter Branches: Connector Type
    M12F, M12F
  • Splitter Branches: Number of Conductors
    8, 8
  • Splitter Branches: Orientation
    Straight, Straight
  • Primary Orientation
    Straight
  • Splitter Cable Diameter
    6.1, 6.1
  • Primary AWG
    22
  • Primary Gender
    Female
  • IP Rating
    IP68
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Primary Coupling Method
    M12 Single Key
  • Primary Number of Conductors
    8
  • Minimum Temp. (°C)
    -40
  • Primary Connector Type
    EURO
  • Coupling Material/Color
    Nickel Plated Brass
  • Current Rating (A)
    2.0
  • Maximum Temp. (°C)
    105
  • Shield/No Shield
    No Shield
  • Cordset Length (m)
    0.6
  • Trunk Length (m)
    0.3
  • Outside Cable Diameter (mm)
    6.1
  • Number of Contacts
    8
  • Cable Jacket Color
    Yellow
  • Cable Jacket Material
    PVC
  • Connector Body Material/Color
    PUR Black
  • Number of Connectors
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSS-M12F81M12M81M12F81 on Powermatic Associates is $100.00. Order now.

About the product

Banner Engineering CSS-M12F81M12M81M12F81 is a Y-shaped splitter cable designed for various automation applications. It features a PVC cable with a diameter of 6.1mm and a yellow housing. This splitter operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for demanding environments. It is equipped with an 8-pin Euro-style M12 female quick disconnect (QD) connector on a 1ft / 30cm trunk, an 8-pin Euro-style M12 male QD connector on a 1ft / 30cm branch 1, and an 8-pin Euro-style M12 female QD connector on a 1ft / 30cm branch 2. The rated voltage for AC applications is 60Vac, while for DC applications, it is 75Vdc.

CSS-M12F81M12M81M12F81 Related Documents

CSS-M12FXXM12MXXM12FXX-1630955552642.pdfCSS-M12FXXM12MXXM12FXX-1630955552640.stp

Manufacturer warranty

CSS-M12F81M12M81M12F81 Banner

$100.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$100.00

$100.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
