Part#:CSS-M12F83M12M81M12F81

Manufacturer:Banner

Alt. Part#:25472

Product Lifecycle:Active

Get a quick Quote!

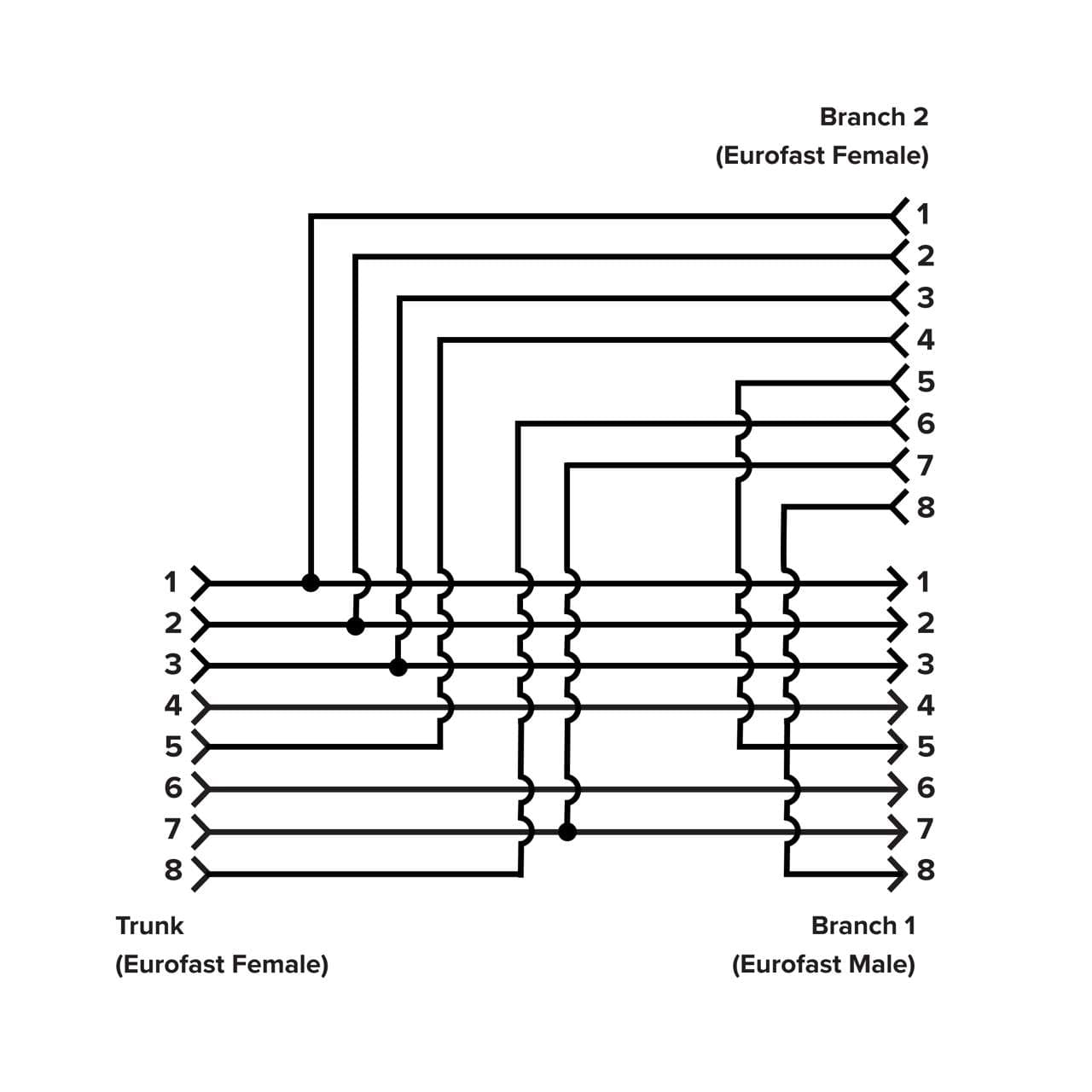

M12 QD Splitter Cable; M12 QD Female 0.91 m Trunk_8-pin; M12 QD Male 0.3 m Branch 1_8-pin; M12 QD Female 0.3 m Branch 2_8-pin

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSS-M12F83M12M81M12F81 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    TW
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Splitter Function
    Custom
  • Splitter Branches Length (m)
    0.3, 0.3
  • Splitter Branches: Number of Conductors
    8, 8
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Connector Type
    M12F, M12F
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Primary AWG
    22
  • Primary Number of Conductors
    8
  • Primary Orientation
    Straight
  • Splitter Cable Diameter
    6.1, 6.1
  • Primary Gender
    Female
  • Primary Connector Type
    EURO
  • Primary Coupling Method
    M12 Single Key
  • IP Rating
    IP68
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    2.0
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    0.91
  • Cordset Length (m)
    1.21
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    6.1
  • Cable Jacket Color
    Yellow
  • Cable Jacket Material
    PVC
  • Number of Connectors
    3
  • Number of Contacts
    8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSS-M12F83M12M81M12F81 Description

Banner Engineering CSS-M12F83M12M81M12F81 is a Y-shaped splitter designed for various automation applications. It features a PVC cable with a diameter of 6.1mm and a yellow housing. This splitter operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for harsh environments. It is equipped with an 8-pin Euro-style M12 female quick disconnect (QD) connector on a 3ft / 91cm trunk, an 8-pin Euro-style M12 male connector on a 1ft / 30cm branch, and an 8-pin Euro-style M12 female connector on another 1ft / 30cm branch. The rated voltage for AC applications is 60Vac, while for DC applications, it is 75Vdc.

Related documents CSS-M12F83M12M81M12F81 Specs

CSS-M12F83M12M81M12F81 CSS-M12FXXM12MXXM12FXX-1630955775172.stp
CSS-M12F83M12M81M12F81 CSS-M12FXXM12MXXM12FXX-1630955775176.pdf
