Part#:CSA-FM1250.4M1241.6M831.6

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

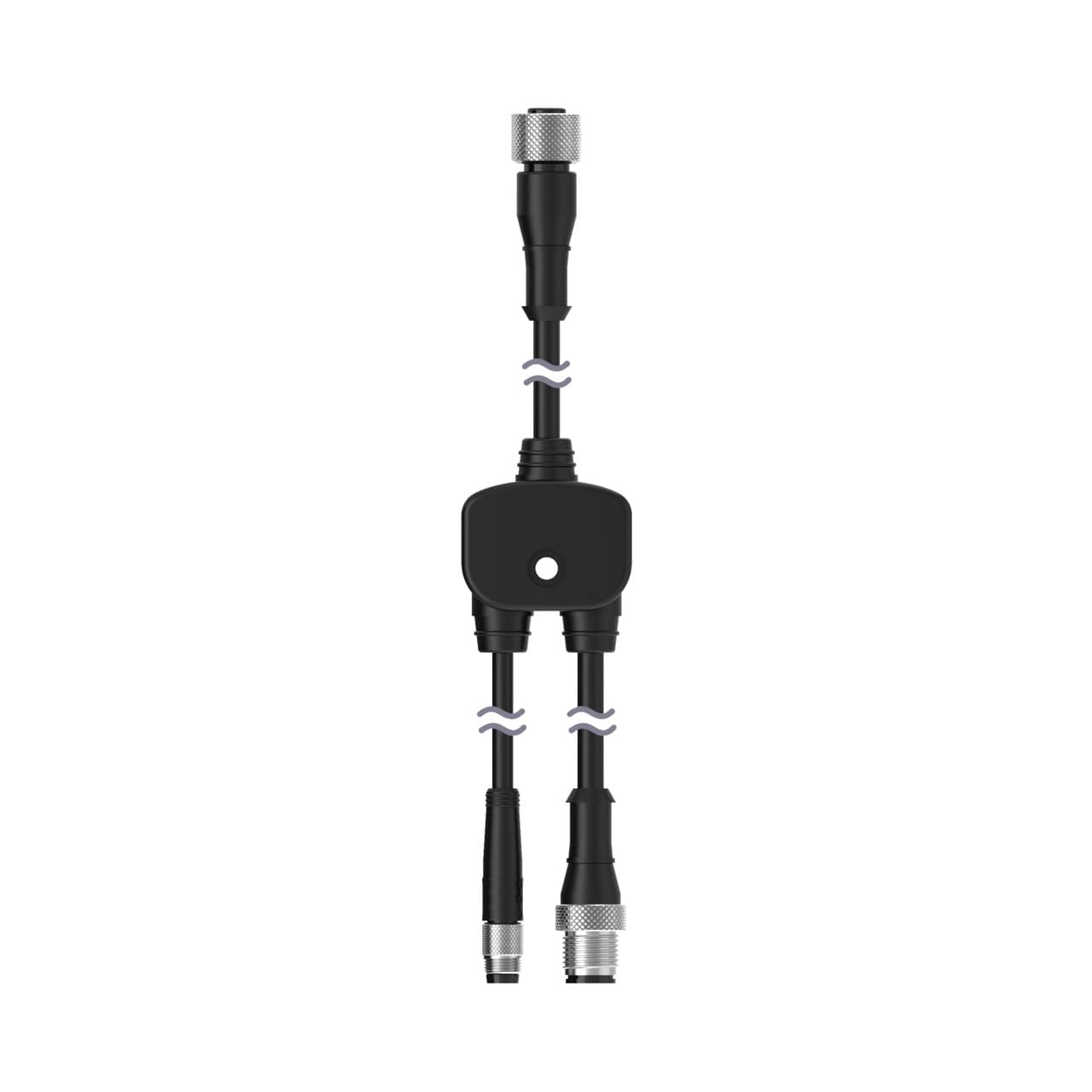

Banner Engineering CSA-FM1250.4M1241.6M831.6 is a Y-shaped splitter cable designed for diverse automation applications. It features a PVC cable with a black housing and operates within an ambient air temperature range of -40 to +105°C. This splitter is equipped with a 5-pin Euro-style M12 female connector on a 13cm trunk, a 5-pin Euro-style M12 female connector on a 50cm branch, and a 5-pin Pico-style M8 female connector on another 50cm branch. The cable has a diameter of 5.5mm. It is rated for 125Vac and offers a degree of protection of IP67, ensuring its protection against dust and water ingress.

Product Details

  • Splitter Function
    Dual
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Splitter Branches: AWG
    22, 24
  • Splitter Branches Length (m)
    0.5, 0.5
  • Splitter Branches: Number of Conductors
    4, 2
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Coupling Method
    M12 Single Key, M8 Thread
  • Splitter Branches: Connector Type
    M12M, M8M
  • Splitter Cable Diameter
    5.5, 4.4
  • Primary AWG
    22
  • Primary Orientation
    Straight
  • Primary Number of Conductors
    5
  • Primary Gender
    Female
  • IP Rating
    IP67
  • Coupling Material/Color
    Nickel Plated Brass
  • Primary Connector Type
    EURO
  • Current Rating (A)
    2.0
  • Primary Coupling Method
    M12 Single Key
  • Voltage Rating (V)
    125 V ac/dc
  • Minimum Temp. (°C)
    -40
  • Maximum Temp. (°C)
    105
  • Shield/No Shield
    No Shield
  • Number of Connectors
    3
  • Cable Jacket Color
    Black
  • Number of Contacts
    5
  • Connector Body Material/Color
    PUR Black
  • Trunk Length (m)
    0.13
  • Cordset Length (m)
    0.63
  • Cable Jacket Material
    PVC
  • Outside Cable Diameter (mm)
    5.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
