CSA4-M1251M1251M1251M1251 Banner Splitters
Part#:CSA4-M1251M1251M1251M1251
Manufacturer:Banner
Alt. Part#:805471
Product Lifecycle:Active
Get a quick Quote!

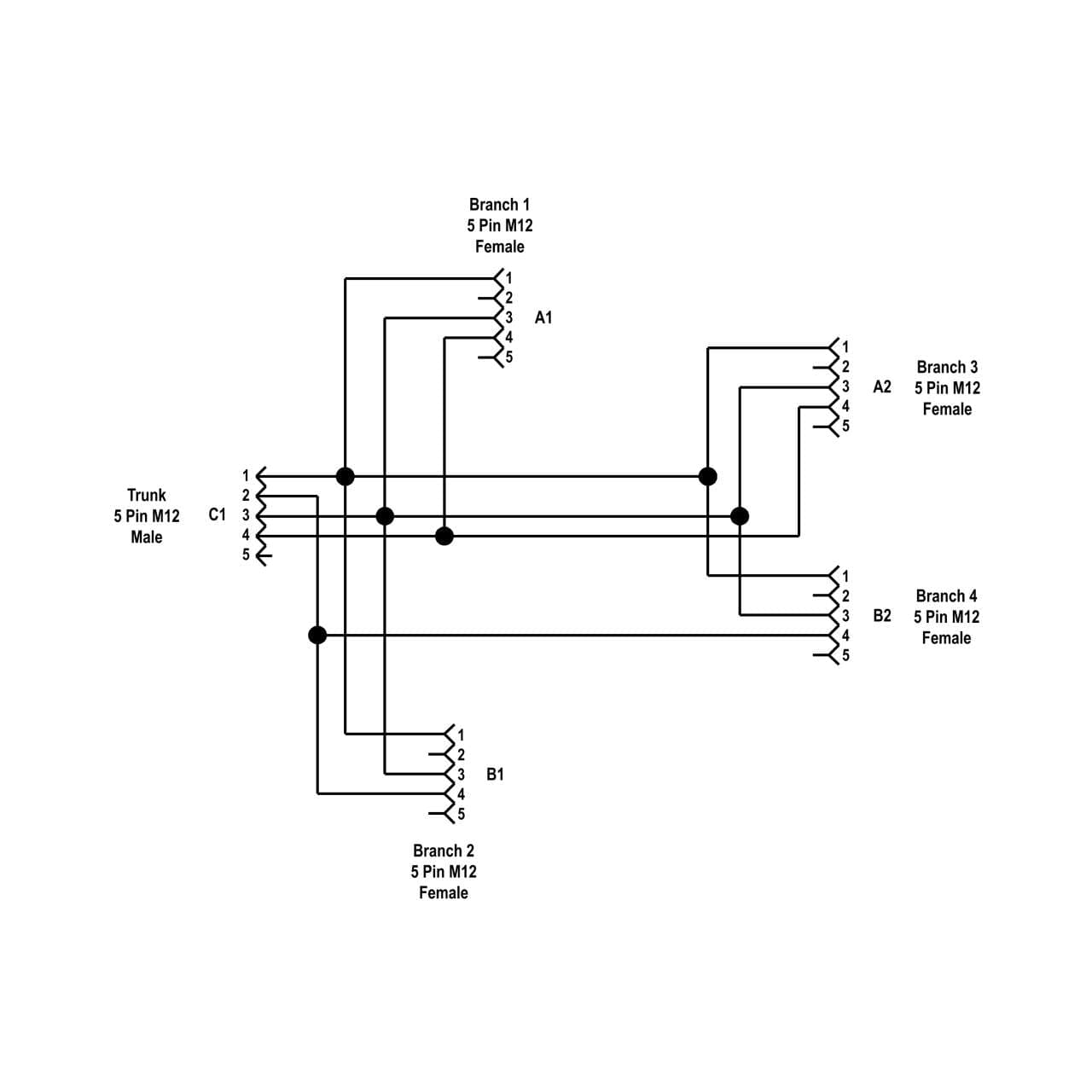

M12 QD Splitter Cable; 5-pin Straight Male 0.3 m (1 ft) Trunk; Four Straight 5-pin Female Branches 0.3 m (1 ft); Black Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSA4-M1251M1251M1251M1251 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 158.7572 g
- Country Of Origin TW
- Splitter Function Custom
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key, M12 Single Key, M12 Single Key
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Splitter Branches Length (m) 0.3, 0.3, 0.3, 0.3
- Splitter Branches: Connector Type M12F, M12F, M12F, M12F
- Splitter Branches: AWG 22, 22, 22, 22
- Splitter Branches: Number of Conductors 4, 4, 4, 4
- Splitter Branches: Orientation Straight, Straight, Straight, Straight
- Secondary AWG 22
- Secondary Gender Female
- Splitter Cable Diameter 6, 6, 6, 6
- Secondary Orientation Straight
- Secondary Number of Conductors 4
- Secondary Coupling Method M12 Single Key
- Primary Number of Conductors 4
- Secondary Connector Type EURO
- Primary AWG 22
- Primary Orientation Straight
- IP Rating IP67
- Primary Gender Male
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- Voltage Rating (V) 250 V ac/300 V dc
- Minimum Temp. (°C) -40
- Current Rating (A) 4.0
- Maximum Temp. (°C) 105
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Trunk Length (m) 0.3
- Cordset Length (m) .632
- Outside Cable Diameter (mm) 6
- Connector Body Material/Color PUR Black
- Cable Jacket Color Black
- Number of Connectors 5
- Cable Jacket Material PVC
- Number of Contacts 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CSA4-M1251M1251M1251M1251 Description
Banner Engineering CSA4-M1251M1251M1251M1251 is a 1-to-4 splitter cable designed for various automation applications. It features a PVC cable with a nickel-plated brass coupling nut, ensuring durability and a secure connection. The splitter operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. It is capable of handling rated voltages up to 250Vac and 300Vdc. The connection setup includes a 4-pin Euro-style M12 male connector on a 1ft / 30cm trunk and four 4-pin Euro-style M12 female connectors on 1ft / 30cm branches, facilitating easy and versatile connections. The cable has a diameter of 6mm and comes in a black housing, ensuring it fits seamlessly into a variety of setups without compromising on aesthetics or functionality.
