BA23S Banner Fiber Optic Sensors

BA23S on Powermatic Associates
Banner

Part#:BA23S

Alt. Part#:17210

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

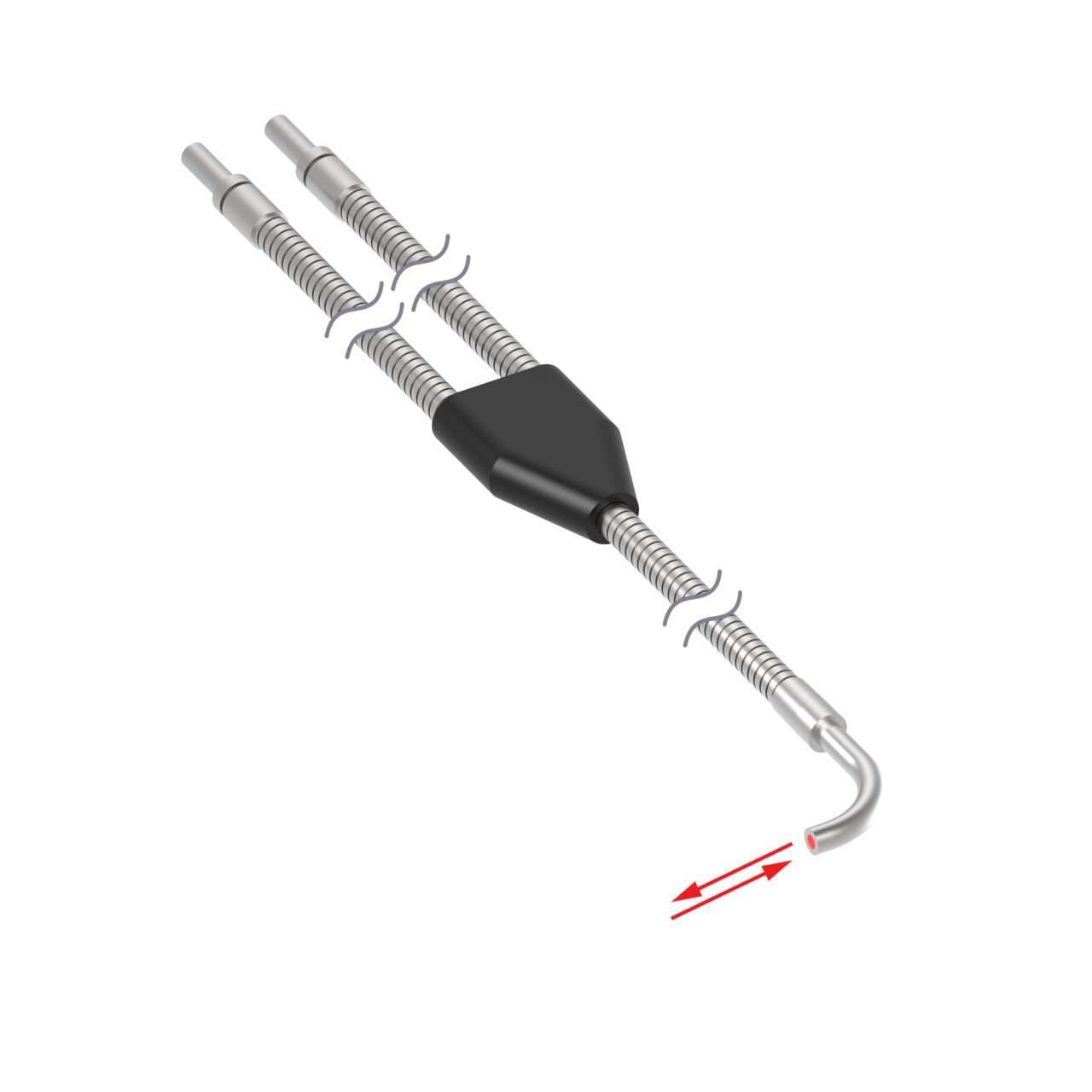

Diffuse Mode Bifurcated Glass Fiber 36 long; 0.125 dia. Bundle; Stainless Steel Sheath; Right angle sensing tip

Product Details

  • Weight
    121.109064 g
  • Country Of Origin
    US
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    4.8 mm
  • Max Distance: DF-G1 (mm)
    No Data
  • Termination Type
    Glass Fiber Sensors
  • Feature: Chemical Resistant
    No
  • Termination
    Terminated
  • Max Temp ( °C)
    249
  • Fiber Sensing End Size
    4.8 mm
  • Fiber Length (m)
    0.914
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Optic Type
    Glass
  • Housing Style
    Round
  • Max Distance: DF-G3 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    3110.34
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Application: Liquid Level
    No
  • Integrated Lens
    No
  • Minimum Bend Radius (mm)
    25
  • Flex Relief
    No
  • Retractile
    No
  • Core Diameter (mm)
    3.2
  • Sensing End Segment 1
    Angle
  • Sensing Mode (General)
    Diffuse
  • Beam Exit
    Right Angle
  • Sensing Mode (Detailed)
    Reflective
  • Quantity Included
    1
  • Fiber Sensing End Tip
    Angle
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sub-range name
    Glass fiber series
  • Ambient air temperature for operation
    +249 °C
  • Main function
    Fiber sensor
  • Product series / family name
    Fiber sensors
  • Shape
    Cylindrical (smooth) end tip
  • Diameter
    4.75mm end size 3.2mm fiber core
  • Functions
    Fiber optic sensor
  • Primary brand
    Banner Engineering
  • Order code / Manufacturer SKU
    17210
  • Length
    3ft / 910mm
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
  • Design
    diffuse-reflective system Bifurcated fiber

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BA23S on Powermatic Associates is $170.00. Order now.

About the product

Banner Engineering BA23S, part of the Glass fiber series, is a fiber optic sensor designed with a diffuse-reflective system. It features a flexible, bifurcated fiber with side/right-angled sensing for versatile installation options. The sensing end is made of stainless steel, while the fiber core is encased in stainless flexible tubing with a glass fiber sheath, ensuring durability and protection. The sensor has a cylindrical (smooth) end tip with a diameter of 4.75mm at the end and a 3.2mm fiber core. It is designed to operate effectively in ambient air temperatures up to +249°C and has a total length of 3ft / 910mm.
