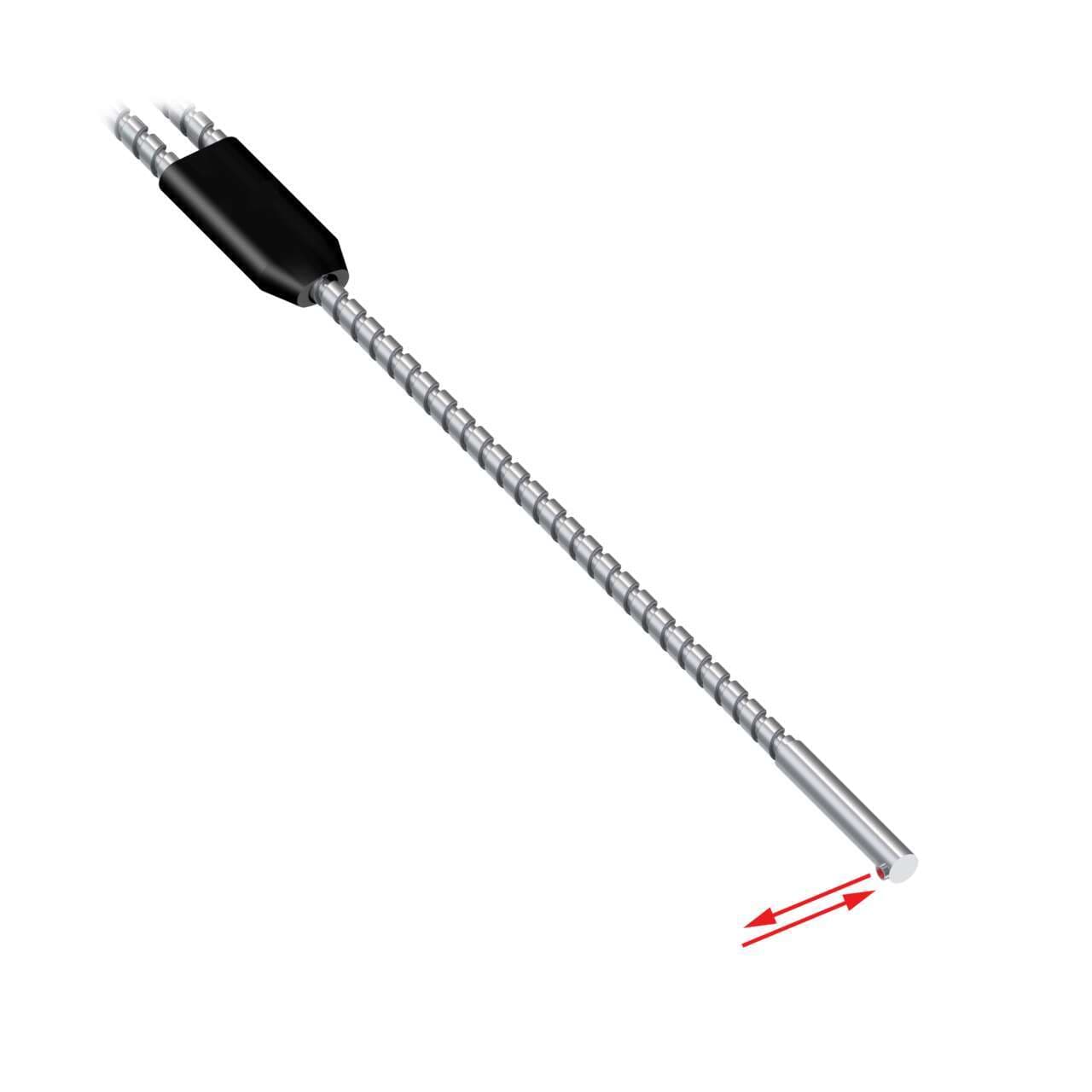

BA1.53SMTA Banner Fiber Optic Sensors

BA1.53SMTA on Powermatic Associates
Banner

Part#:BA1.53SMTA

Alt. Part#:20879

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

Diffuse-Mode Bifurcated Glass Fiber 36 long; 0.09 dia. Bundle; Stainless Steel Sheath; Tight Right-Angle sensing tip

Product Details

  • Weight
    94.800728 g
  • Country Of Origin
    US
  • Feature: Chemical Resistant
    No
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    7.1 mm
  • Application: Liquid Level
    No
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Integrated Lens
    No
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    1597
  • Termination Type
    Glass Fiber Sensors
  • Max Temp ( °C)
    249
  • Minimum Bend Radius (mm)
    25
  • Termination
    Terminated
  • Flex Relief
    No
  • Core Diameter (mm)
    2.3
  • Retractile
    No
  • Sensing End Segment 1
    Ferrule
  • Fiber Sensing End Size
    7.1 mm
  • Sensing End Segment 2
    Sideview
  • Fiber Length (m)
    0.914
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Sensing End Tip
    Sideview
  • Sensing End Material (Specific)
    Stainless Steel
  • Beam Exit
    Right Angle
  • Quantity Included
    1
  • Fiber Optic Type
    Glass
  • Sensing Mode (General)
    Diffuse
  • Housing Style
    Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BA1.53SMTA on Powermatic Associates is $191.00. Order now.

About the product

Banner Engineering BA1.53SMTA is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system and bifurcated fiber side with a right-angled sensing approach. It features a stainless steel sensing end, glass fiber, and a stainless steel monocoil construction. The sensor has a 2.3mm fiber core diameter and comes in a cylindrical (smooth) end tip shape. It measures 3ft or 910mm in length. This sensor is capable of operating in ambient air temperatures up to +249°C.
