BA1.53SMETA Banner Fiber Optic Sensors

BA1.53SMETA on Powermatic Associates
Banner

Part#:BA1.53SMETA

Alt. Part#:21085

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

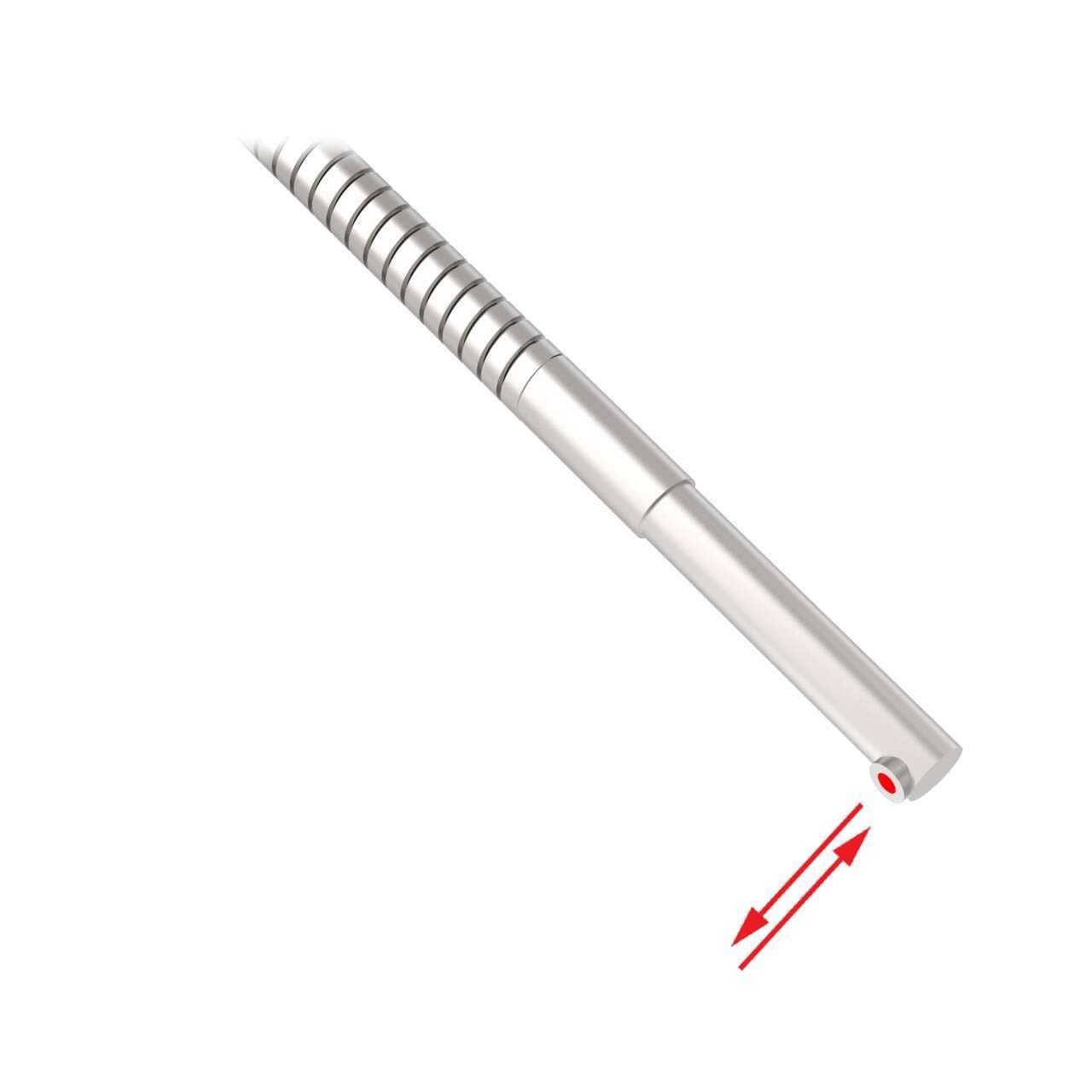

Glass Fiber; Diffuse Mode 2.29 mm dia. Bundle; Stainless Steel Sheathing; 0.91 m long; 25.4 mm long Probe, Side Exit sensing

Product Details

  • Weight
    94.347136 g
  • Country Of Origin
    US
  • Tariff Fiber Meters (fbm)
    1597
  • Termination
    Terminated
  • Quantity Included
    1
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    4.8 mm
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Glass Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Max Temp ( °C)
    249
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Minimum Bend Radius (mm)
    25
  • Core Diameter (mm)
    1.5
  • Retractile
    No
  • Flex Relief
    No
  • Sensing End Segment 1
    Ferrule
  • Sensing End Segment 2
    Sideview
  • Fiber Sensing End Size
    4.8 mm
  • Fiber Length (m)
    0.914
  • Sensing Mode (General)
    Diffuse
  • Fiber Sensing End Tip
    Sideview
  • Sensing Mode (Detailed)
    Reflective
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Beam Exit
    Right Angle
  • Fiber Optic Type
    Glass
  • Housing Style
    Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BA1.53SMETA on Powermatic Associates is $204.00. Order now.

About the product

Banner Engineering BA1.53SMETA is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system for flexible fiber side / right-angled sensing. It features a stainless steel sensing end and a glass fiber with a stainless flexible tubing fiber sheath. The sensor has a cylindrical (smooth) end tip with a diameter of 4.75mm at the end and a 2.3mm fiber core. It measures 3ft / 910mm in length. This sensor is suitable for operation in ambient air temperatures up to +249°C.
