Sensors & Transducers - Turck

Inductive Sensor, Monitoring Kit for Power Clamps, Rated switching distance 2 mm, Cable length (L) 0.16 m, Non-flush, Rectangular, height 18 mm, Plastic, PP GR-20, Mounting instructions and minimum distances acc. to BTM specification must be observed when mounted in metal, Blind hole: Ø 10 mm ; depth 4 mm, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, 2 x NO contact, PNP output, DC 4-wire, 10…30 VDC

Pressure Transmitter, With Current Output (2-Wire), , Compact and robust design, Pressure connection with integrated peak pressure aperture, Minimum influence of temperature on accuracy within the entire temperature range of -40…+125°C, Excellent EMC properties, Pressure range 0…300 psi rel.

Accessories, Mounting Bracket, For Profile Cylinders, Mounting on profile cylinders, Cylinder diameter: 32…50 mm, Material: Aluminum

Inductive Sensor, With Increased Switching Distance, Rated switching distance 4 mm, Flush, M12 × 1 threaded barrel, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NC contact, PNP output, M12 x 1 male connector

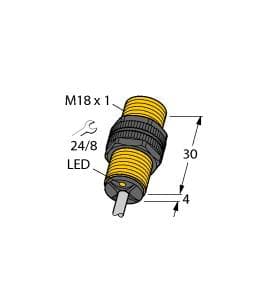

Inductive Sensor, Rated switching distance 5 mm, Flush, Threaded barrel, M18 x 1, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector

Accessories, Actuation kit (puck), , End position damped, Switch pins made of stainless steel (1.4305), For clockwise or counterclockwise rotating drives, Displays rotatable by 90 °, Hole pattern on flange: 30 × 80 mm (30 × 130 mm), Connection shaft (shaft extension) height: 20 mm (30 mm)/Ø: max. 30 mm, Maximum slide ring diameter: 34 mm

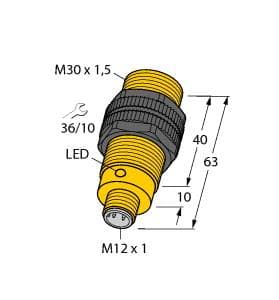

Inductive Sensor, With Increased Switching Distance, Rated switching distance 15 mm, Flush, Threaded barrel, M30 x 1.5, Long version, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector

Magnetic Field Sensor, Magnetic-inductive Proximity Sensor, Rated switching distance 78 mm, M8 × 1 threaded barrel, Stainless steel, 1.4427 SO, Rated operating distance 78 mm with DMR31-15-5 magnet, DC 3‐wire, 10…30 VDC, NO contact, PNP output, Male connector, M8 x 1

Magnetic Field Sensor, Magnetic-inductive Proximity Sensor, Rated switching distance 78 mm, M8 × 1 threaded barrel, Stainless steel, 1.4427 SO, Rated operating distance 78 mm with DMR31-15-5 magnet, DC 3-wire, 10…30 VDC, NO contact, NPN output, M12 x 1 connector

Pressure Transmitter, With Voltage Output (3-Wire), , Compact and robust design, Pressure connection with integrated peak pressure aperture, Minimum influence of temperature on accuracy within the entire temperature range of -40…+125°C, Excellent EMC properties, Pressure range 0…60 psi rel.
