NI4-DSU35TC-2AD4X2 Turck Inductive Sensors

NI4-DSU35TC-2AD4X2 on Powermatic Associates
Turck

Part#:NI4-DSU35TC-2AD4X2

Alt. Part#:4430130

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

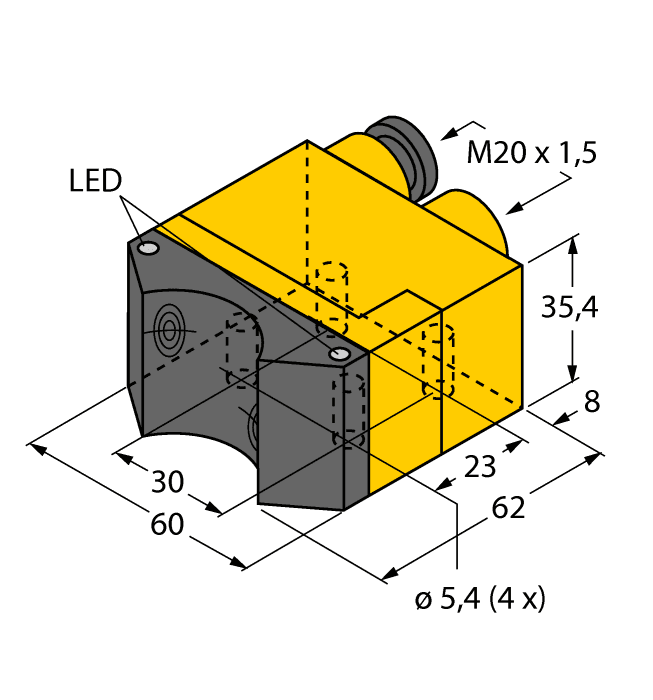

Inductive Sensor, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Two outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, DC 2-wire , 10…65 VDC, 2 x NO contact, Terminal chamber

Product Details

  • HTS Code
    8536507000
  • Protection class
    IP67
  • Electrical connection
    Terminal chamber
  • Ambient temperature
    -25…+70 °C
  • Output function
    NO contact, 2-wire
  • Operating voltage
    10…65 VDC
  • Housing material
    Plastic, PP-GF30, Yellow
  • Mounting
    Non-flush
  • Rated switching distance
    4 mm
  • Design
    Dual sensor for valve monitoring
  • Construction size
    62 x 60 x 35.4 mm, DSU35

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NI4-DSU35TC-2AD4X2 on Powermatic Associates is $320.90. Order now.
