BI5U-EM18E-AN6X Turck Inductive Sensors

Name: BI5U-EM18E-AN6X
Brand: Turck
Price: 153.1 USD
Availability: BackOrder

BI5U-EM18E-AN6X on Powermatic Associates

Part#:BI5U-EM18E-AN6X

Alt. Part#:1635321

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

BI5U-EM18E-AN6X Turck - BI5U-EM18E-AN6X Inductive Sensor

Product Details

Weight
130 g
Country Of Origin
DEU
HTS Code
8536507000
Weight
130 grams
Operating Voltage
10 volts, 30 volts
Country of Origin
Germany
Ambient Temperature
-30 degrees celsius, 85 degrees celsius
Special features
uprox+, Factor 1, Resistant to magnetic fields
Protection class
IP68

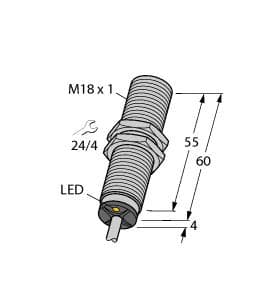

Construction size
M18 x 1
Ambient temperature
-30…+85 °C
Housing material
Stainless steel, 1.4301 (AISI 304)
Cable length (L)
2.0 m
Output function
NO contact, NPN
Operating voltage
10…30 VDC
Electrical connection
Cable
Mounting
Flush
Rated switching distance
5 mm
Design
Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI5U-EM18E-AN6X on Powermatic Associates is $153.10. Order now.

About the product

Inductive Sensor, Rated switching distance 5 mm, Cable length (L) 2 m, Flush, Threaded barrel, M18 x 1, Stainless steel, 1.4301, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection

BI5U-EM18E-AN6X Related Documents

edb_1635321_eng_us.pdf

Manufacturer warranty

BI5U-EM18E-AN6X Turck

$153.10

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$153.10

$153.10 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
