731-636 WAGO Industrial Automation Components

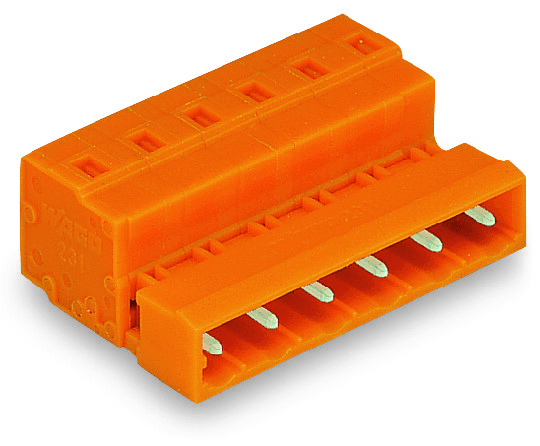

WAGO 731-636 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV across these categories. The rated current is 12A according to IEC/EN standards. Under UL 1059 and UL 1977, it has rated voltages of 300V and 600V, and rated currents of 15A and 10A, depending on the use group. CSA approvals mirror the UL ratings with similar voltage and current specifications. This connector features 6 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including those with insulated or uninsulated ferrules. It has a 6-pole number, a pin spacing of 7.62mm, and dimensions of 46.38mm in width, 14.3mm in height, and 27.5mm in depth. The connector is made from Polyamide (PA66) in orange, with a chrome-nickel spring steel clamping spring, electrolytic copper contacts, and tin plating. It operates within a temperature range of -60 to +100°C, has a fire load of 0.227MJ, and weighs 10.8g. This product is RoHS compliant, packaged in boxes of 50 units, and manufactured in Germany with a GTIN of 4044918268004.
