721-620 WAGO Industrial Automation Components

721-620 on Powermatic Associates
WAGO

Part#:721-620

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

721-620 WAGO - 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 20-pole; 100% protected against mismating; 2,50 mm²; light gray

Product Details

  • Weight
    29.90000786 g
  • Country Of Origin
    Germany
  • HTS Code
    85366990990
  • Width
    103.2 millimeters, 4.063 inches
  • Weight
    29.900 grams
  • Voltage
    300 volts, 320 volts
  • Strip Length
    0.35 inches, 9 millimeters
  • Package Type
    Box
  • Insulation Material
    Polyamide
  • Height
    0.563 inches, 14.3 millimeters
  • Flammability Class
    V0
  • Depth
    1.083 inches, 27.5 millimeters
  • Country of Origin
    Germany
  • Current
    12 amperes, 15 amperes
  • Contact Material
    Copper
  • Contact Type
    Tin
  • Connection Type
    For Conductor
  • Conductor Size
    12 american wire gauge, 2.5 millimeters
  • Color
    Gray
  • Actuator
    Operating Tool

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 721-620 on Powermatic Associates is $18.30. Order now.


About the product

WAGO 721-620 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to electrical ratings per IEC/EN 60664-1, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals include ratings of up to 600V and 15A under specific use groups. This part features 20 connection points, all utilizing CAGE CLAMP connection technology with an operating tool actuation type. It supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific allowances for ferruled conductors. The physical dimensions include a pin spacing of 5mm, width of 103.2mm, height of 14.3mm, and depth of 27.5mm. It offers variable coding, anti-rotation protection, and is made from light gray Polyamide (PA66) with a flammability class of UL94 V0. The connector is designed for a temperature range of -60 to +100°C and comes in a box packaging of 10 pieces, manufactured in Germany with a GTIN of 4044918264846. It complies with RoHS without exemptions.


Manufacturer warranty

721-620 WAGO

$18.30

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$18.30

$18.30 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

Compare 721-620 with other products

Weight

Country Of Origin

HTS Code

Width

Voltage

Strip Length

Package Type

Insulation Material

Height

Flammability Class

Depth

Country of Origin

Current

Contact Material

Contact Type

Connection Type

Conductor Size

Color

Actuator

Selected product

721-620
0 in stock
721-620
WAGO

721-620 WAGO - 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 20-pole; 100% pro...

Weight29.90000786 g

Country Of OriginGermany

HTS Code85366990990

Width103.2 millimeters, 4.063 inc...

Voltage300 volts, 320 volts

Strip Length0.35 inches, 9 millimeters

Package TypeBox

Insulation MaterialPolyamide

Height0.563 inches, 14.3 millimete...

Flammability ClassV0

Depth1.083 inches, 27.5 millimete...

Country of OriginGermany

Current12 amperes, 15 amperes

Contact MaterialCopper

Contact TypeTin

Connection TypeFor Conductor

Conductor Size12 american wire gauge, 2.5 ...

ColorGray

ActuatorOperating Tool

231-634/109-000
7 in stock
231-634/109-000
WAGO

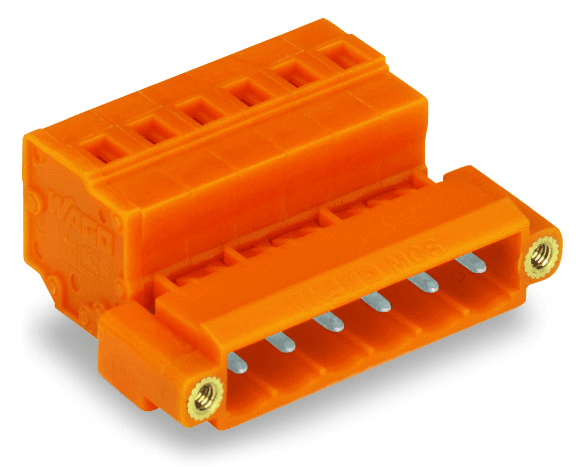

231-634/109-000 WAGO - 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 4-pole...
