721-320/008-000 WAGO Electrical Connector Accessories
Part#:721-320/008-000
Manufacturer:WAGO
Product Lifecycle:Active
Get a quick Quote!

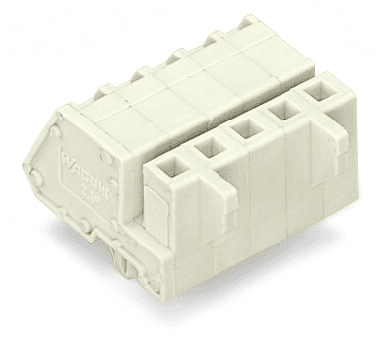

1-conductor female connector, angled; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 20-pole; 100% protected against mismating; Snap-in mounting feet; 2,50 mm²; light gray
About the manufacturer: WAGO is one of the manufacturers that offers Electrical Connector Accessories that you can order at Powermatic Associates site. WAGO is the global leader in spring clamp technology for electrical connections and ranks among the top suppliers of components for industrial and building automation. With 28 companies and 9 production facilities employing around 9,000 people worldwide, we ensure expert advice and close customer relationships.
Check out the 721-320/008-000 WAGO price in the box on the right side or send a quick quote.
Product Details
- Weight 29.2700077 g
- Country Of Origin Poland
- HTS Code 85366990990
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
721-320/008-000 Description
WAGO 721-320/008-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals are included, with ratings varying by use group, including a UL 1977 rating of 600V and 15A. This part features 20 connection points, a single connection type with CAGE CLAMP technology, and supports a conductor size range of 0.08 to 2.5mm2 (28 to 12 AWG). The physical dimensions include a pin spacing of 5mm, a width of 101.5mm, a height of 17.6mm, and a depth of 27.25mm. It is designed with an angled, mountable housing, snap-in foot, feed-through, and panel mounting options, and includes anti-rotation protection. The connector is a female type for conductor connections, with mismating protection but no locking mechanism. Constructed from light gray Polyamide (PA66) with a flammability class of UL94 V0, it features a chrome-nickel spring steel clamping spring, copper alloy contacts with tin plating, and weighs 29.2g. It operates within a temperature range of -60 to +85°C and is RoHS compliant. The product is packaged in boxes of 10 pieces, with a country of origin in Poland and a GTIN of 4044918576192.
