704-2003 WAGO I/O Connectors

704-2003 on Powermatic Associates
WAGO

Part#:704-2003

Manufacturer:WAGO

Product Lifecycle:Active

Get a quick Quote!

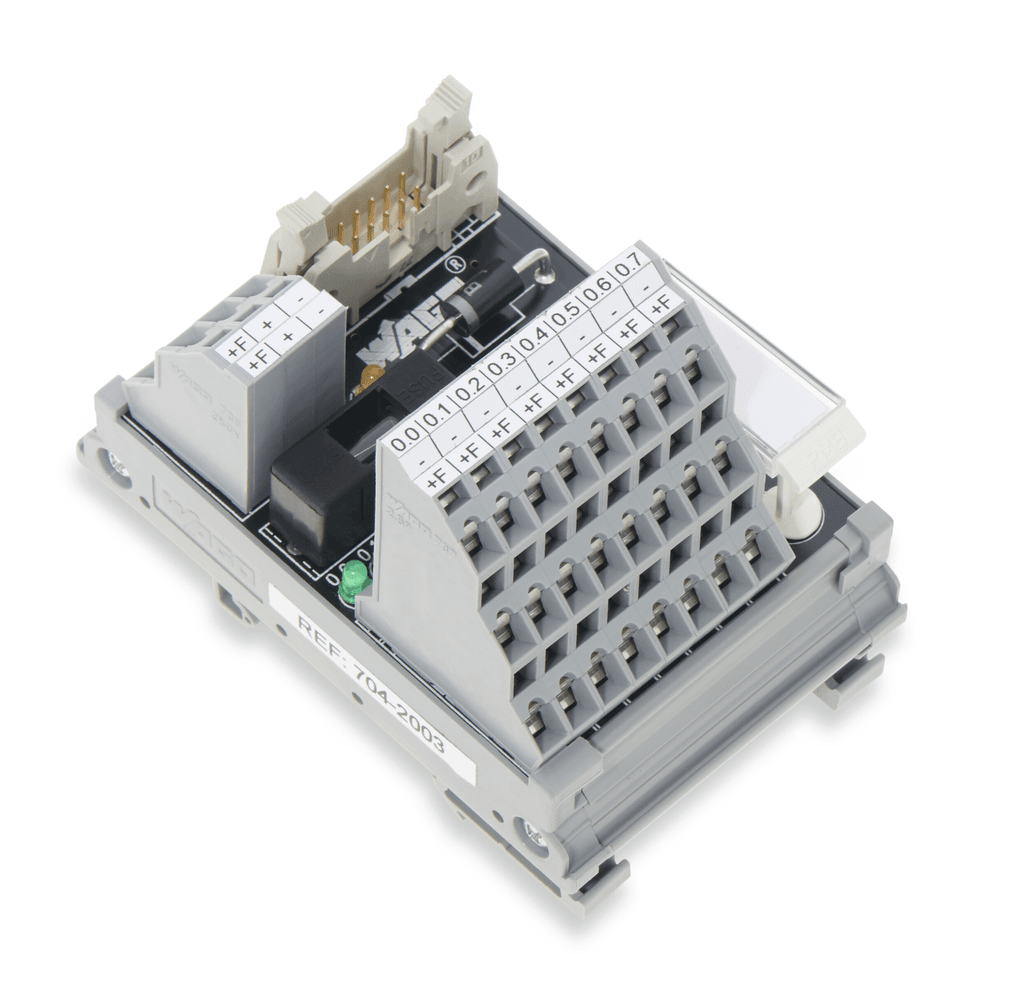

Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 10-pole; 8-channel digital input or output; 3-wire connection; in mounting carrier

About the manufacturer: WAGO is one of the manufacturers that offers I/O Connectors that you can order at Powermatic Associates site. WAGO is the global leader in spring clamp technology for electrical connections and ranks among the top suppliers of components for industrial and building automation. With 28 companies and 9 production facilities employing around 9,000 people worldwide, we ensure expert advice and close customer relationships.

Check out the 704-2003 WAGO price in the box on the right side or send a quick quote.

Product Details

  • Weight
    92.0000242 g
  • Country Of Origin
    France
  • HTS Code
    85369010000
  • Width
    2.205 inches, 56 millimeters
  • Weight
    92.000 grams
  • Package Type
    Box
  • Mounting Type
    DIN-35 Rail
  • Height
    3.346 inches, 85 millimeters
  • At Rated Voltage
    50 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

704-2003 Description

Wago 704-2003 is an interface unit designed for digital inputs or outputs interface module applications. It operates on a supply voltage of 21.6-26.4Vdc with a nominal 24Vdc and does not specify an AC supply voltage. This unit features a DIN 41651 10-pin male connector for system connections, a triple-deck spring cage-clamp 24-pin for 0.08...2.5mm2 cables in the field, and a double-deck spring cage-clamp 6-pin for 0.08...1.5mm2 cables for power supply. It is designed to be mounted in a carrier and can operate in ambient air temperatures ranging from -20°C to +50°C, with storage temperatures from -40°C to +70°C. The unit has a degree of protection suitable for these temperature ranges. It supports 8-channel digital input or output, with 8 x digital inputs (3-wire) and 8 x digital outputs. The status indicator operates at 5mA. The unit is designed for mounting on a DIN-35 rail vertically and has dimensions of H85mm x W56mm x D63mm. It is rated for an insulation voltage of 56mm and can operate in up to 85% relative humidity, non-condensing.
