704-5114 WAGO Industrial Automation Components

704-5114 on Powermatic Associates
WAGO

Part#:704-5114

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

704-5114 WAGO - Interface module for system wiring; Pluggable connector per DIN 41651; 20-pole; 16-channel relay output; 1 changeover contact; PCB terminal blocks; in mounting carrier

Product Details

  • Width
    247 millimeters, 9.724 inches
  • Weight
    325.967 grams
  • Mounting Type
    DIN-35 Rail
  • Package Type
    Box
  • At Rated Voltage
    50 volts
  • Height
    105 millimeters, 4.134 inches
  • Country of Origin
    Germany

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 704-5114 on Powermatic Associates is $864.00. Order now.


About the product

WAGO 704-5114 is a 16-channel relay output module designed for automation applications, featuring a nominal operating voltage of DC 24V with an operating voltage range of +/-10%. It supports a maximum continuous current of 5A per channel and has a switching voltage of up to AC 250V and DC 48V, with a maximum switching power of AC 1250 VA and DC 50W. The module is equipped with one changeover/switchover contact and boasts a mechanical life of 30,000,000 switching operations. Status indicators include a green LED for each channel and a yellow LED for power supply, with internal fuses for both supply (1A) and relay output (5A). It features compatibility with a wide range of systems from Siemens, GE Fanuc, Schneider, Rockwell, Omron, and WAGO's own I/O Systems 750 and 753. Connection options include a DIN 41651 male connector and PCB terminal blocks, with specific connectors for system and field connections. The module measures 247mm in width, 105mm in height, and has a depth of 55mm from the upper edge of the DIN-rail, designed for mounting on a DIN-35 rail. It operates within an ambient temperature range of -25 to +50°C and can be stored in temperatures ranging from -40 to +70°C. The module is RoHS compliant with exemption 7(a), has a fire load of 1.442MJ, and weighs 326g. Its commercial data includes ETIM 8.0 and 7.0 classifications, packaged individually in a box, with a country of origin in Germany and a GTIN of 4055144025620.


This item can ship within 0 day!

Manufacturer warranty

704-5114 WAGO

$864.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$864.00

$864.00 each

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

Compare 704-5114 with other Industrial Automation Components products

Width

Weight

Mounting Type

Package Type

At Rated Voltage

Height

Country of Origin

Selected product

704-5114
Backordered
704-5114
WAGO

704-5114 WAGO - Interface module for system wiring; Pluggable connector per DIN 41651; 20-pole; 16-c...

Width247 millimeters, 9.724 inche...

Weight325.967 grams

Mounting TypeDIN-35 Rail

Package TypeBox

At Rated Voltage50 volts

Height105 millimeters, 4.134 inche...

Country of OriginGermany

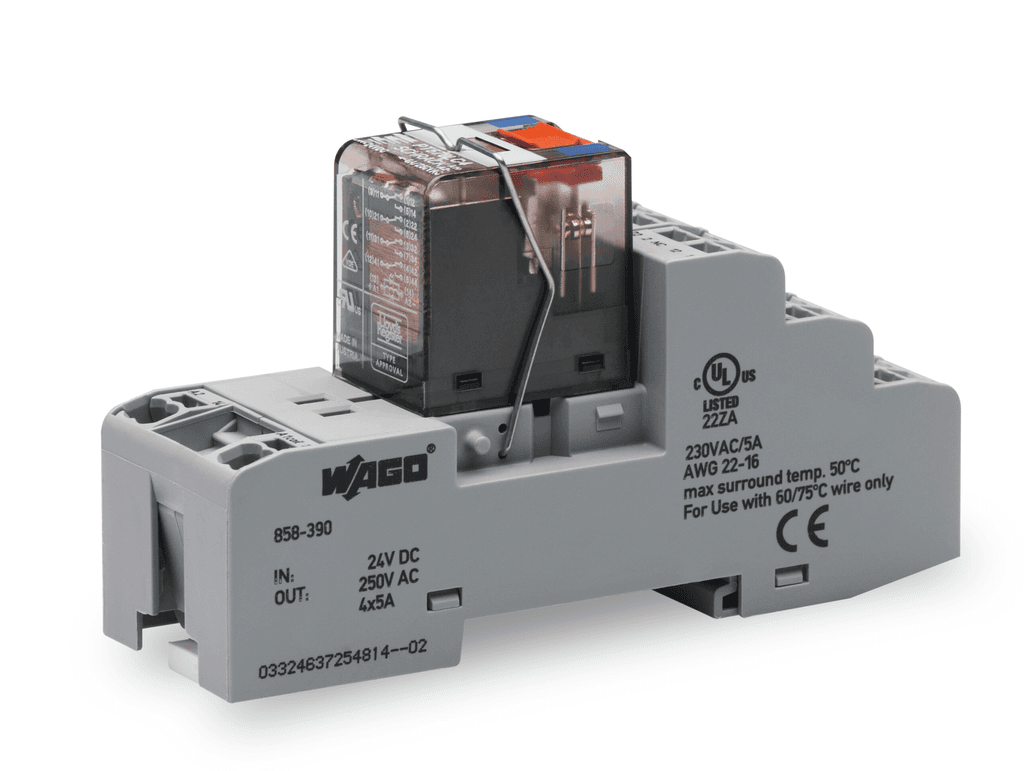

858-390
10 in stock
858-390
WAGO

858-390 WAGO - Relay module; Nominal input voltage: 24 VDC; 4 changeover contacts; Limiting continuo...

Width1.22 inches, 31 millimeters

Weight87.200 grams

Mounting TypeDIN-35 Rail

Package TypeBox

At Rated Voltage300 volts

Height3.819 inches, 97 millimeters

Country of OriginGermany

857-304
57 in stock
857-304
WAGO

857-304 WAGO - Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuou...

Width0.236 inches, 6 millimeters

Weight31.560 grams

Mounting TypeDIN-35 Rail

Package TypeBox

At Rated Voltage300 volts

Height3.701 inches, 94 millimeters

Country of OriginChina

About the manufacturer

WAGO

Powermatic Associates is an authorized WAGO distributor, proud to offer a diverse range of high-quality and innovative industrial automation solutions. As a leading manufacturer, WAGO excels in designing and producing cutting-edge electrical interconnection, automation, and interface electronics technologies. Powermatic Associates leverages WAGO's expertise to provide customers with top-of-the-lin...

Recently viewed products

Relevant products

FAQ

What is the price of 704-5114?
Purchase the 704-5114 from Powermatic Associates at the price of $864.00. Order today.

Out if stock but available for backorder.

704-5114 WAGO - Interface module for system wiring; Pluggable connector per DIN 41651; 20-pole; 16-channel relay output; 1 changeover contact; PCB terminal blocks; in mounting carrier
