WAGO

Part#:260-109

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

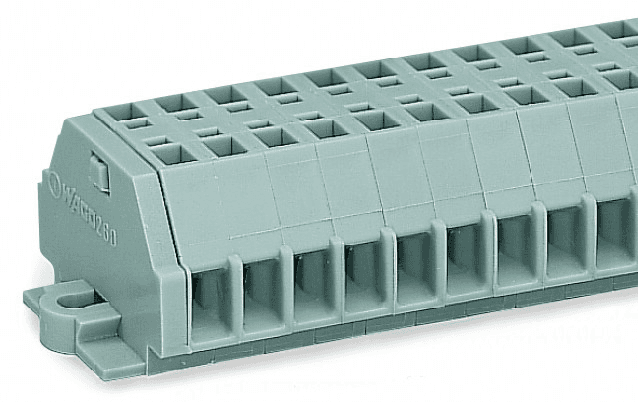

260-109 WAGO - 2-conductor terminal strip; without push-buttons; with fixing flanges; 9-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 1.5 mm²; CAGE CLAMP®; 1,50 mm²; gray

Product Details

  • Weight
    15.32000403 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Weight
    15.320 grams
  • Width
    2.311 inches, 58.7 millimeters
  • Voltage
    400 volts
  • Strip Length
    0.35 inches, 9 millimeters
  • Package Type
    Box
  • Mounting Type
    Mounting Flange
  • Operating Temperature
    105 degrees celsius
  • Insulation Material
    Polyamide
  • Current
    18 amperes
  • Flammability Class
    V0
  • Depth
    0.988 inches, 25.1 millimeters
  • Country of Origin
    Germany
  • Conductor Size
    1.5 millimeters, 16 american wire gauge
  • Conductor Material
    Copper
  • Color
    Gray
  • Actuator
    Operating Tool

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 260-109 on Powermatic Associates is $6.50. Order now.

About the product

Wago 260-109 is a feed-through terminal strip designed for efficient wire connection and distribution. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal strip is rated for an 18A current according to IEC standards and is designed as a single-deck level unit. It has a net height of 6 kV and accommodates a net width for 9 feed-through poles (9P), with a control voltage AC through a 3.2mm fixing hole. The terminal strip is colored gray and has dimensions of H17.1mm x W58.7mm x D25.1mm, making it suitable for 0.08mm^2 to 1.5mm^2 fine stranded or solid conductors, as well as for #28AWG to #16AWG fine stranded or solid conductors. The cross-section is made from Polyamide (PA) 66, ensuring durability and resistance to environmental factors. It supports 18-wires across 9 clamps on both sides (9+9) and is designed to operate at a diameter (IEC) of 400 V.

Similar products from: WAGO Industrial Automation Components

216-106 on Powermatic Associates

216-106

WAGO

216-106 WAGO - Ferrule; Sleeve for 2.5 mm² / AWG 14; uninsulated; electro-tin plated; silver-colored

5 in stock
216-221 on Powermatic Associates

216-221

WAGO

216-221 WAGO - Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white

29 in stock
232-635 on Powermatic Associates

232-635

WAGO

232-635 WAGO - Strain relief housing; for female and male connectors; 2 parts; Pin spacing 5.08 mm; 5-pole; orange

1 in stock
232-633 on Powermatic Associates

232-633

WAGO

232-633 WAGO - Strain relief housing; for female and male connectors; 2 parts; Pin spacing 5.08 mm; 3-pole; orange

10 in stock
734-164/108-000 on Powermatic Associates

734-164/108-000

WAGO

734-164/108-000 WAGO - THT male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Threaded flange; Pin spacing 3.5 mm; 4-pole; light gray

2 in stock
769-410 on Powermatic Associates

769-410

WAGO

769-410 WAGO - Strain relief plate; for female and male connectors; 1 part; Pin spacing 5 mm; 1-pole; gray

4 in stock

This item can ship within 0 day!

Manufacturer warranty

260-109 WAGO

$6.50

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$6.50

$6.50 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 260-109 with other Industrial Automation Components products

Weight

Country Of Origin

HTS Code

Width

Voltage

Strip Length

Package Type

Mounting Type

Operating Temperature

Insulation Material

Selected product

260-109
Backordered
260-109
WAGO

260-109 WAGO - 2-conductor terminal strip; without push-buttons; with fixing flanges; 9-pole; for sc...

Weight15.32000403 g

Country Of OriginGermany

HTS Code85369010000

Width2.311 inches, 58.7 millimete...

Voltage400 volts

Strip Length0.35 inches, 9 millimeters

Package TypeBox

Mounting TypeMounting Flange

Operating Temperature105 degrees celsius

Insulation MaterialPolyamide

260-301
8 in stock
260-301
WAGO

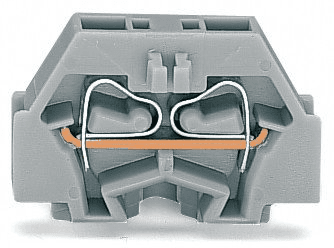

260-301 WAGO - 2-conductor terminal block; without push-buttons; with fixing flange; 1-pole; for scr...
