236-524/000-009/999-950 WAGO Industrial Automation Components

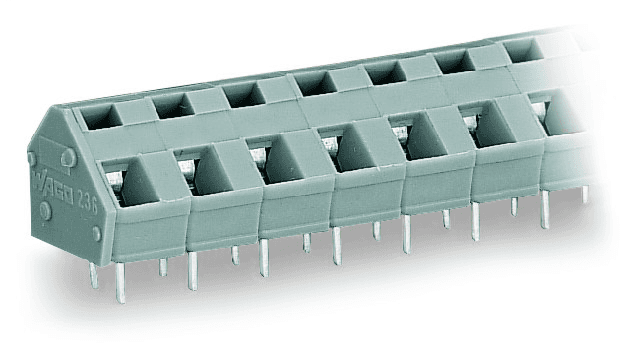

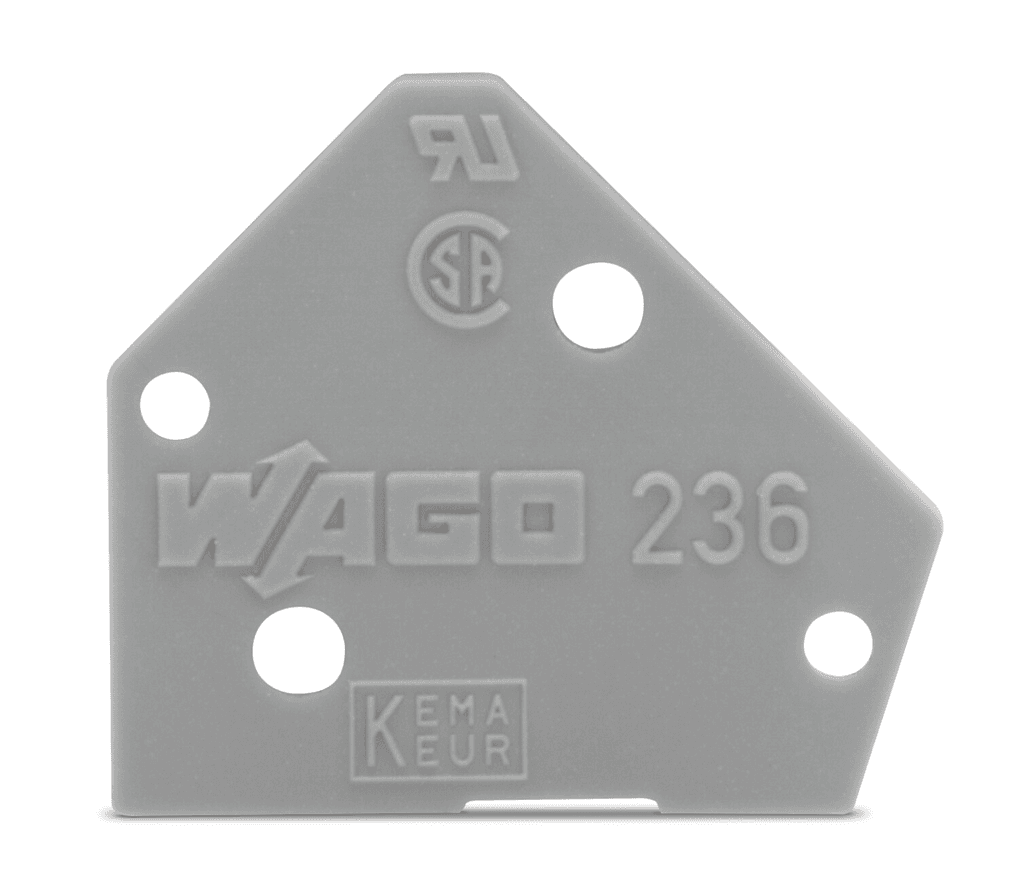

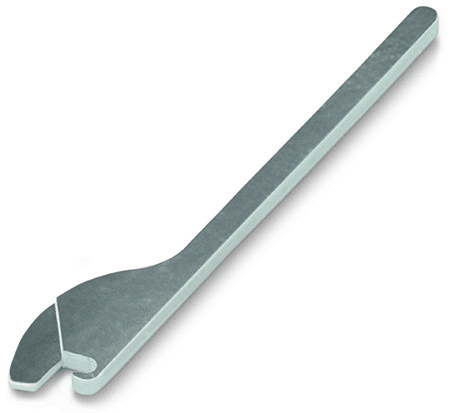

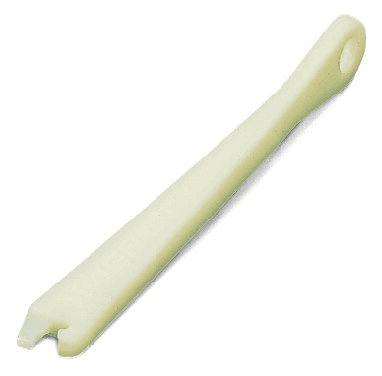

WAGO 236-524/000-009/999-950 is a printed circuit connector with a short circuit breaking rating as per ATEX PTB 06 ATEX 1061 U / IECEx PTB 06.0042 U, rated voltage of 275V EN (Ex e II), and a rated current of 16A (Ex e II). It features 24 connection points, with a total of 24 potentials and one connection type across a single level. The connector employs CAGE CLAMP technology for connections, requiring an operating tool for actuation. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including fine-stranded conductors with both insulated and uninsulated ferrules from 0.25 to 1.5mm2. Notably, it supports 12 AWG THHN; THWN conductors with a strip length of 5 to 6mm (0.2 to 0.24 inches) and a conductor connection direction to PCB at 45 degrees. The unit has a pin spacing of 7.5/7.62mm (0.295/0.3 inches), dimensions of 182.3mm in width, 17mm in height, 14mm in depth, and a height from the surface of 13mm. Solder pin length is 4mm with dimensions of 0.7 x 0.7mm and a drilled hole diameter with tolerance of 1.1 (+0.1)mm. It features THT PCB contact with in-line solder pin arrangement and two solder pins per potential. The connector is light gray, made from Polyamide (PA66) with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel (CrNi) for the clamping spring and Electrolytic Copper (ECu) with tin plating for contacts. It has a fire load of 0.436MJ and weighs 26.2g. Designed to operate within a temperature range of -60 to +105°C, it complies with RoHS without exemptions. Packaged in boxes of 20 (5) pieces, it has a GTIN of 4044918772983 and a customs tariff number of 85369010000, with its country of origin being CH.
