236-405/334-604/997-406 WAGO Industrial Automation Components

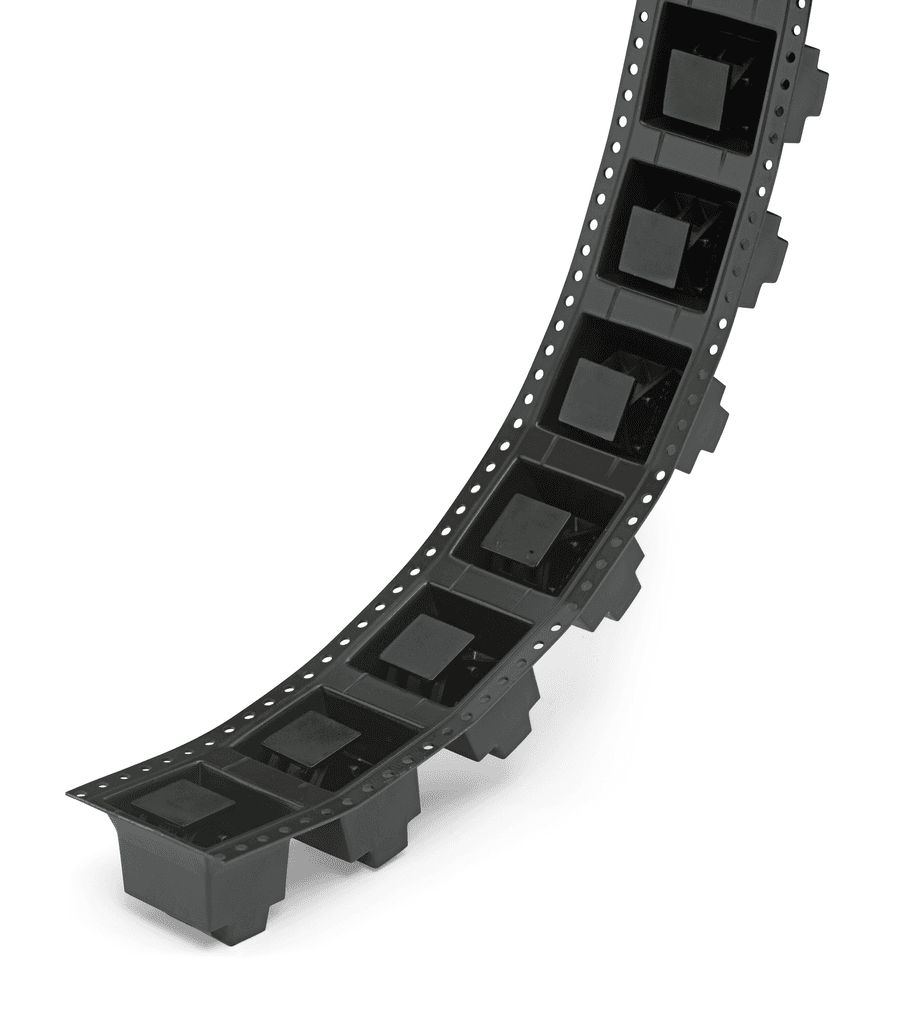

WAGO 236-405/334-604/997-406 is a terminal block designed for PCB mounting with a short circuit breaking rating suitable for lead-free reflow soldering profiles per DIN EN 61760-1 and IEC 60068-2-58, up to a maximum peak temperature of 260°C. It features a nominal voltage of 200V (III/3), 320V (III/2, II/2), rated impulse voltage of 4kV, and a rated current of 24A according to IEC/EN 60664-1 standards. UL ratings include a rated voltage of 300V and rated currents of 15A (Use Group B) and 10A (Use Group D), with CSA ratings mirroring those of UL. The terminal block has 5 connection points, supports a single connection type with one level, and utilizes CAGE CLAMP technology for connections, accommodating solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific provisions for conductors with insulated or uninsulated ferrules. It has a 5mm pin spacing, dimensions of 27.3mm in width, 16.6mm in height, and 14mm in depth, with a solder pin length of 3.6mm. The terminal block is black, made from Polyamide (PA46) with a flammability class of V2, and uses Chrome-Nickel spring steel for the clamping spring and tin-plated Electrolytic Copper for contacts. It weighs 4.6g and operates within a temperature range of -60 to +115°C. The product is RoHS compliant, packaged in boxes of 140 pieces, and has a GTIN of 4055143289924.
