231-584/001-000 WAGO Industrial Automation Components

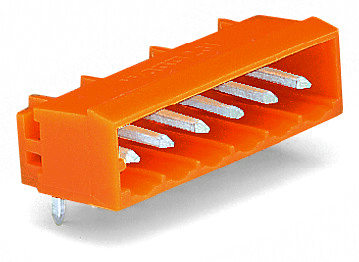

WAGO 231-584/001-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2), rated impulse voltages of 4kV across these categories, and a rated current of 16A. UL and CSA approvals are included, with UL ratings of 300V and 600V under different use groups and corresponding currents of 15A and 10A. It features 24 potentials, a single connection type, and one level, with a pole number of 24. The physical specifications include a pin spacing of 5.08mm, dimensions of 125.04mm in width, 12.2mm in height, and a depth of 12mm, with a solder pin length of 3.8mm. It offers variable coding, anti-rotation protection, and is designed for PCB connection with THT solder pins arranged over the entire male connector. The connector is orange, made from Polyamide (PA66) with a flammability class of UL94 V0, and uses tin-plated Electrolytic Copper for contacts. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 50 pieces, with a weight of 9g per unit, and is manufactured in Poland.
