2092-1352 WAGO Industrial Automation Components

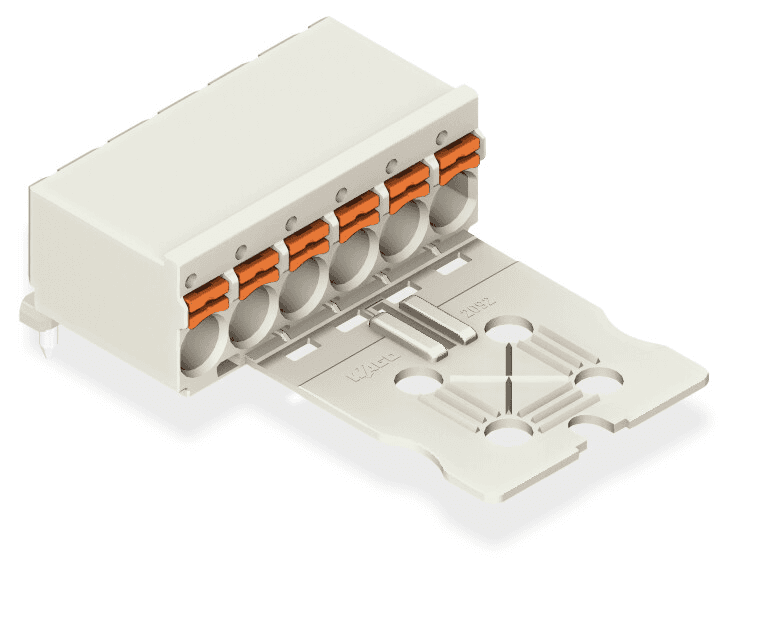

WAGO 2092-1352 is a picoMAX Pluggable Connection System connector designed for PCB applications, featuring a push-in CAGE CLAMP connection with push-button actuation. It supports a nominal voltage of 250V (III/3), 320V (III/2), and 630V (II/2) with a rated impulse voltage of 4kV across these categories and a rated current of 16A according to IEC/EN standards. UL ratings include a voltage of 300V and currents of 15A (Use Group B) and 10A (Use Group D). The connector accommodates 2 connection points, with a single connection type and level, supporting solid and fine-stranded conductors ranging from 0.2 to 2.5mm2 (24 to 12 AWG), including those with insulated or uninsulated ferrules. It has a 2-pole configuration, with a pin spacing of 5mm, dimensions of 10mm in width, 13.4mm in height, and 35.4mm in depth. The solder pin length is 3.6mm with a diameter of 1.4mm. It is designed without variable coding, includes anti-rotation protection, and does not feature mismating protection. The connector is made from light gray Polyphthalamide (PPA GF) with a flammability class of UL94 V0, and chrome-nickel spring steel for the clamping spring. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 100 pieces, with a GTIN of 4050821165347, and is manufactured in Germany.
