Powermatic Associates Logo

2061-901 WAGO Industrial Automation Components

2061-901 on Powermatic Associates
WAGO

Part#:2061-901

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

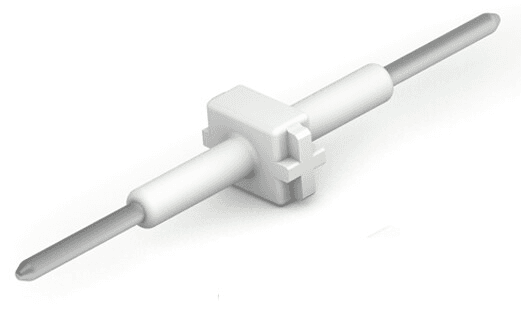

2061-901 WAGO - Board-to-Board Link; Pin spacing 6 mm; 1-pole; Length: 30 mm; white

Product Details

  • Weight
    0.283000074 g
  • Country Of Origin
    China
  • HTS Code
    85369010000
  • Width
    0.224 inches, 5.7 millimeters
  • Voltage
    250 volts
  • Package Type
    Box
  • Insulation Material
    Polyamide
  • Weight
    0.283 grams
  • Height
    0.098 inches, 2.5 millimeters
  • Flammability Class
    V0
  • Depth
    1.181 inches, 30 millimeters
  • Current
    9 amperes
  • Country of Origin
    China
  • Contact Type
    Silver
  • Contact Material
    Copper Alloy
  • Color
    White

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2061-901 on Powermatic Associates is $0.30. Order now.

About the product

WAGO 2061-901 is an SMD PCB terminal block designed for a single potential connection with a pole number of 1. It features a nominal voltage of 250V (III/3), 320V (III/2), and 630V (II/2), with a rated impulse voltage of 4kV across all categories and a rated current of 9A. The part has a pin spacing of 6mm, dimensions of 5.7mm in width, 2.5mm in height, and 30mm in depth, and supports up to 10 mating cycles. It is suitable for use with the 2061 Series SMD PCB terminal blocks. The terminal block is made from white polyamide (PA66) with a flammability class of UL94 V0, copper alloy contacts with silver plating, and weighs 0.3g. It operates within a temperature range of -60 to +105°C. This product is RoHS compliant without exemptions, has a packaging unit of 700 pieces per box, and is manufactured in China with a GTIN of 4055143656856 and a customs tariff number of 85369010000.
