2016-433 WAGO Industrial Automation Components

2016-433 on Powermatic Associates
WAGO

Part#:2016-433

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

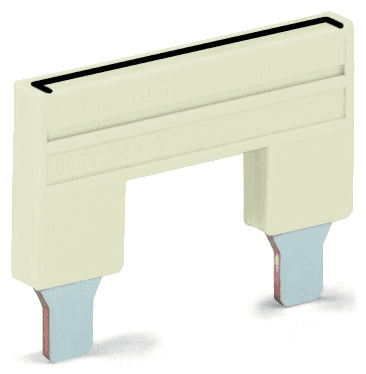

2016-433 WAGO - TOPJOB®S jumper; for 2016 series; insulated; 2-way (1-3); light-gray

Product Details

  • Weight
    6.358001672 g
  • Country Of Origin
    Germany
  • HTS Code
    85366990990
  • Width
    1.315 inches, 33.4 millimeters
  • Weight
    6.358 grams
  • Voltage
    800 volts
  • Depth
    0.906 inches, 23 millimeters
  • Current
    76 amperes
  • Package Type
    Bag
  • Height
    0.161 inches, 4.1 millimeters
  • Country of Origin
    Germany
  • Color
    Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2016-433 on Powermatic Associates is $4.42. Order now.

About the product

Wago 2016-433 is an insulated push-in type comb-style jumper bar designed for use in the TOPJOB S series. It features a rated current of 76A and is capable of accommodating connections from 1 to 3 poles (3P) with a net width of 3 mm. The part is designed with dimensions of H4.1mm x W33.4mm x D23mm, indicating its compact size for efficient use in various applications. It operates with a voltage rating of up to 800 V, suitable for a wide range of electrical installations. The color of the part is light gray, facilitating its integration into various design aesthetics without compromising functionality.
