Powermatic Associates Logo

2002-1307 WAGO Industrial Automation Components

2002-1307 on Powermatic Associates
WAGO

Part#:2002-1307

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Only 5 left in stock. Order Now!

Apr 18, 2025

Product description

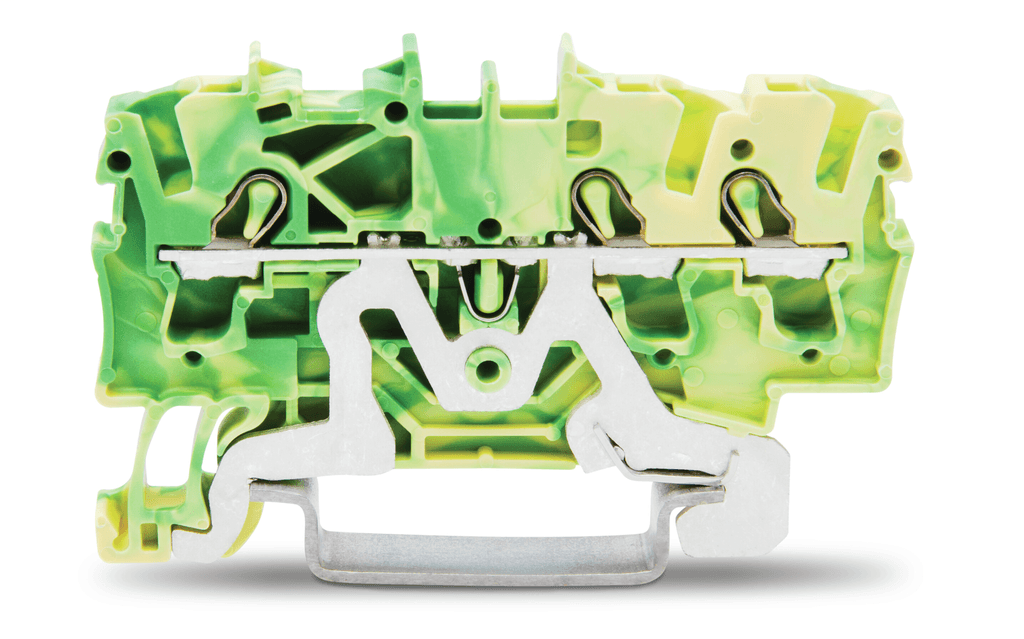

2002-1307 WAGO - TOPJOB®S ground terminal block; rail mount; 3-conductor; 5.2 mm wide; green-yellow

Product Details

  • Weight
    9.130002401 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Width
    0.205 inches, 5.2 millimeters
  • Weight
    9.130 grams
  • Strip Length
    0.47 inches, 12 millimeters
  • Package Type
    Box
  • Operating Temperature
    105 degrees celsius
  • Mounting Type
    DIN-35 Rail
  • Insulation Material
    Polyamide
  • Height
    2.33 inches, 59.2 millimeters
  • Country of Origin
    Germany
  • Flammability Class
    V0
  • Conductor Size
    12 american wire gauge, 4 millimeters
  • Conductor Material
    Copper
  • Color
    Green, Yellow
  • Actuator
    Operating Tool

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2002-1307 on Powermatic Associates is $6.58. Order now.

About the product

Wago 2002-1307 is a ground/earthing terminal block featuring push-in CAGE CLAMP spring connections. It is designed with a single deck/level, including side and center marking slots, and is suitable for Ex e II applications. This terminal has a rated impulse voltage (Uimp) of 5.2 mm and a net width for 1 grounding / protective-earth (1PE). It is compatible with DIN-35 rail mounting (35 x 15 / 35 x 7.5) and exhibits a green-yellow color for easy identification. The terminal's dimensions are H59.2mm x W5.2mm x D32.9mm, accommodating 0.25mm2 to 4mm2 fine stranded or solid conductors and #22AWG to #12AWG fine stranded or solid conductors with a 2.5mm2 nominal cross-section. The material used is Polyamide (PA) 66. It supports 3-wires (1 push-in + 2 push-in) (1+2) connections and is part of the TOPJOB S series.
