TX700S-P3WV01 Turck Network Gateways

Name: TX700S-P3WV01
Brand: Turck

Turck TX700S-P3WV01 TX700S-P3WV01 TX700 HMI/PLC Series, Single-Core IOT Gateway — CODESYS V3 PLC with WEB VISU, DIN Rail Device for the Control Cabinet

Part#:TX700S-P3WV01

Manufacturer:Turck

Alt. Part#:100009353

Product Lifecycle:Active

Get a quick Quote!

TX700S-P3WV01 TX700 HMI/PLC Series, Single-Core IOT Gateway — CODESYS V3 PLC with WEB VISU, DIN Rail Device for the Control Cabinet

About the manufacturer: Turck is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TX700S-P3WV01 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
940 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TX700S-P3WV01 Description

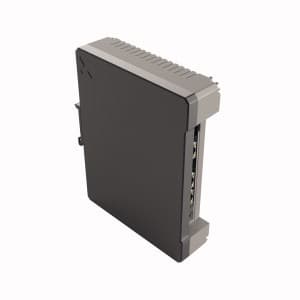

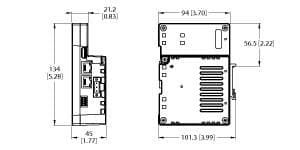

Turck TX700S-P3WV01 is a gateway belonging to the TX series, designed with CODESYS V3 P.L.C. runtime WebVisu. This single-core IIoT gateway features 3 x RJ45 connectors for Ethernet 10/100Mbit, 1 x serial interface port supporting RS-232 / RS-485 / RS-422, 2 x USB host ports, and 1 x SD card slot for connectivity options. It operates on a supply voltage of 10-32Vdc, with 24Vdc nominal, and can be mounted on a DIN rail. The ambient air temperature for operation ranges from -20 to +60 °C. It has a memory capacity of 4GB (FLASH) and 512MB (RAM), with a degree of protection rated at IP20. The net dimensions are 45 mm in width, 134 mm in height, and 102 mm in depth. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, CANopen, and Modbus RTU.
