TX700Q-P3WV01 Turck Network Gateways

Turck TX700Q-P3WV01 TX700Q-P3WV01 TX700 HMI/PLC Series, Quad-Core IOT Gateway — CODESYS V3 PLC with WEB VISU, DIN Rail Device for the Control Cabinet
Turck

Part#:TX700Q-P3WV01

Manufacturer:Turck

Alt. Part#:100009355

Product Lifecycle:Active

Get a quick Quote!

TX700Q-P3WV01 TX700 HMI/PLC Series, Quad-Core IOT Gateway — CODESYS V3 PLC with WEB VISU, DIN Rail Device for the Control Cabinet

About the manufacturer: Turck is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TX700Q-P3WV01 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1087 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TX700Q-P3WV01 Description

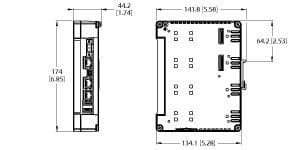

Turck TX700Q-P3WV01 is a gateway belonging to the TX series, featuring a CODESYS V3 P.L.C. runtime WebVisu design. This quad-core IIoT gateway is equipped with multiple connection options including 3 x RJ45 connectors for Ethernet 10/100Mbit, 1 x serial interface port supporting RS-232, RS-485, and RS-422, 2 x USB host ports, and 1 x SD card slot. It operates on a supply voltage of 10-32Vdc, with 24Vdc nominal, and is designed for DIN rail mounting. The gateway can operate in ambient air temperatures ranging from -20 to +60 °C. It has a memory capacity of 8GB (FLASH) and 2GB (RAM), and offers a degree of protection of IP20. The net dimensions are 44 mm in width, 174 mm in height, and 144 mm in depth. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, CANopen, and Modbus RTU.

Related documents TX700Q-P3WV01 Specs

TX700Q-P3WV01 edb_100009355_eng_us.pdf
