TW-BV10X1.5-19-K2 Turck RFID Tags

Turck TW-BV10X1.5-19-K2 TW-BV10X1.5-19-K2 HF Tag
Turck

Part#:TW-BV10X1.5-19-K2

Manufacturer:Turck

Alt. Part#:6901382

Product Lifecycle:Active

Get a quick Quote!

TW-BV10X1.5-19-K2 HF Tag

About the manufacturer: Turck is one of the manufacturers that offers RFID Tags that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TW-BV10X1.5-19-K2 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    19 g
  • Temperature outside detection range
    -45…+85 °C
  • Temperature during read/write access
    -25…+85 °C
  • Active area material
    Plastic, PA6.6, yellow
  • Protection class
    IP67/IP69K
  • Housing material
    Stainless steel, 1.4435 (AISI 316L)
  • Freely usable memory
    2000  Byte
  • Mounting
    On metal
  • Memory
    2048  Byte
  • Housing diameter
    Ø  10  mm
  • Design
    Hard tag with thread
  • Memory type
    FRAM
  • Technology
    HF (13.56 MHz)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TW-BV10X1.5-19-K2 Description

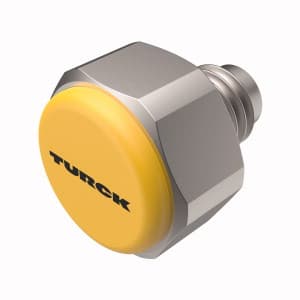

Turck TW-BV10x1.5-19-K2 is an RFID tag within the RFID tags (HF) series, designed as an M10 bolt tag with unlimited reads/writes capability. This RFID HF identification tag/transponder features a stainless steel housing with a head diameter of 17.5mm and overall dimensions of D17.5mm. It operates within an ambient air temperature range of -25 to +85°C and boasts a memory capacity of 2kBytes (FRAM). The tag is designed to withstand harsh environments, evidenced by its IP67 and IP69K degree of protection, and operates at a transmission frequency of 13.56 MHz (HF).

Related documents TW-BV10X1.5-19-K2 Specs

TW-BV10X1.5-19-K2 English.pdf
