TBEN-S1-8DXP Turck I/O Modules

TBEN-S1-8DXP on Powermatic Associates
Turck

Part#:TBEN-S1-8DXP

Manufacturer:Turck

Alt. Part#:6814023

Product Lifecycle:Active

Get a quick Quote!

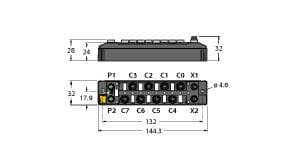

TBEN-S1-8DXP Compact Multiprotocol I/O Module for Ethernet, 8 Universal Digital Channels, Configurable as PNP Inputs or 2 A Outputs

About the manufacturer: Turck is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TBEN-S1-8DXP Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    215 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536908530
  • Weight
    215 grams
  • Ambient Temperature
    -40 degrees celsius, 70 degrees celsius
  • Country of Origin
    Germany
  • Ambient temperature
    -40…+70 °C
  • Protection class
    IP65/IP67/IP69K
  • Approvals
    cULus
  • Product Family
    TBEN-S
  • Connection technology signal
    M8
  • Signal type
    Digital input, Digital input/output, Digital output
  • Device type
    I/O Module, Compact station, Field Logic Controller (ARGEE)
  • Fieldbus Protocol
    Modbus TCP, EtherNet/IP, PROFINET

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TBEN-S1-8DXP Description

Compact Multiprotocol I/O Module for Ethernet, 8 Universal Digital Channels, Configurable as PNP Inputs or 2 A Outputs, , PROFINET device, EtherNet/IP device or Modbus TCP slave, Integrated Ethernet switch, Supports 10 Mbps / 100 Mbps, 2x M8, 4-pin, Ethernet fieldbus connection, Glass fiber reinforced housing, Shock and vibration tested, Fully potted module electronics, Protection classes IP65, IP67, IP69K, 4-pin M8 male connector for power supply, Galvanically isolated voltage groups, ATEX Zone 2/22, Input diagnostics per group, Max. 2 A per output, Output diagnostics per channel, One freely selectable digital channel per port, Programmable ARGEE

Related documents TBEN-S1-8DXP Specs

TBEN-S1-8DXP English-1630969215623.pdf

Manufacturer warranty

$403.00

Request a quote, and we will send availability within minutes.

Select Qty:

$403.00

$403.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
