TB-8M8Z-3-3-BSM14 Turck I/O Junction Boxes

Name: TB-8M8Z-3-3-BSM14
Brand: Turck
Price: 186.1 USD
Availability: BackOrder

TB-8M8Z-3-3-BSM14 on Powermatic Associates

Part#:TB-8M8Z-3-3-BSM14

Alt. Part#:100009117

Manufacturer:Turck

Category:I/O Junction Boxes

Product Lifecycle:Active

Product description

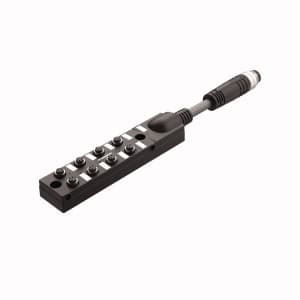

TB-8M8Z-3-3-BSM14 Turck - TB-8M8Z-3-3-BSM14 Junction Box - Actuator/Sensor, 8-port, M8, 3 pole I/O port with cable homerun

Product Details

RoHS
Yes
Country Of Origin
MEX
HTS Code
8536908530
Homerun Type
M16 x 1 with cable
Approvals
CE, RoHS
Design port
M16 × 0.75
Voltage
30 volts
Housing material
Plastic, PA 6 GF30
Number of ports
8
Homerun Exit Location
Side exit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TB-8M8Z-3-3-BSM14 on Powermatic Associates is $186.10. Order now.

About the product

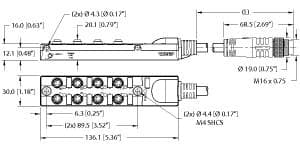

Junction Box - Actuator/Sensor, 8-port, M8, 3 pole I/O port with cable homerun, Cable length (L) 3 m, Housing material: Nylon, Housing color: Black, Fully encapsulated, Protection class: IEC: IP67, CE compliant, RoHS compliant, I/O port: 3-pin, General Purpose Cable, Black PVC jacket, shielded, 12X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Cable length: 3 m
