RK 4.5T-6 Turck Cordsets

Name: RK 4.5T-6
Brand: Turck
Price: 45 USD
Availability: InStock

Turck RK 4.5T-6 RK 4.5T-6 Actuator and Sensor Cordset, Connection Cable

Part#:RK 4.5T-6

Manufacturer:Turck

Alt. Part#:U2189

Product Lifecycle:Active

In-stock parts: 5

Sep 28, 2024

RK 4.5T-6 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RK 4.5T-6 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
295 g
Cable length (L)
6.0 m
Cable Jacket Color
Gray
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Cable Jacket Material
PVC
Voltage
250 V
Current
4 A
Material coupling/housing A
Brass
Connector A - Style
Straight, Female
Connector A
M12 × 1
Application
Actuator and Sensor
Number of Conductors
5
Connector A - Number of Pins
5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RK 4.5T-6 Description

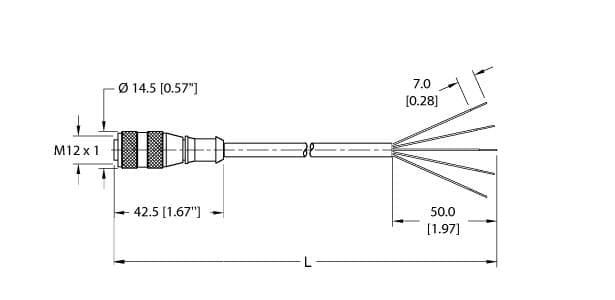

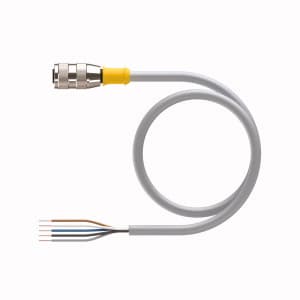

Turck RK 4.5T-6 is a single-ended mating cable/cordset designed for automation applications, featuring a 5-pin M12 eurofast female connector with T-barb fitting to bare end flying leads. This cable is 6 meters in length and has a gray PVC jacket with BN/WH/BU/BK/GY colored wires and a nickel-plated brass coupling nut. It supports a rated current of 4A and a rated voltage of 250Vac. The cable sheath has an outer diameter of 5.7mm. It offers a degree of protection rated at IP68 and NEMA 1, 3, 4, 6P, making it suitable for various environmental conditions. The cable includes a 5-wire circuit with a cross-section of 5 x #22AWG.
