RI240P2-QR20-LU4X2-0.24-AMP01-3P Turck Encoders
Part#:RI240P2-QR20-LU4X2-0.24-AMP01-3P
Manufacturer:Turck
Alt. Part#:100001843
Product Lifecycle:Active
Get a quick Quote!

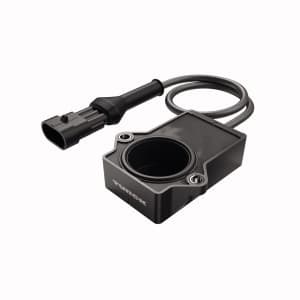

RI240P2-QR20-LU4X2-0.24-AMP01-3P Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI240P2-QR20-LU4X2-0.24-AMP01-3P Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 1000 g
- Ambient temperature -40…+85 °C
- Protection class IP68/IP69K
- Housing material Plastic, Ultem
- Cable length (L) 0.240 m
- Electrical connection Cable with connector, AMP Superseal
- Voltage output 0.5…4.5 V
- Output function Analog output
- Operating voltage 8…30 VDC
- Measuring range -120…120°
- Shaft Type Blind hole shaft
- Flange type Flange without mounting element
- Construction size 71.6 x 62.6 x 20 mm
- Shaft diameter D [mm] 6 mm6.35 mm
- Output type Absolute singleturn
- Technology Contactless
- Encoder line Premium-Line
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI240P2-QR20-LU4X2-0.24-AMP01-3P Description
Turck RI240P2-QR20-LU4X2-0.24-AMP01-3P is a contactless rotary inductive angle sensor designed for measuring angular positions between 0° and +240°. It operates within an ambient air temperature range of -25 to +85°C and is housed in a washdown-resistant, blind hole shaft design made from Plastic Ultem, ensuring durability in challenging environments. This sensor is part of the Q-track QR20 series and features a compact rectangular shape with dimensions of H63mm x W72mm x D20mm. It offers a high degree of protection with ratings of IP68 and IP69K, suitable for applications requiring high resistance to dust and moisture. The sensor is pre-wired with a 24cm pigtail terminated with a 3-pin connector for easy installation. It operates on a supply voltage range of 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and has a low current consumption of 100mA. The sensor provides a single analog output (0.5Vdc-4.5Vdc) with a resolution of ≤0.09° or 12-bit resolution, ensuring precise measurement. It features a 1/4" bore size and includes protection functions against short-circuit and reverse polarity. The device also offers a visual position indicator through a green LED for multifunction and power ON indication, and it has a high sampling rate of 800Hz for timely data collection.
Related documents RI240P2-QR20-LU4X2-0.24-AMP01-3P Specs
