RI20P2-QR20-LU4X2 Turck Industrial Automation Components

RI20P2-QR20-LU4X2 on Powermatic Associates
Turck
  • RI20P2-QR20-LU4X2
  • RI20P2-QR20-LU4X2

Part#:RI20P2-QR20-LU4X2

Alt. Part#:100001830

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

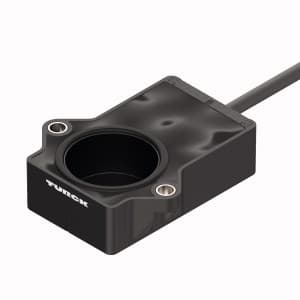

RI20P2-QR20-LU4X2 Turck - RI20P2-QR20-LU4X2 Miniature Encoder, With Analog Output, Premium Line

Product Details

  • Weight
    1000 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Weight
    1000 grams
  • Country of Origin
    Germany
  • Operating Voltage
    30 volts, 8 volts
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius
  • Ambient temperature
    -40…+85 °C
  • Protection class
    IP68/IP69K
  • Housing material
    Plastic, Ultem
  • Electrical connection
    Cable
  • Flange type
    Flange without mounting element
  • Shaft diameter D [mm]
    6  mm6.35  mm
  • Output type
    Absolute singleturn
  • Encoder line
    Premium-Line
  • Voltage output
    0.5…4.5 V
  • Cable length (L)
    2.0  m
  • Operating voltage
    8…30 VDC
  • Construction size
    71.6 x 62.6 x 20 mm
  • Output function
    Analog output
  • Shaft Type
    Blind hole shaft
  • Measuring range
    -10…10°
  • Technology
    Contactless

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI20P2-QR20-LU4X2 on Powermatic Associates is $165.70. Order now.

About the product

Miniature Encoder, With Analog Output, Premium Line, Cable length (L) 2 m, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P2-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature changes, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, , 3‐wire, 8…30 VDC, Analog output 0.5…4.5 V, Output 5 V (typ.) where there is no RLC coupling
